Electronic Throttle Actuator: Locations

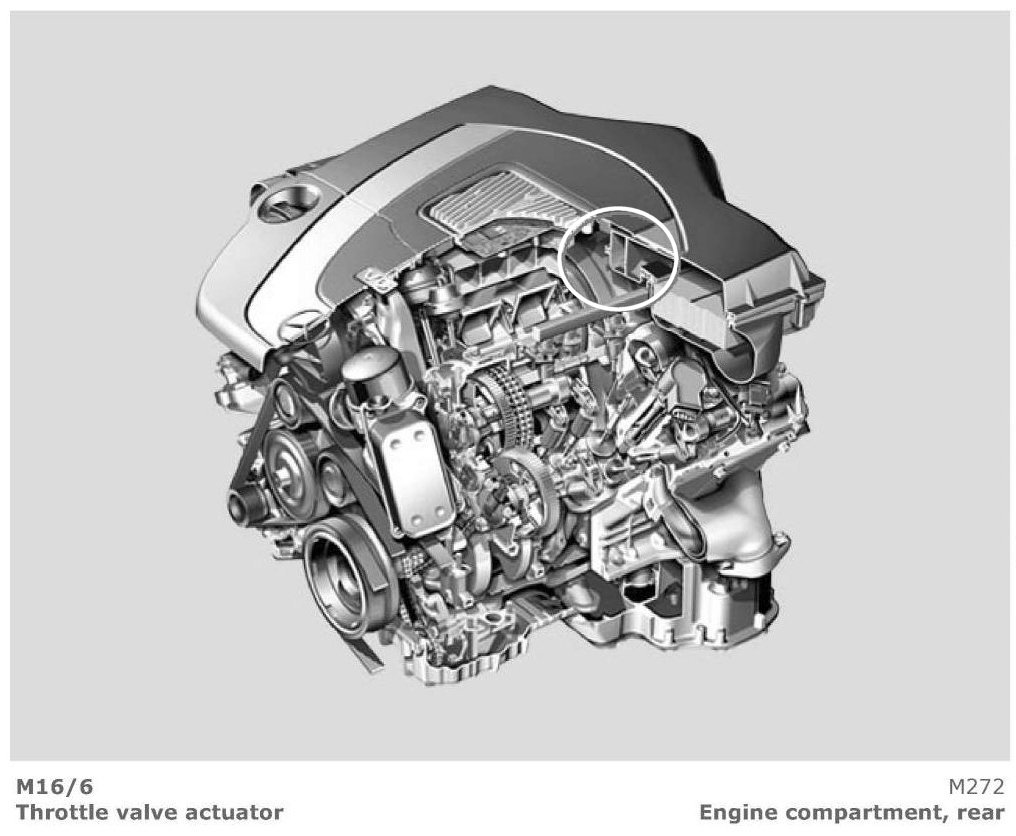

Throttle Valve Actuator (View 1):

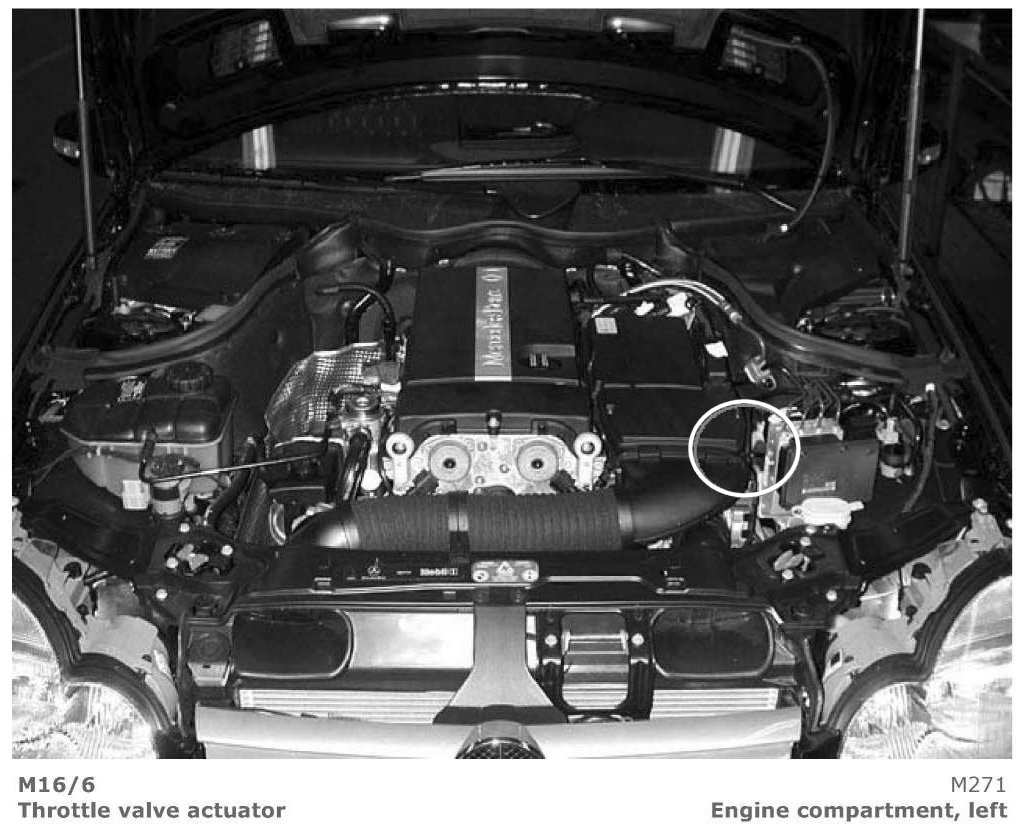

Throttle Valve Actuator (View 2):

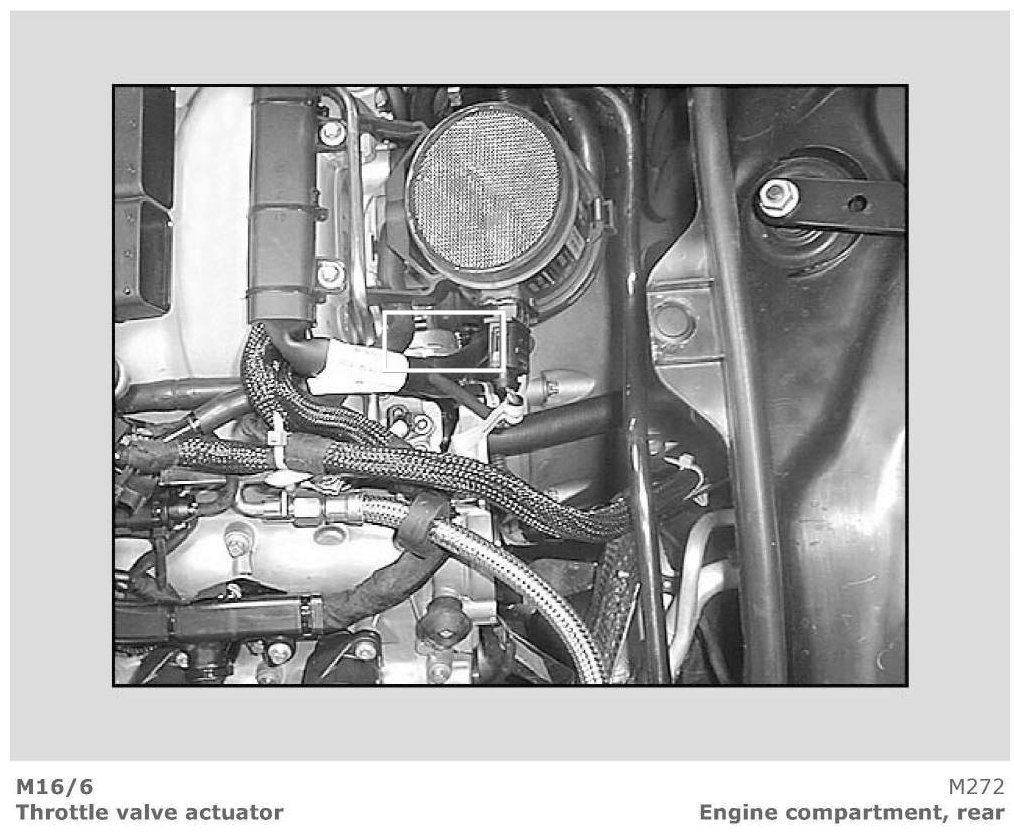

Throttle Valve Actuator (View 3):

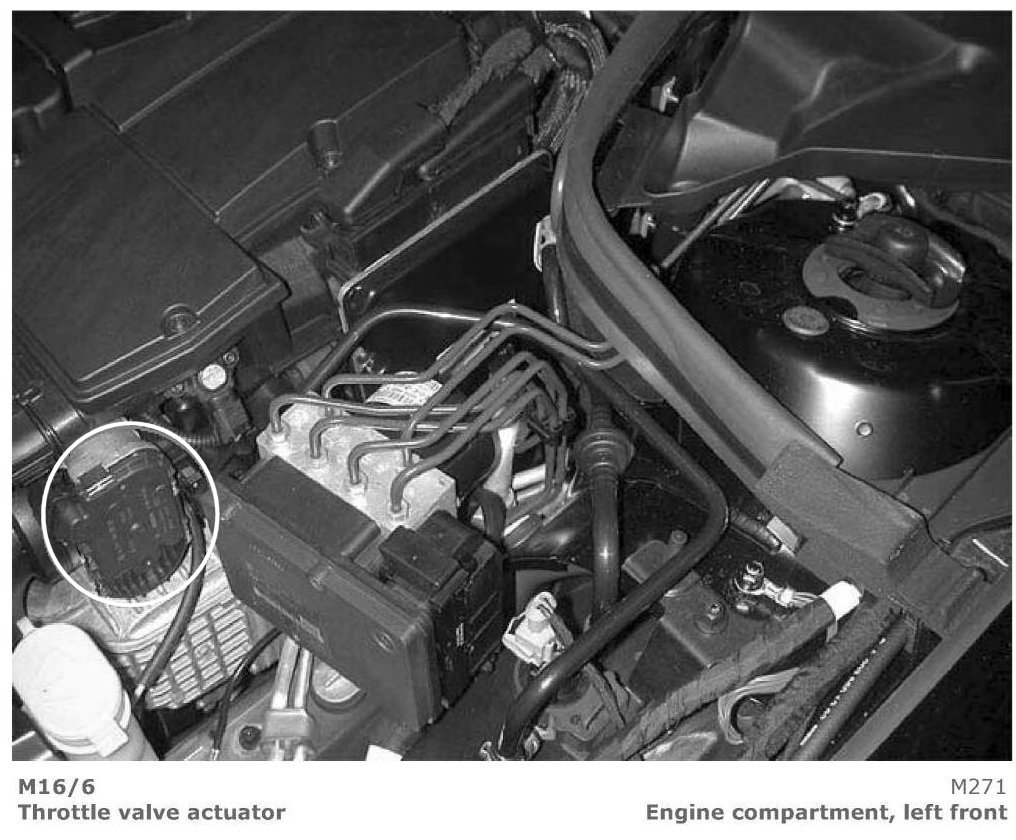

Throttle Valve Actuator (View 4):

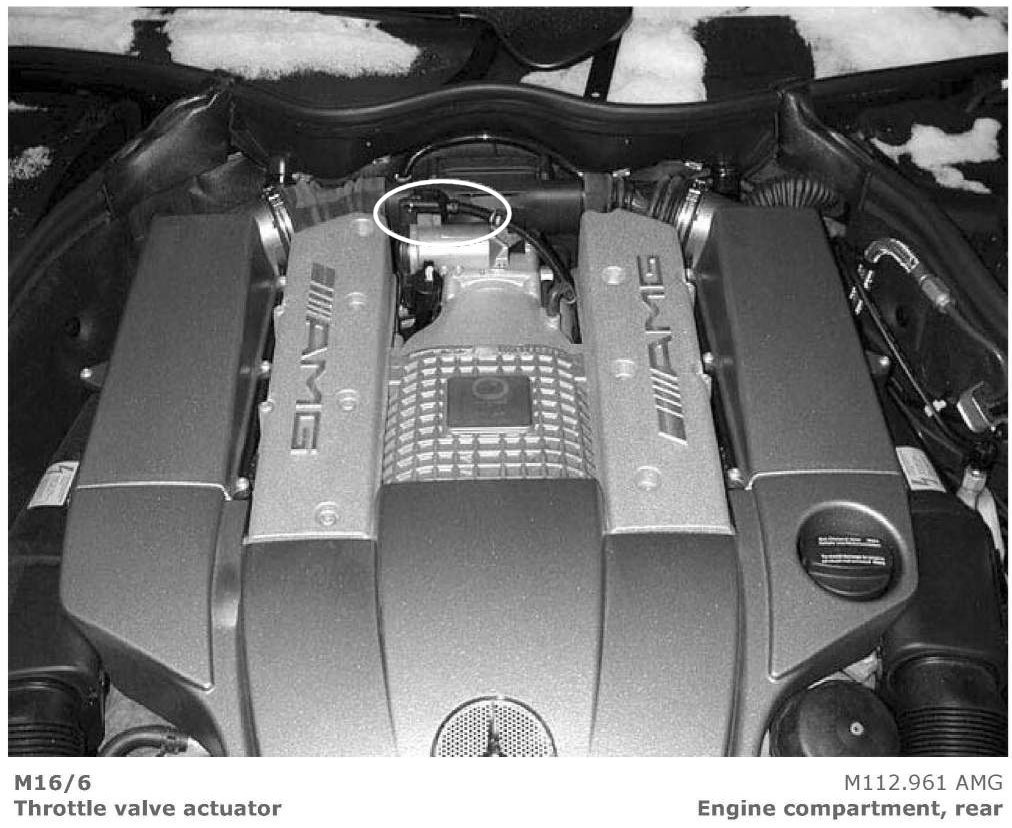

Throttle Valve Actuator (View 5):

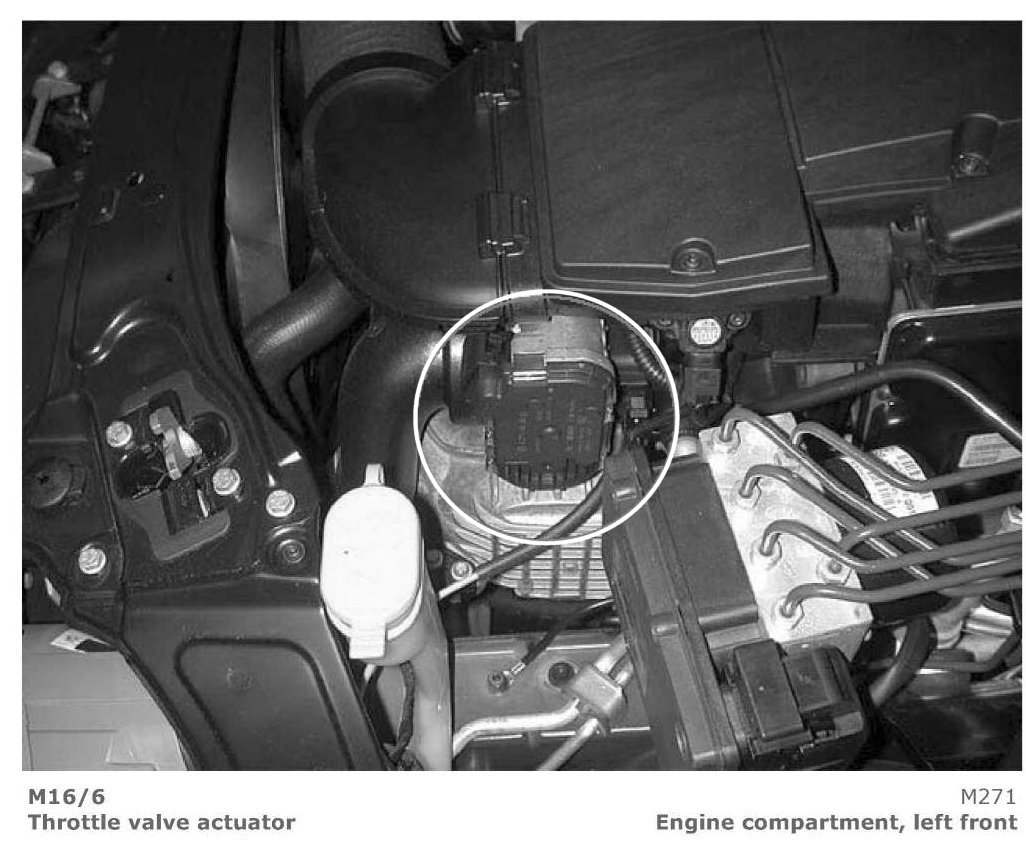

Throttle Valve Actuator (View 6):
