Locations
>>
Splice Locations
>>

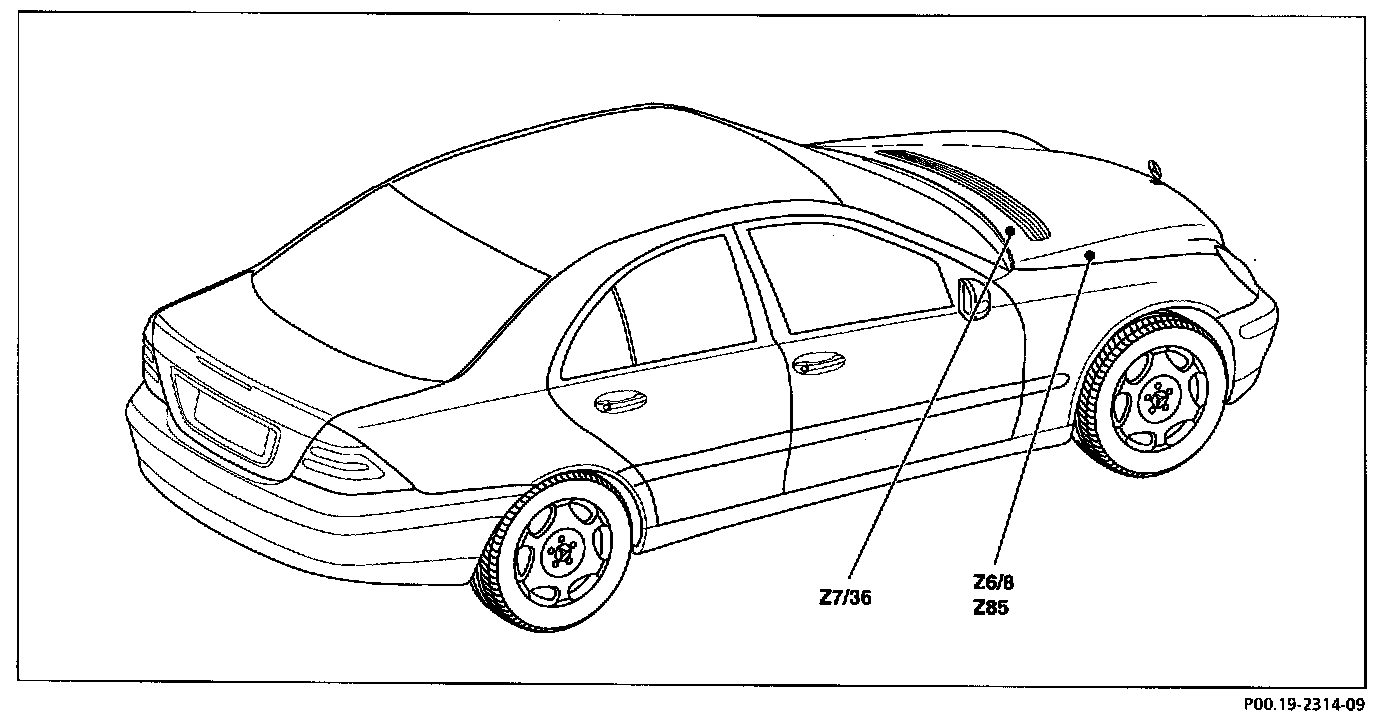

B3.2 - Engine Compartment (Right)
B3.2 - Engine Compartment (Right)

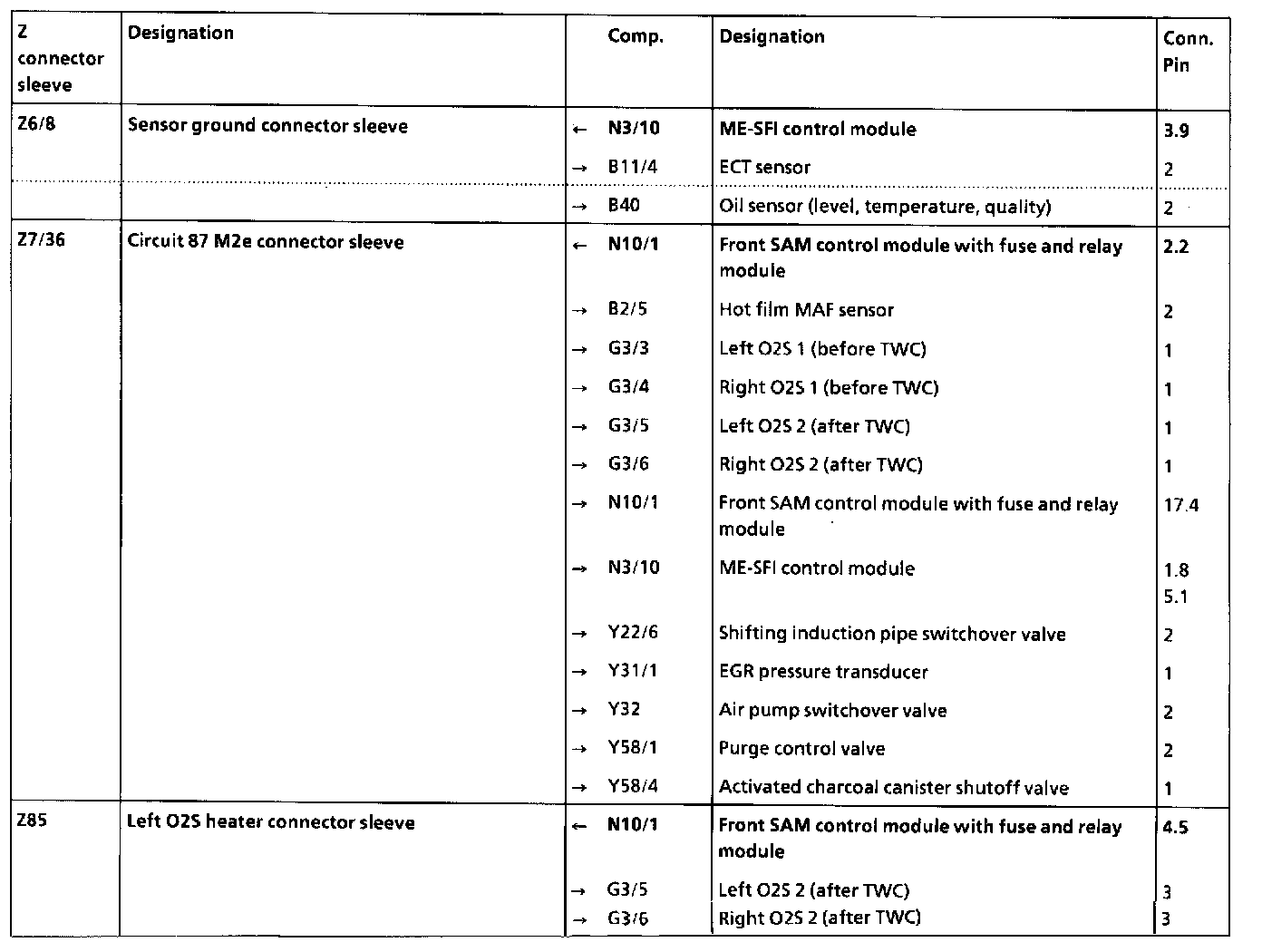

Z6/8 - Z85:
