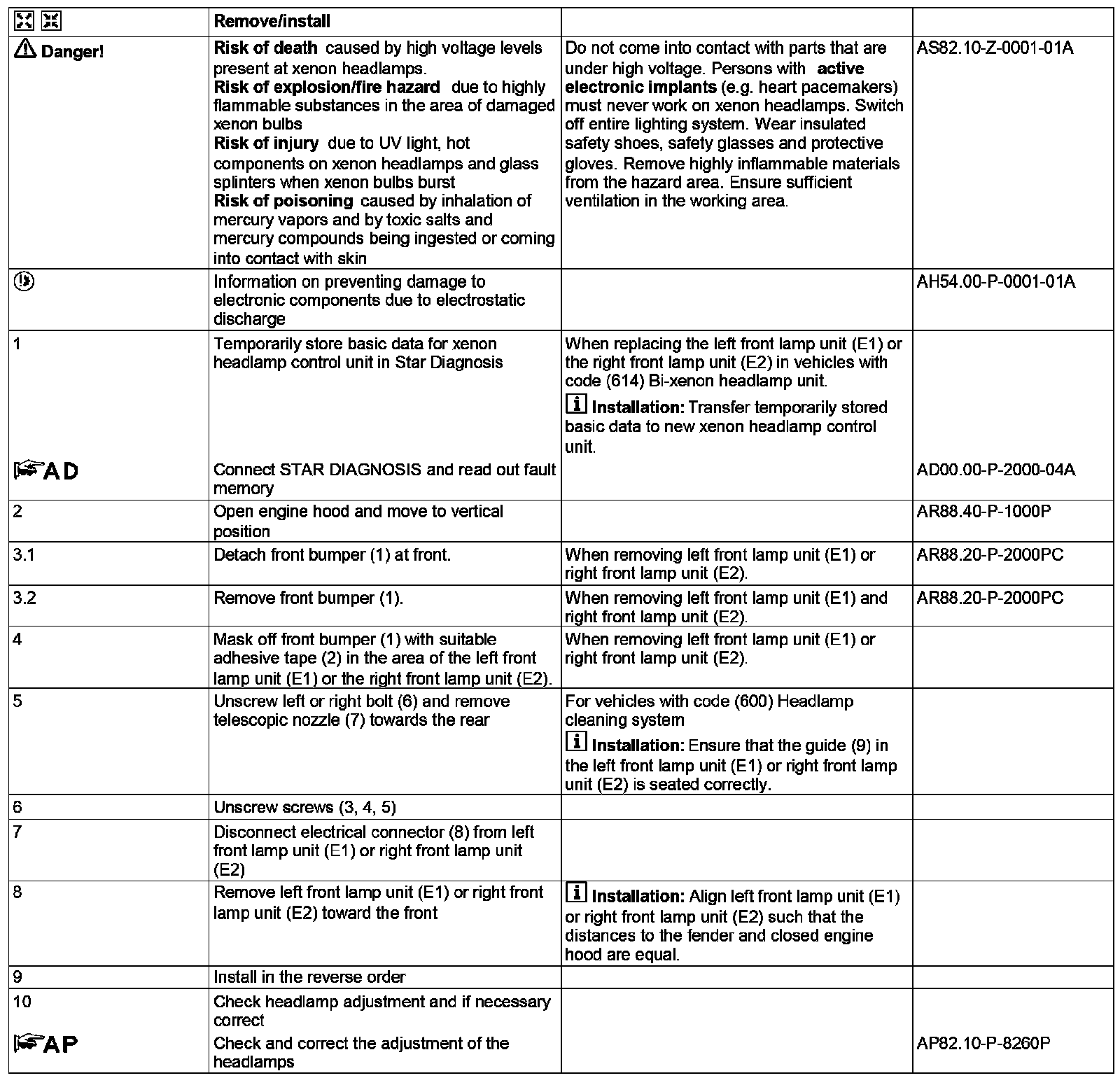

AR82.10-P-4730PC Remove/Install Lamp Unit




AR82.10-P-4730PC Remove/install Lamp Unit
- MODEL 203.7## #E
- with CODE (809) Model year 2009

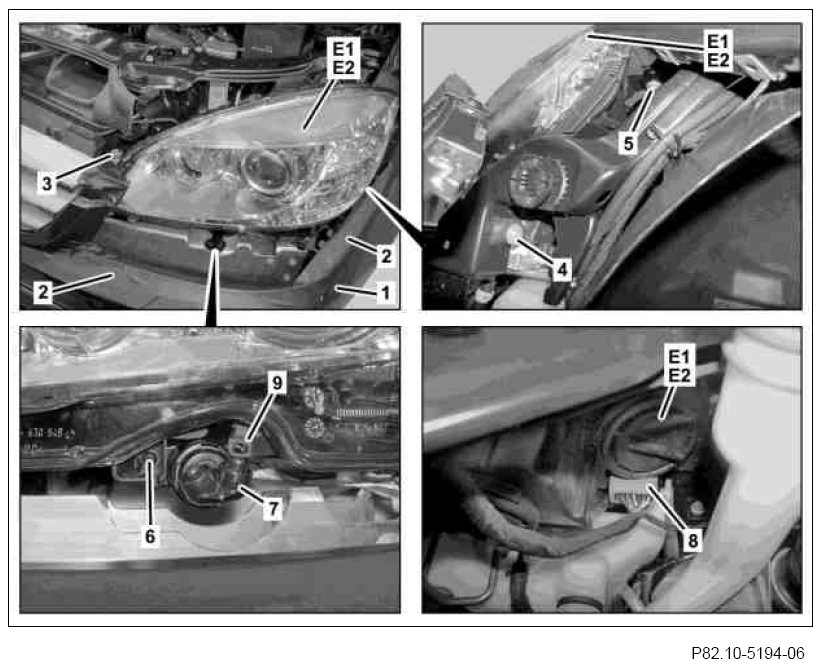

Shown with code (600) Headlamp cleaning system






1 Front bumper
2 Adhesive tape
3 Screw
4 Screw
5 Screw
6 Bolt (with code (600) Headlamp cleaning system)
7 Telescopic nozzle (with code (600) Headlamp cleaning system)
8 Electrical connector
9 Guide (with code (600) Headlamp cleaning system)
E1 Left front headlamp unit
E2 Right front headlamp unit
