FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2002
>>
C 230 Kompressor (203.747) L4-2.3L SC (111.981)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Service and Repair
>>
Removal and Replacement
>>

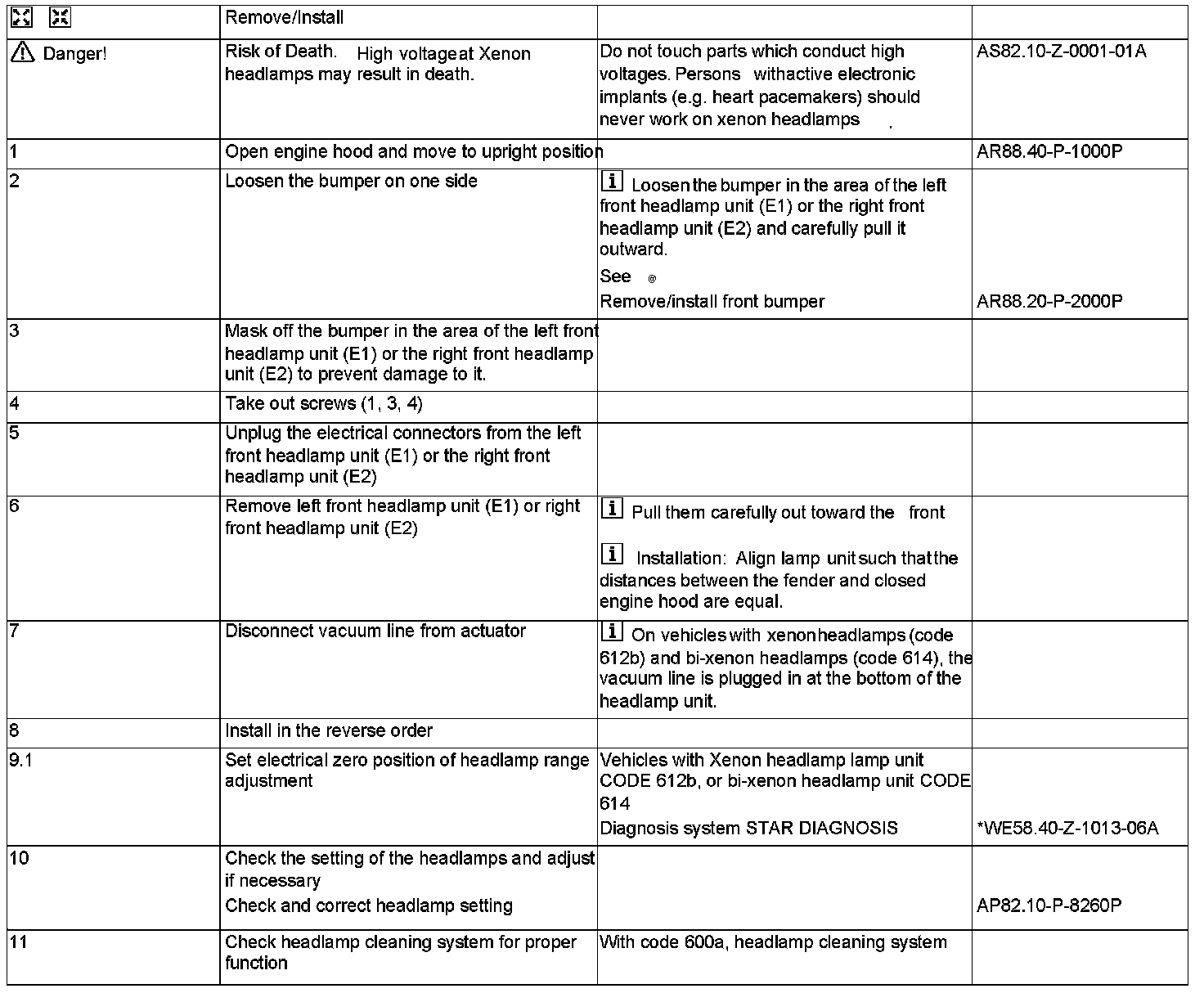

AR82.10-P-4730PA Remove/Install Headlamp Unit
AR82.10-P-4730PA Remove/Install Headlamp Unit
AR82.10-P-4730PA Remove/Install
Headlamp
Unit

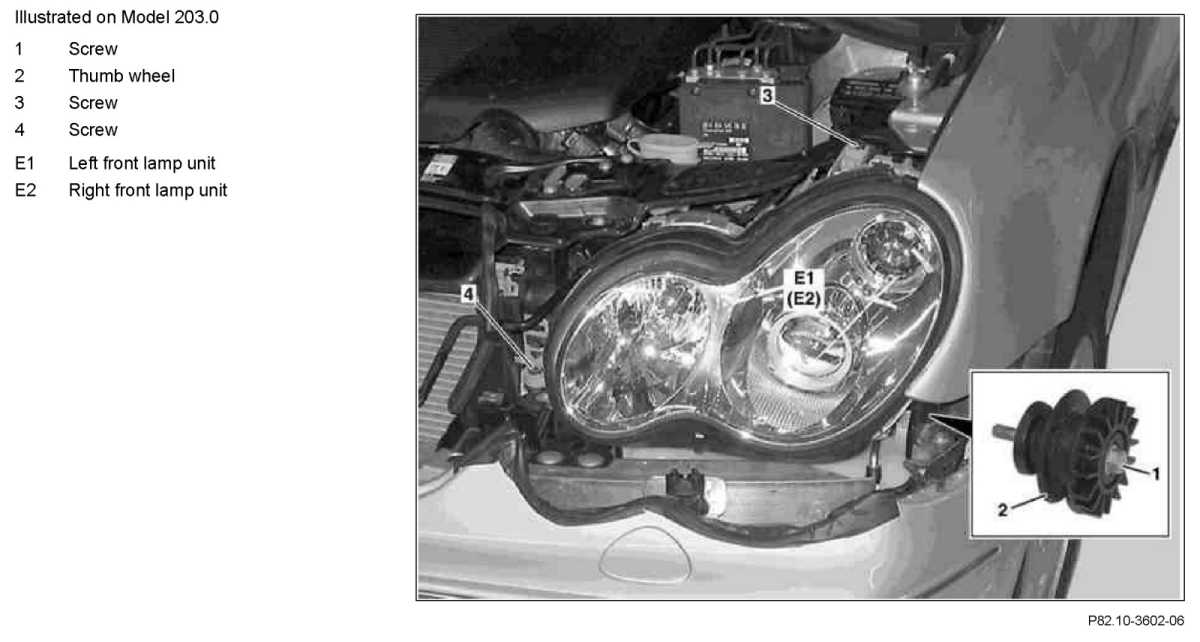

- removal of a lamp unit
