AP82.10-P-8260P Check and Correct Headlamp Adjustment
AP82.10-P-8260P Check and Correct Headlamp Adjustment
AP82.10-P-8260P Check And Correct
Headlamp
Adjustment

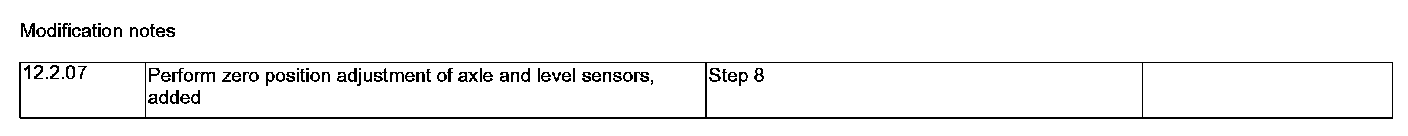

Modification Notes:

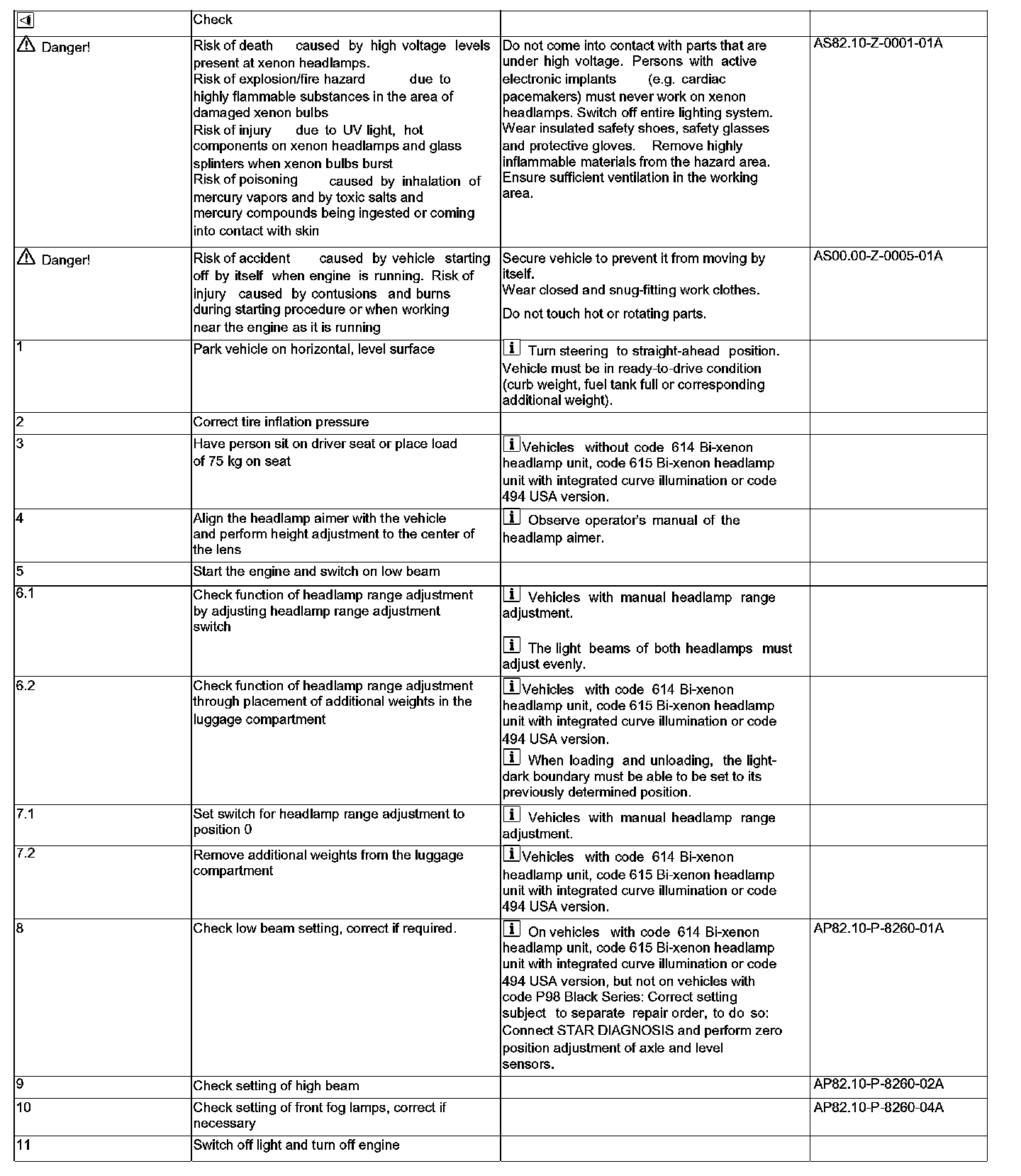

Steps 1 - 11:
