Fog/Driving Lamp Lens: Service and Repair

AR82.10-P-1821P Remove/Install Lens of Fog Lamp

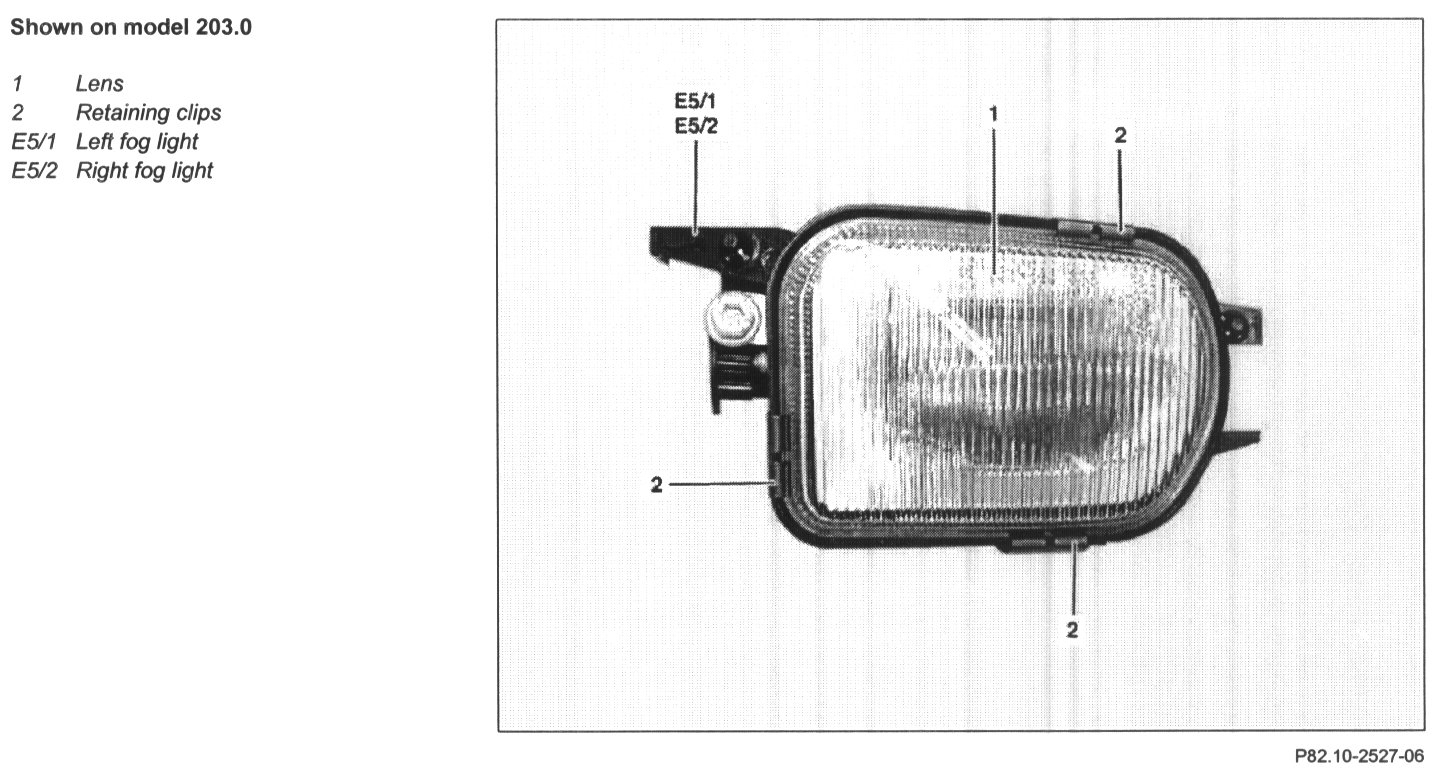

Shown On Model 203.0:

1 Remove left/right fog light (E5/1, E5/2)
2 Remove retaining clips (2)
3 Take off lens (1)

NOTE: Installation: Before fitting on lens, inspect seal for damage

4 Install in the reverse order
