A/C Compressor

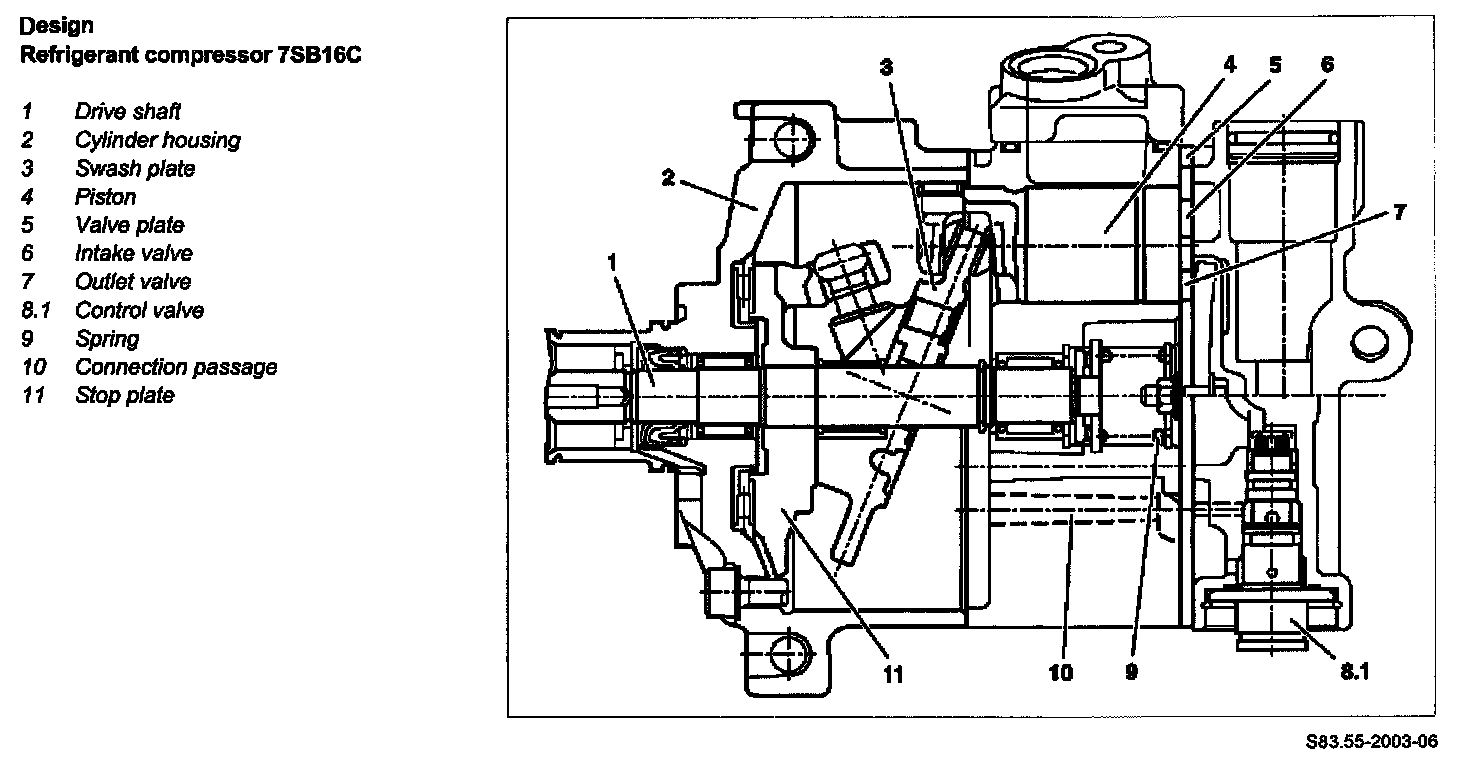

Refrigerant compressor, Purpose
The A/C compressor (A9) is responsible for sucking in and compressing the refrigerant.
