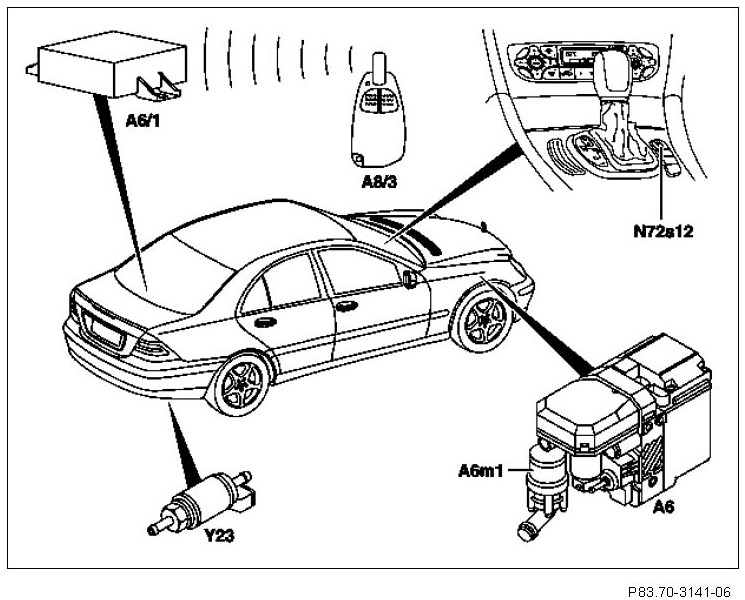

GF83.70-P-0006-01B Stationary Heater (STH) Arrangement of Components

GF83.70-P-0006-01B Stationary Heater (STH) Arrangement Of Components
MODEL 203 up to 23.4.04
- with CODE (228) Stationary heater






Illustrated on model 203.0
A6 STH heater unit
A6/1 STH remote control receiver
A6m1 Circulation pump
A8/3 STH remote control transmitter
N72s12 STH switch
Y23 STH fuel metering pump
