Air Cleaner Housing: Service and Repair

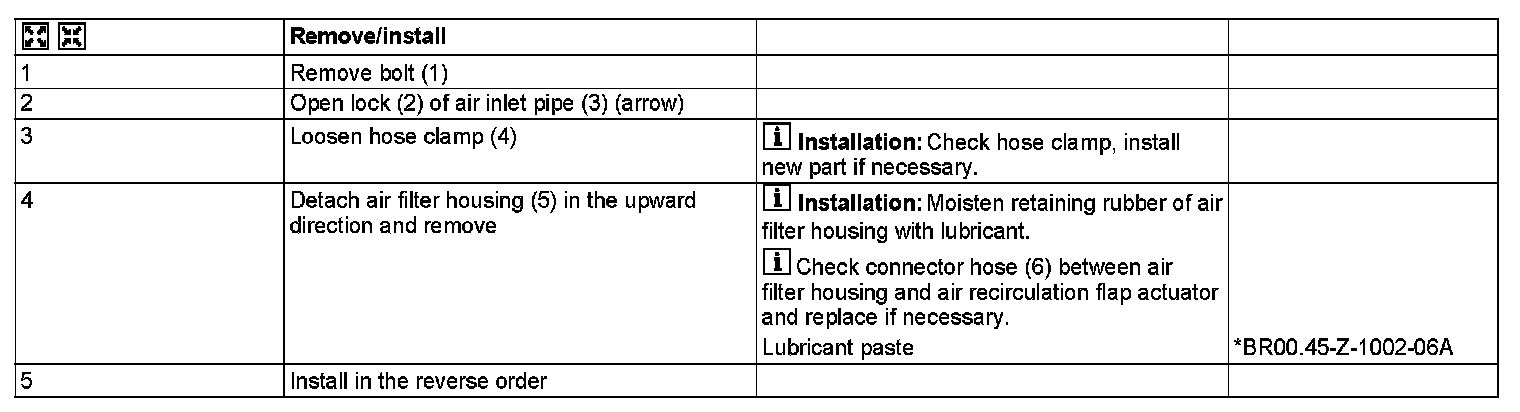

AR09.10-P-1150PK Remove/install Air Filter Housing
- ENGINE 111.955 in MODEL 203.045 /245 /745
- ENGINE 111.981 in MODEL 203.747

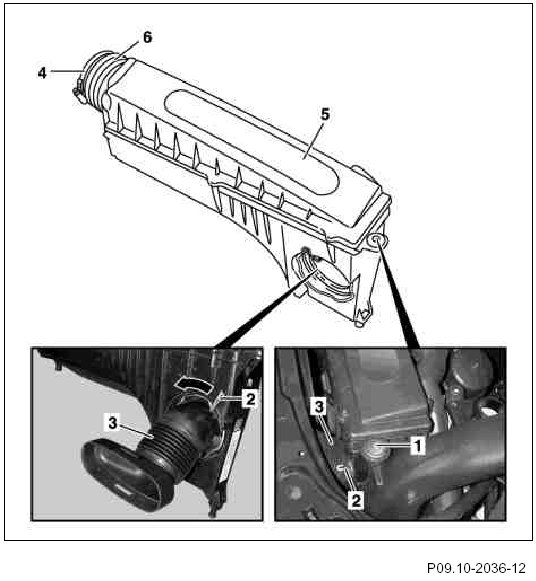

1 Screw
2 Lock
3 Air inlet pipe
4 Hose clamp
5 Air cleaner housing
6 Connector hose
