Drive Belt



AR13.22-P-3902-02PR Routing Diagram Of Poly V-belt

AR13.22-P-3902-02PR Routing diagram of poly V-belt







1 Crankshaft belt pulley
2 Belt pulley on refrigerant compressor
3 Power steering pump belt pulley
4 Coolant pump belt pulley
5 Alternator belt pulley
6 Tensioner pulley

Engine 111.955 with refrigerant compressor (Routing diagram-basic drive)

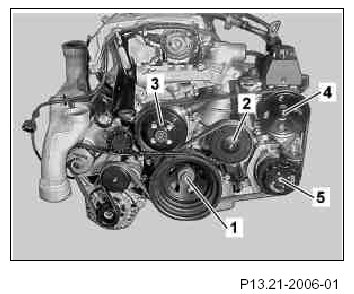

1 Crankshaft belt pulley
2 Tensioner pulley
3 Coolant pump belt pulley
4 Power steering pump belt pulley
5 Belt pulley on refrigerant compressor

Engine 111.955 with refrigerant compressor Routing diagram-compressor actuation)

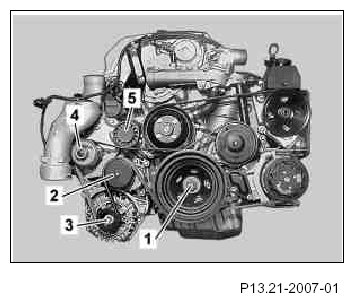

1 Crankshaft belt pulley
2 Tensioner pulley
3 Alternator belt pulley
4 Compressor belt pulley
5 Pulley
