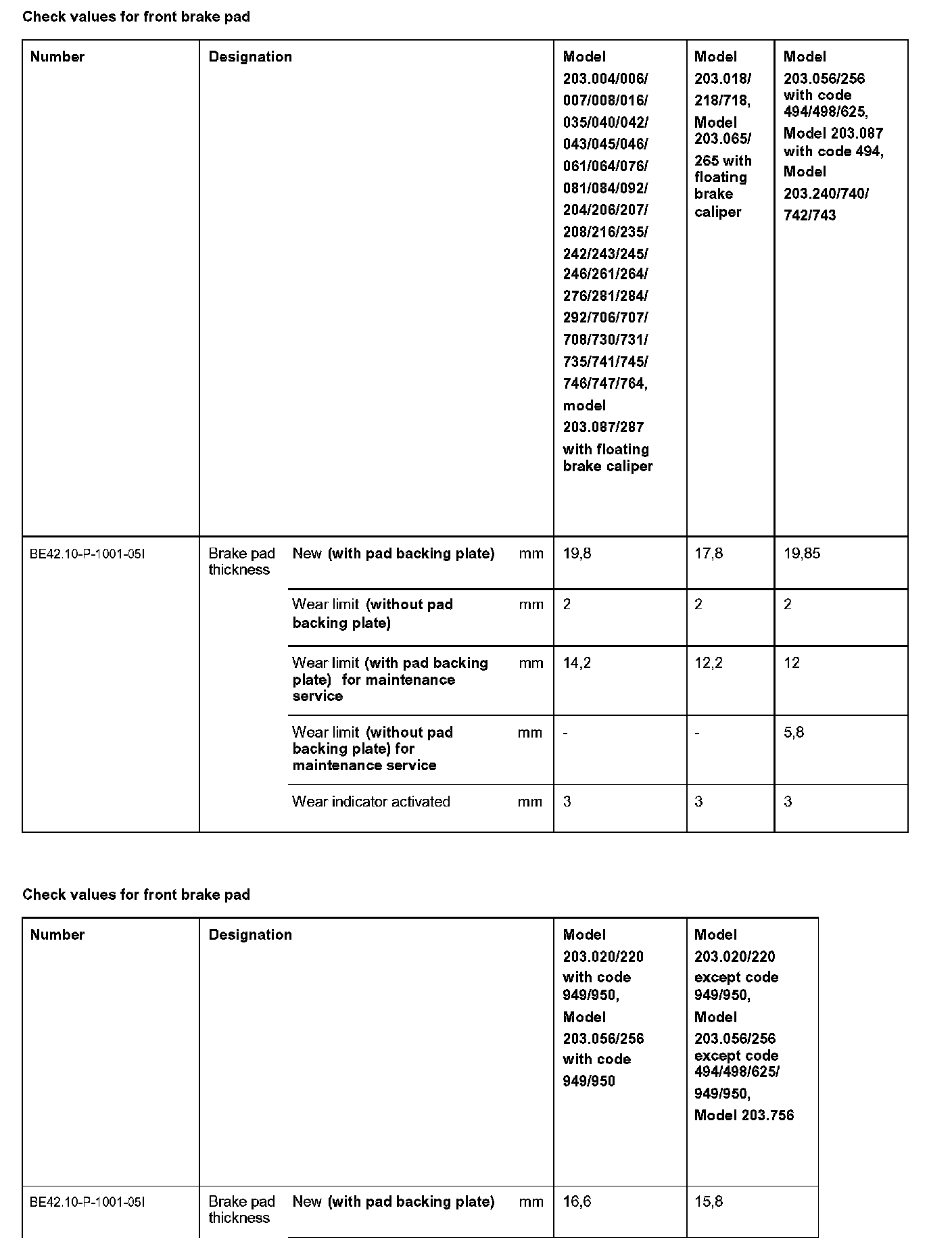

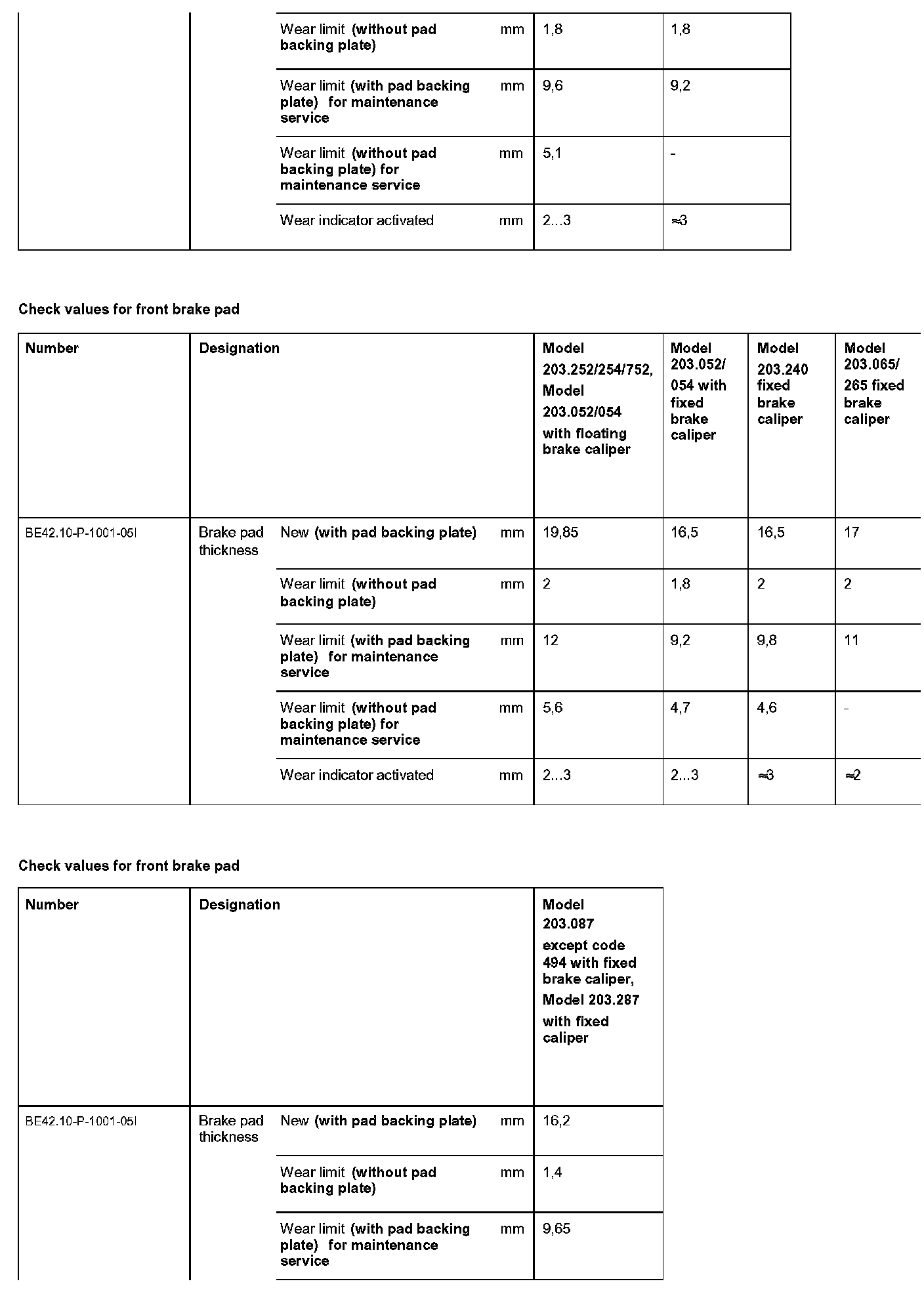

AP42.10-P-4253P Check Brake Lining Thickness
AP42.10-P-4253P Check Brake Lining Thickness
AP42.10-P-4253P Check Brake Lining Thickness

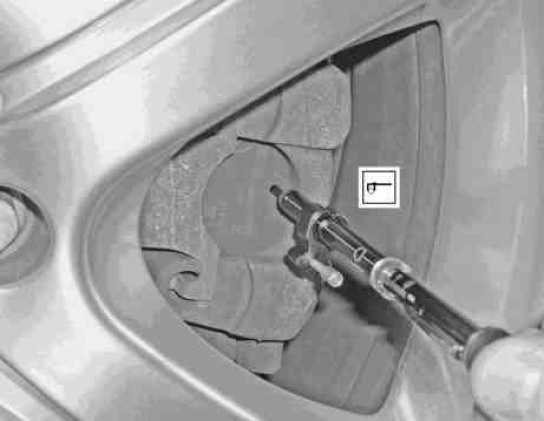

211 589 06 23 00
Brake pad
check gauge
