C 230 Kompressor (203.747) L4-2.3L SC (111.981)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Unibody
>>
Cowl
>>
Service and Repair
Cowl: Service and Repair
AR62.20-P-1221A Remove/Install Partition Wall On Upper Firewall
Component Identification:

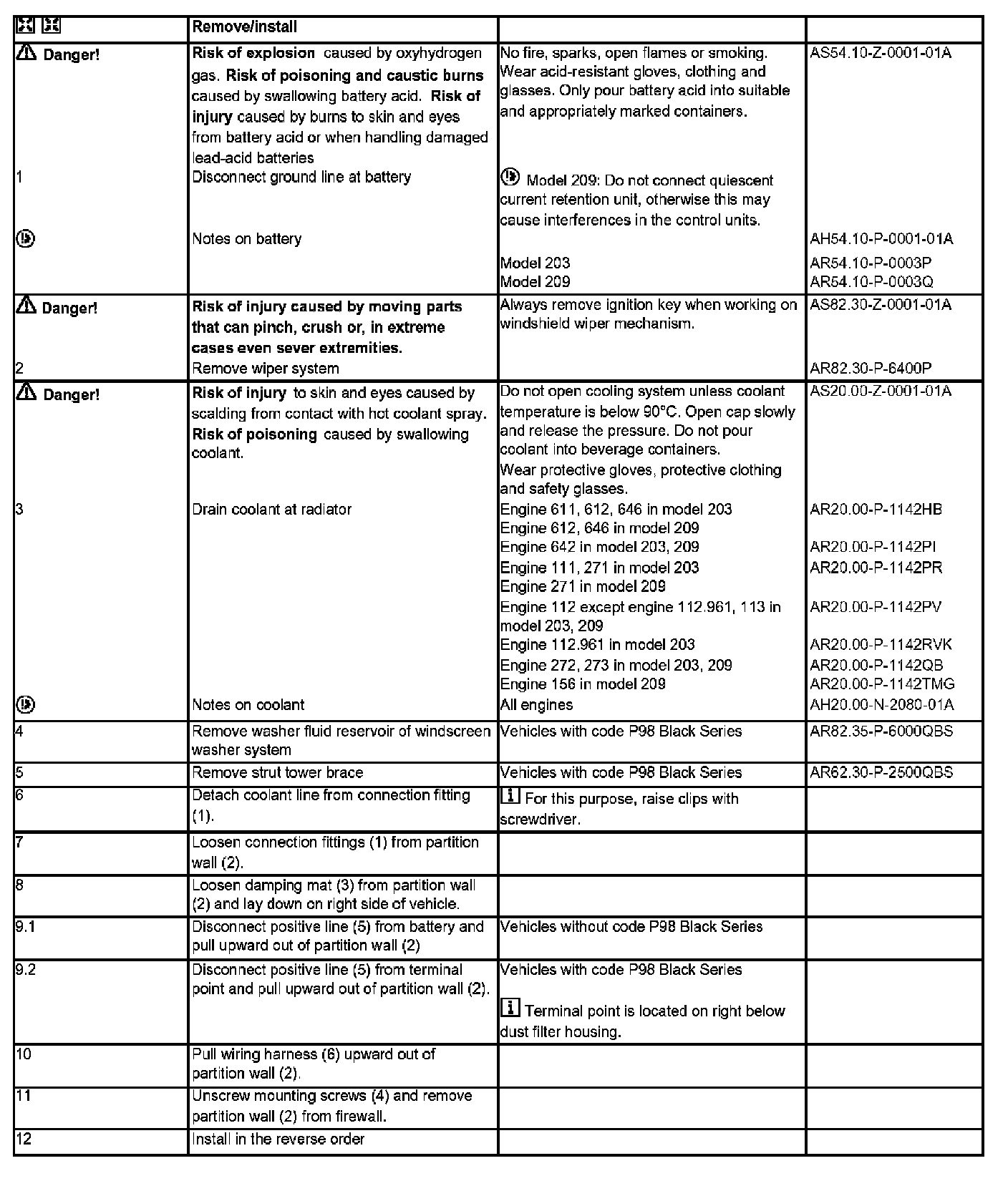

Steps 1 - 12:
