AZ88.50-P-0005-02CWX Install Spoiler on Trunk Lid

AZ88.50-P-0005-02CWX Install Spoiler On Trunk Lid







Assembly preparation
1. Determine position for rear spoiler and ensure that the distance to the outer edges of the trunk lid is equal.

The area on the trunk lid to be glued must be free of dust and grease. For cleaning, use mixture of IPA (Isopropanol alcohol) and water with a ratio of 50 : 50.

The maximum adhesive force is only reached after approx. 72 hours at 20°C.

Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 hours.
Prevent any mechanical stress.

Attaching rear spoiler







If the protective foils on the adhesive strips are not provided with gripping points, pull up a piece of the protective foil at the ends in question and bend toward the edge of the component at a 45° angle. Wait until step 3 to remove protective foil.

2. Align rear spoiler on trunk lid and press on lightly

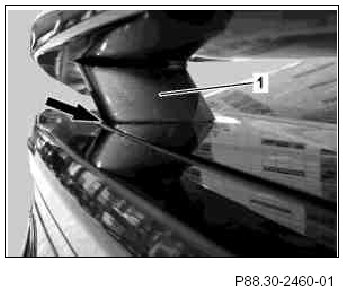

Ensure that spoiler (1) remains in the installation position.

3. Uniformly pull off protective foil. After fastening rear spoiler (1) press down firmly over entire bonding surface. Completely remove air bubbles from adhesive tape.







4. Open trunk lid (2) and fasten end stay on rear spoiler (1) with bolts from installation kit.
