AR67.20-P-3550-05PB Installing Window

AR67.20-P-3550-05PB Installing Window

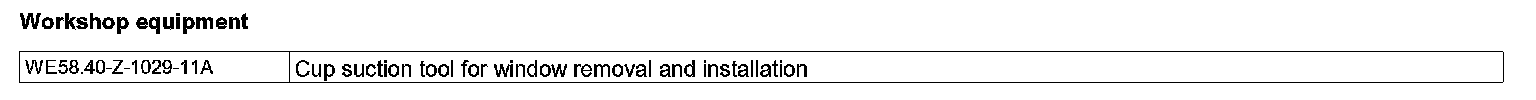

1. Position both suction cups on windshield
2. Position window at front with second mechanic, center above window cutout, lower at rear and position to adhesive tapes to coincide
3. Position window on glue bead.
4. Adjust height by pressing on window.
Observe pencil markings on spacer blocks.

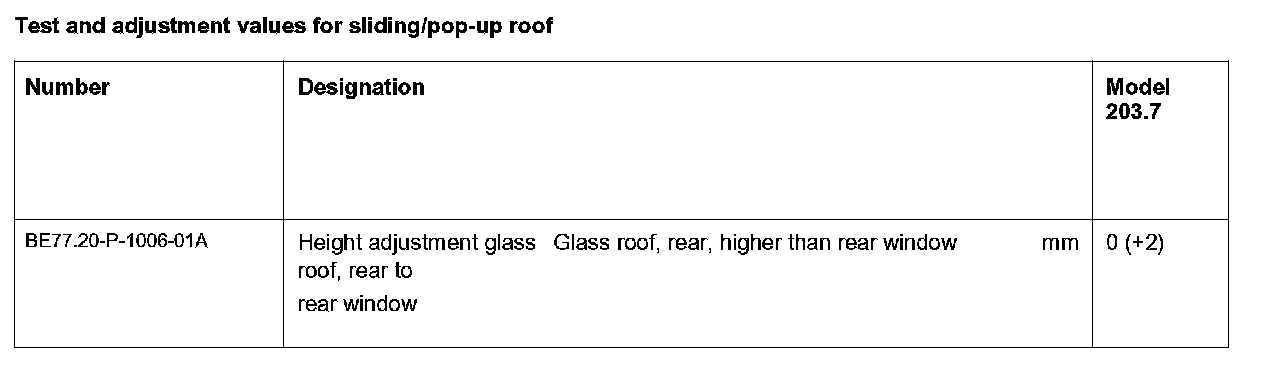

5. Check height adjustment of glass roof at rear in relation to rear window, correct if necessary.
The curing time (time before vehicle is driven), is approx. 2 hours from the time the windshield is installed.
