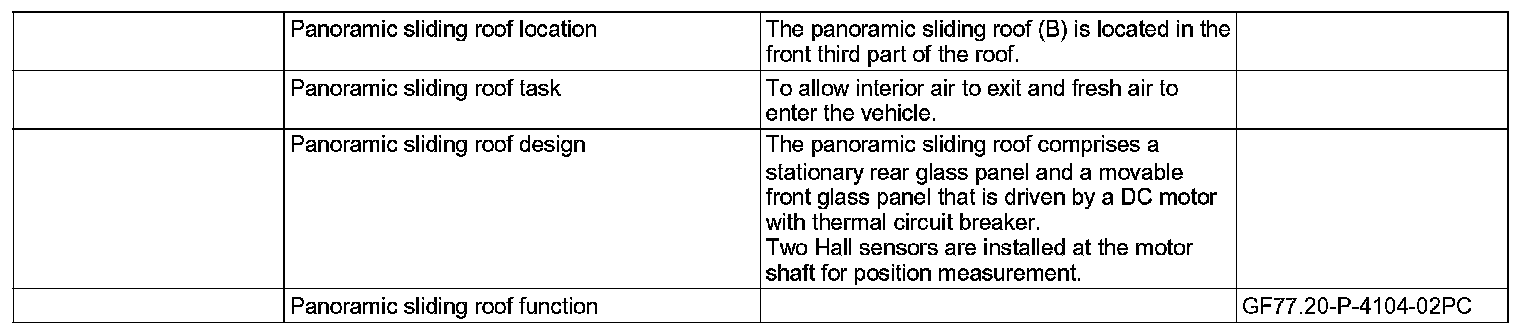

GF77.20-P-4104PC Panoramic Sliding Roof Location/Task/Design/Function




GF77.20-P-4104PC Panoramic Sliding Roof Location/Task/Design/Function

- with CODE (413) Panoramic sliding roof
- up to Model Year 8

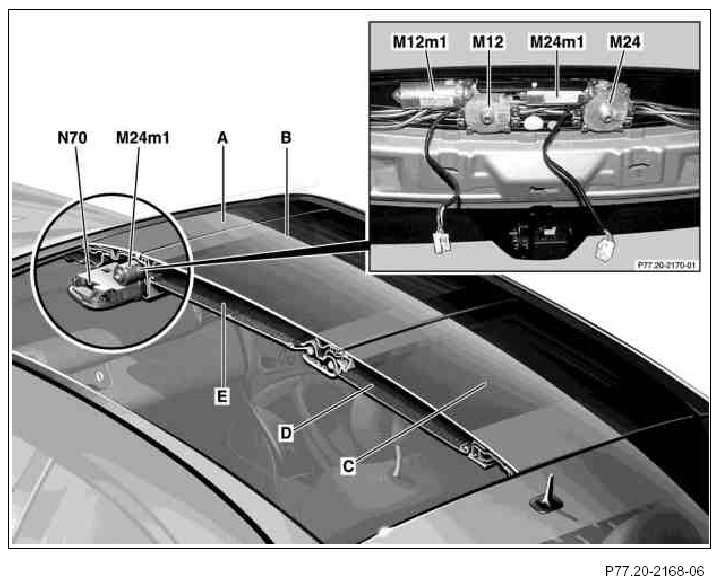

A Wind deflector lamella
B Panoramic sliding roof
C Stationary glass panel
M12 Roof system drive unit
M12m1 Roof system motor
