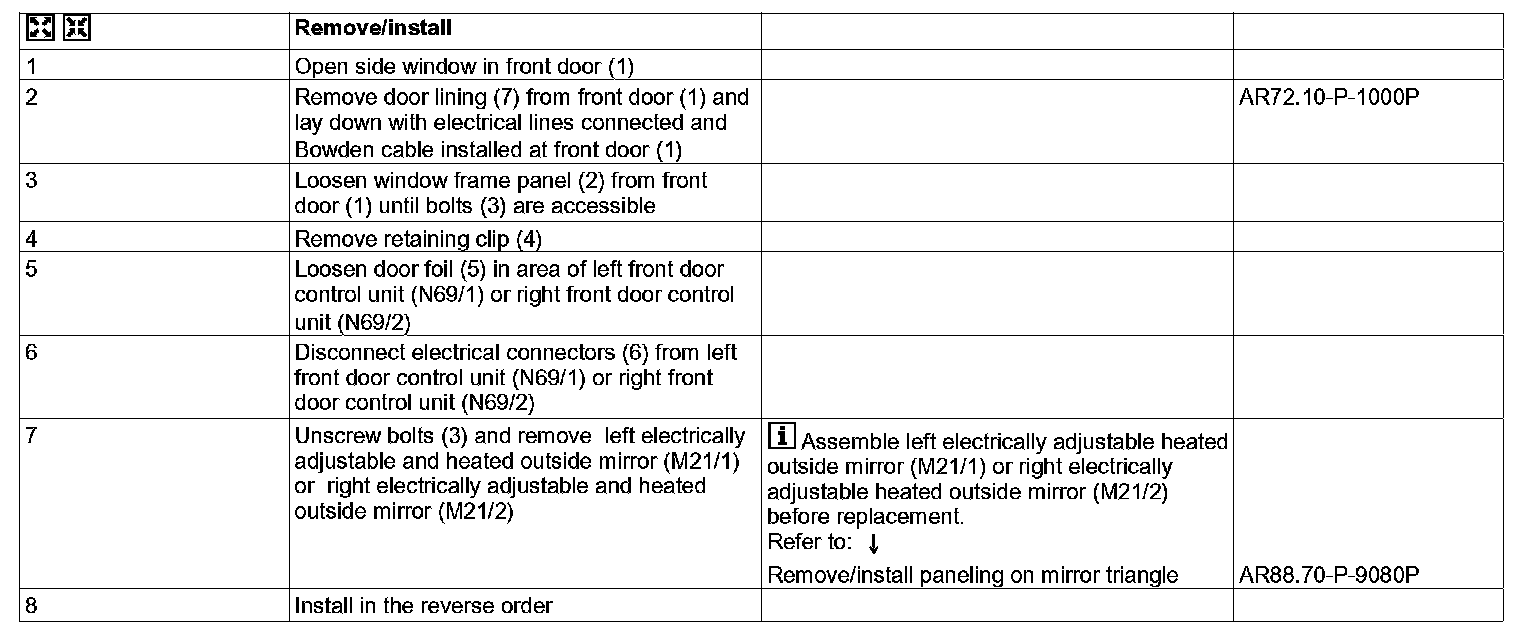

AR88.70-P-9000PC Remove/Install Complete Outside Mirror

AR88.70-P-9000PC Remove/install Complete Outside Mirror


Shown on left front door







1 Front door
2 Window frame paneling
3 Bolts
4 Retaining clip
5 Door foil
6 Electrical connectors
7 Door lining
M21/1 Left electrically adjustable and heated outside mirror
M21/2 Right electrically adjustable and heated outside mirror
N69/1 Door control module front left
N69/2 Door control module front right
