Power Door Lock Actuator: Service and Repair

AR72.20-P-2555PB Remove/Install Actuator Of Rear-end Door Lock


Model 203.7## #A, model 203.7## #E up to 035817







1 Door lock actuation
2 Electrical connector
3 Link rod
4 Screw

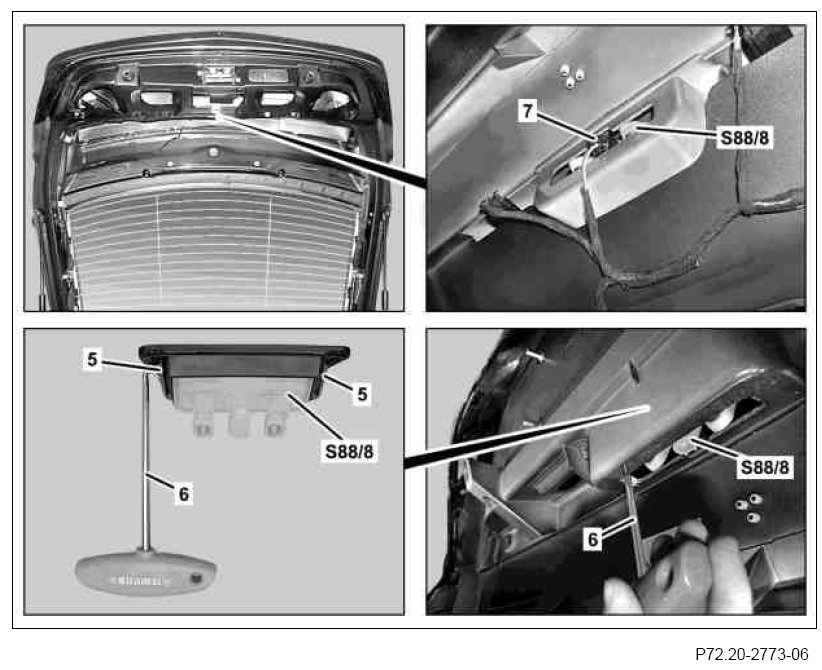

Model 203.7## #E with code (809) model year 2009







5 Catch hook
6 Removal and installation tool
7 Electrical connector
S88/8 Trunk lid external operation switch










116 589 01 62 00, Removal and installation tool
