Locking/Unlocking Central Locking Electrically, Function

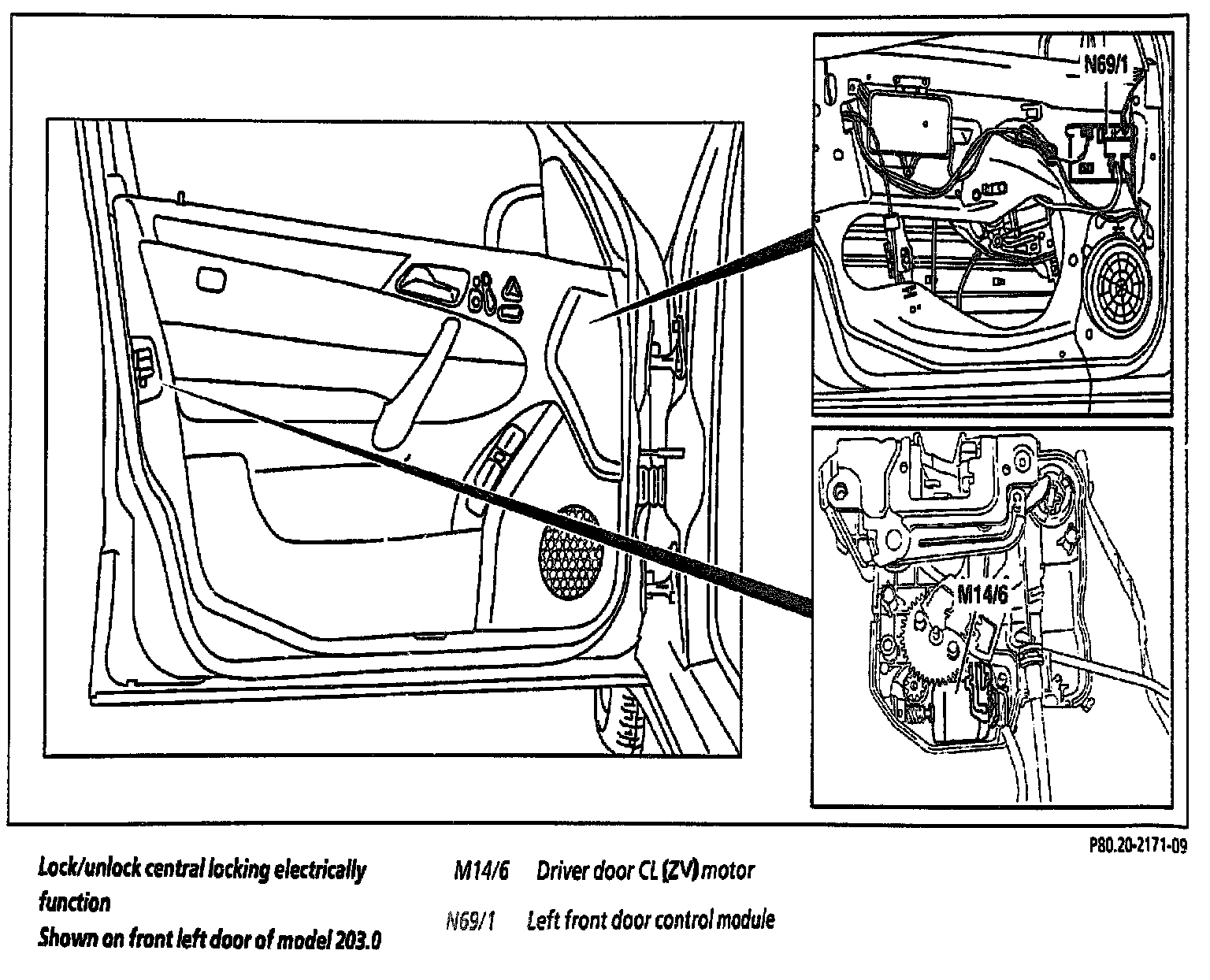

Lock/unlock Central Locking Electrically Function Shown On Front Left Door Of Model 203.0

Shown on front left door of model 203.0
The left front door control module (N69/1) operates the driver door CL[ZV] motor (M14/6). Depending on the request (open or close) the direction of the voltage is reversed and the motor energized. The lock is locked or unlocked by means of a gear mechanism.


NOTE: The motor is energized during a certain time window. No feedback is provided regarding the end position. No microswitches, etc. are used for state recognition. voltage reversal is controlled and governed by the door control module.
