Home >> Mercedes Benz >> 2002 >> C 230 Kompressor (203.747) L4-2.3L SC (111.981) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Trunk / Liftgate Shock / Support >> Service and Repair

Trunk / Liftgate Shock / Support: Service and Repair

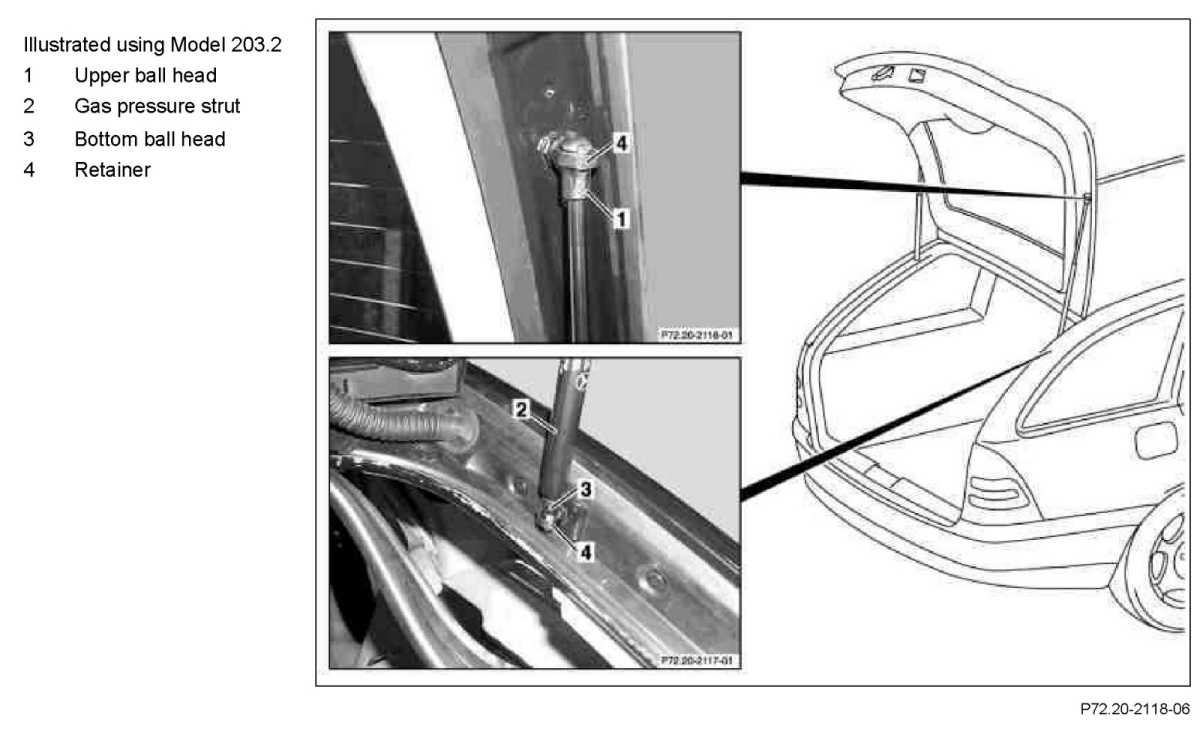

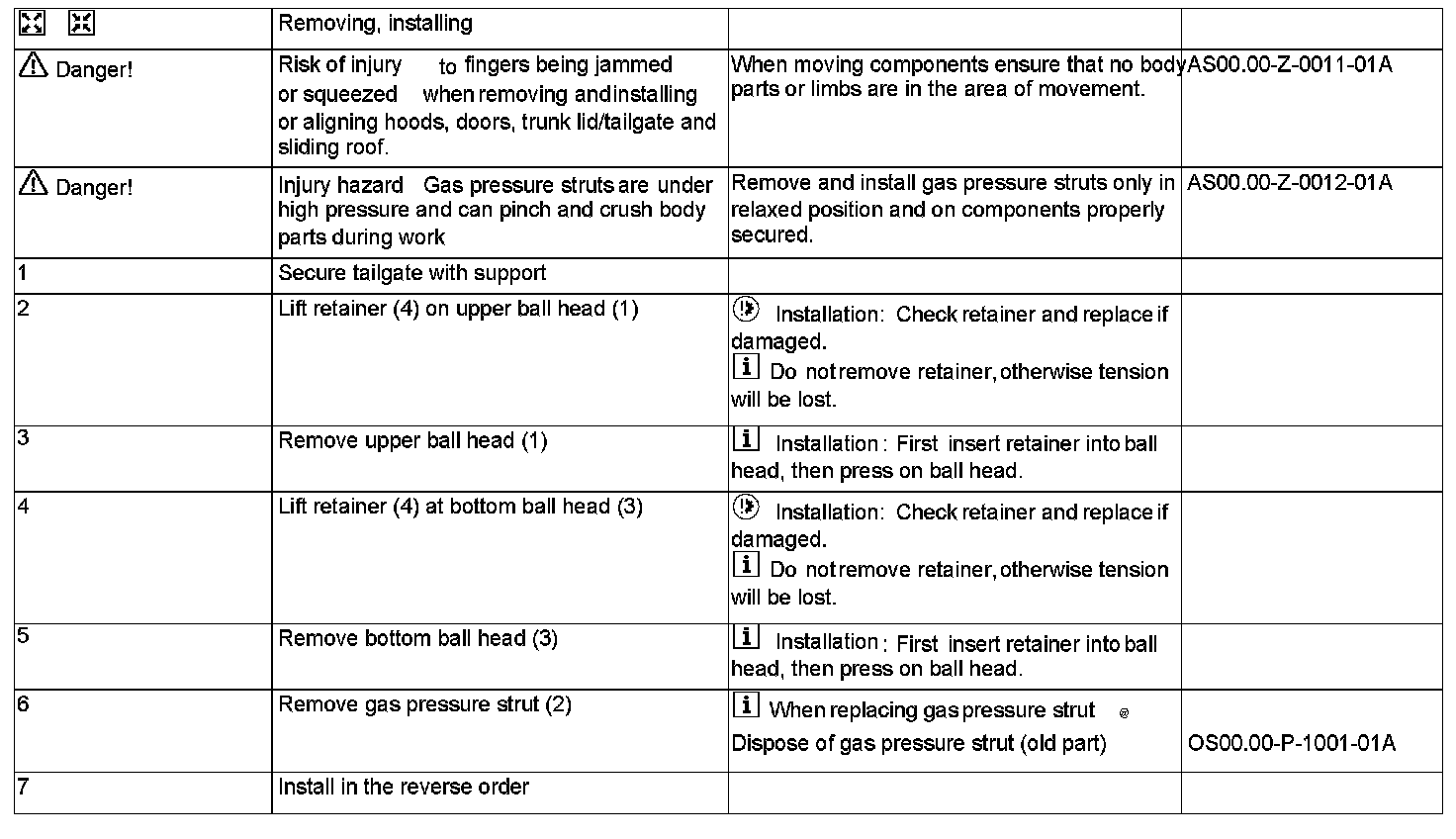

AR72.20-P-3600PA Remove/Install Gas Pressure Strut on Tailgate
