AR72.20-P-3530-01PB Remove Rear-End Door Cover

AR72.20-P-3530-01PB Remove Rear-End Door Cover

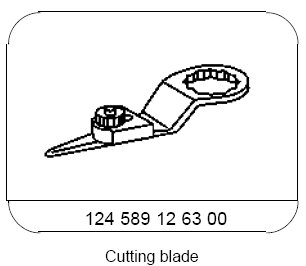

124 589 12 63 00, Cutting blade







124 589 40 63 00, Cutting blade

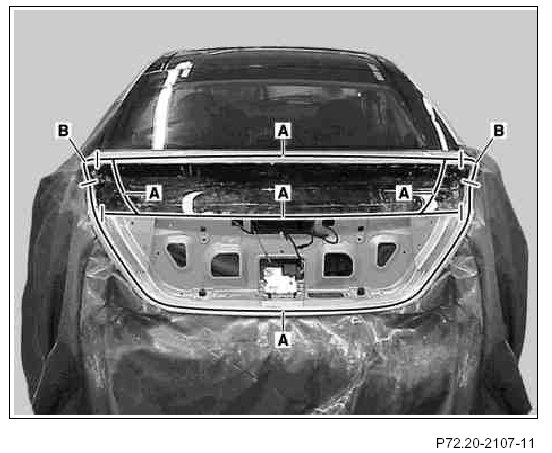

1. Mark separation lines on cover and lower rear-end door window.
2. Saw out cover and lower rear-end door window along cutting lines.

Use dia. 63 mm saw blade of for FEIN FSC 1.6 window removal tool
Do not exceed cutting depth of 5 mm. Evacuate sawing dust. FEIN FSC 1.6 window removal tool, wet/dry vacuum cleaner.







Dimensions for cutting lines
a 30 mm
b 40 mm
c 100 mm







3. Unscrew bolts (1) from cover (arrows).
4. Remove cover from rear-end door.







5. Clamp cutting blade (bent) into window removal tool and cut adhesive bead (A).
FEIN FSC 1.6 window removal tool.

6. Clamp cutting blade (straight) into window removal tool and cut adhesive bead (A).
7. Remove remaining pieces of cover and lower rear-end door window from rear-end door.
