AR72.20-P-3500PB Remove/Install Tailgate
AR72.20-P-3500PB Remove/Install Tailgate
AR72.20-P-3500PB Remove/install
Tailgate

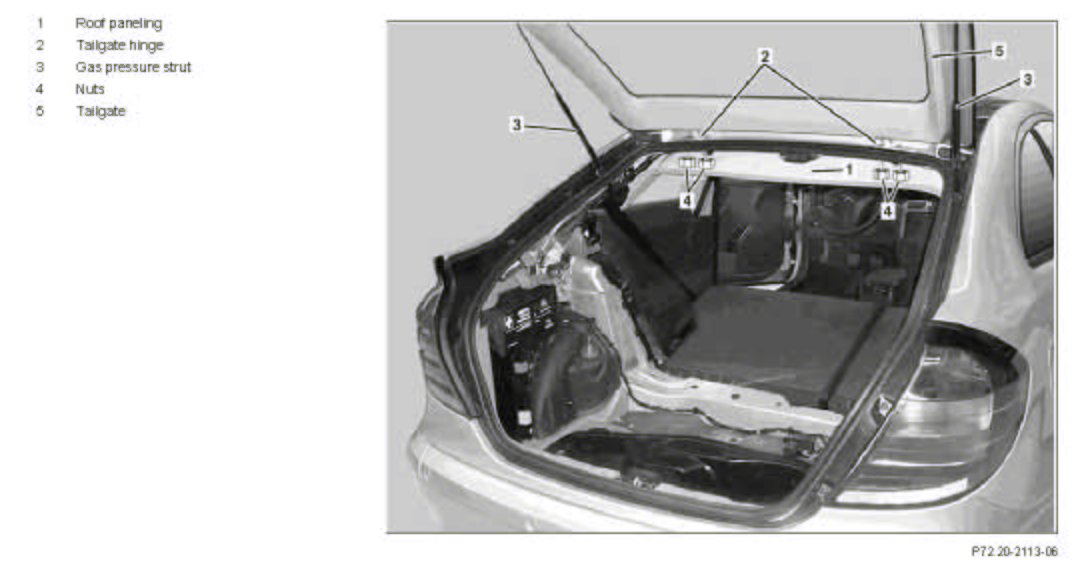

Component Identification:

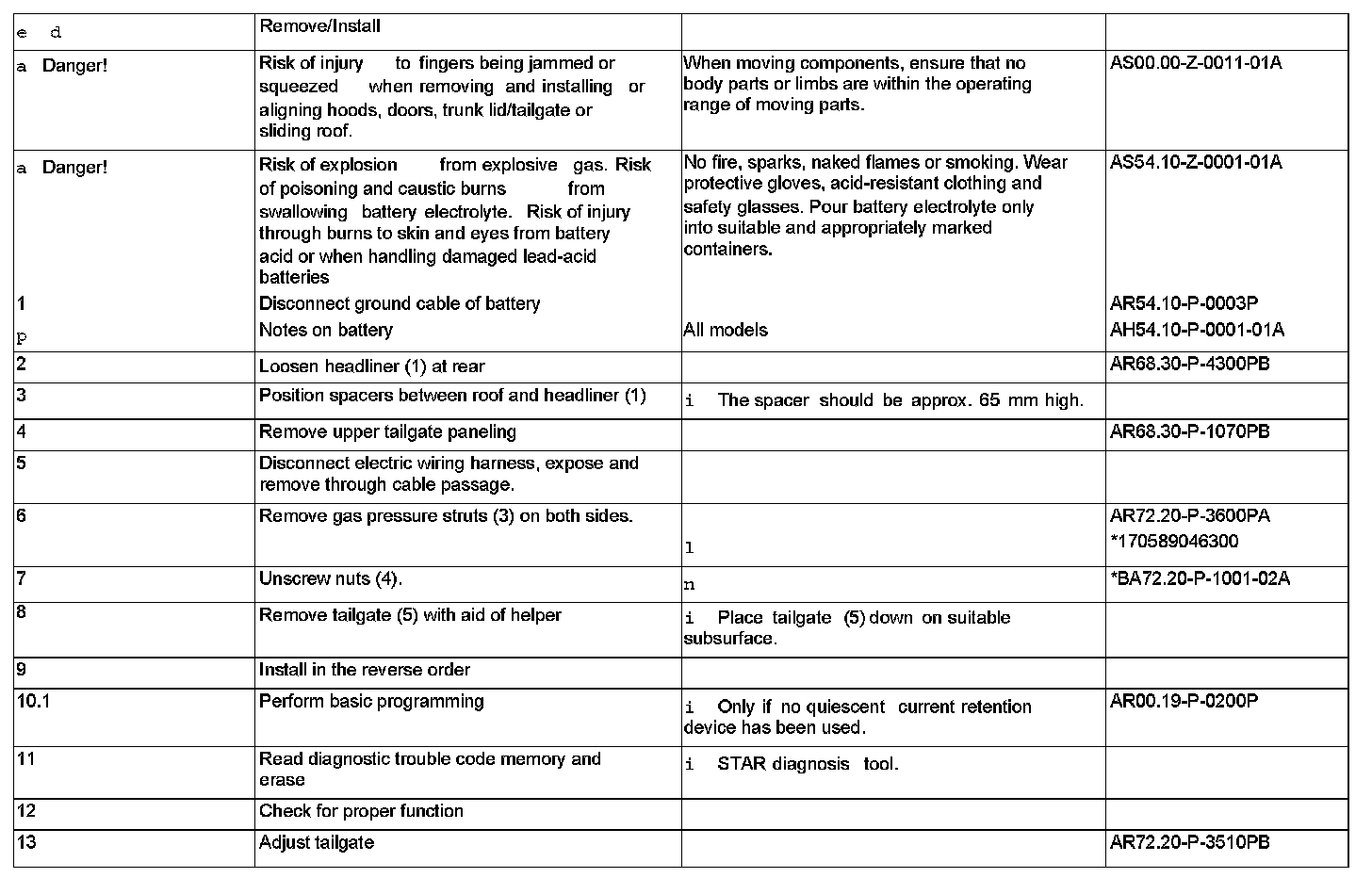

Steps 1 - 13:

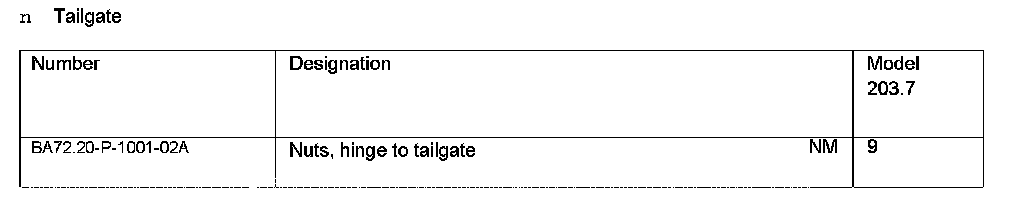

Tailgate:

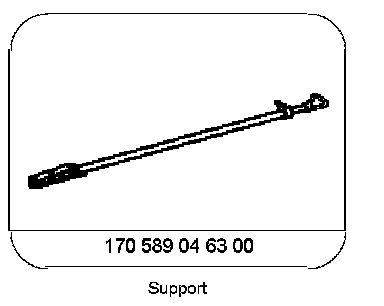

Special Tools:
