Procedures



AR88.40-P-1000P Open Engine Hood, Move to Upright Position and Close

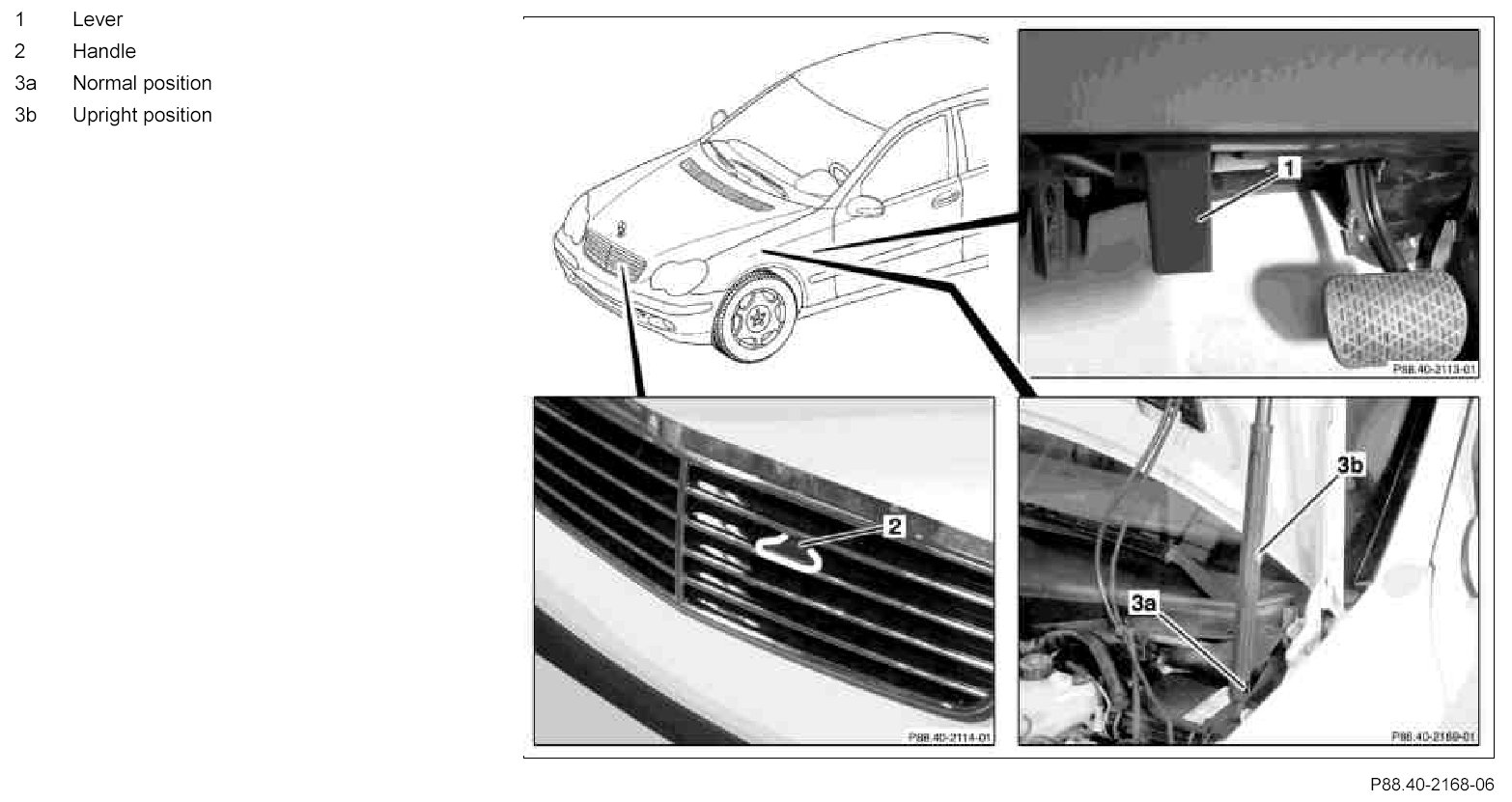

Component Identification:

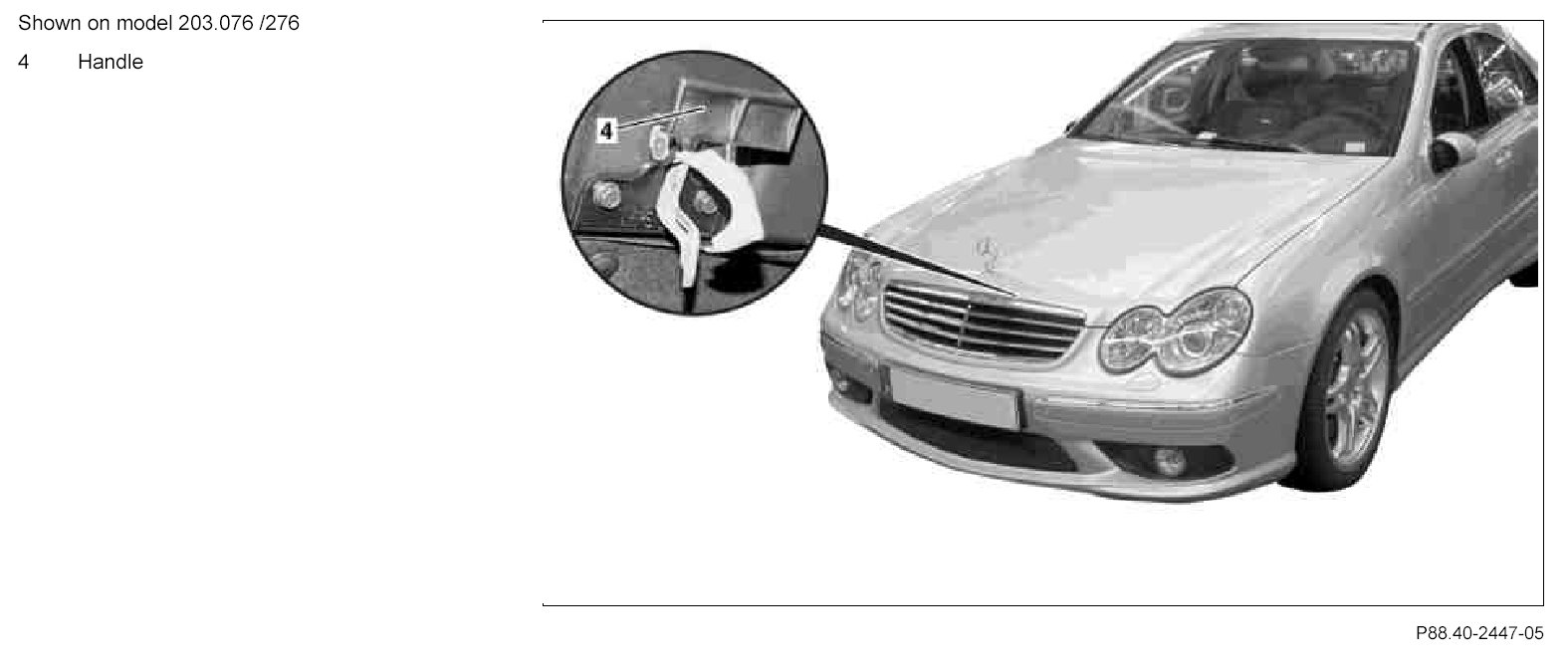

Component Identification:

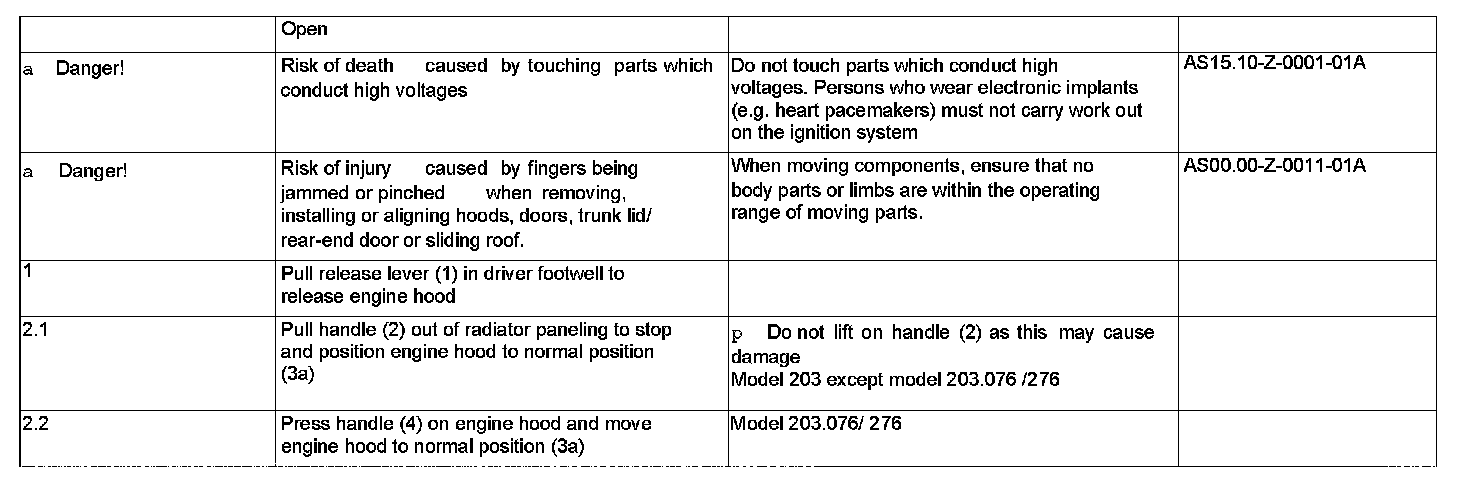

Steps 1 - 2.2:

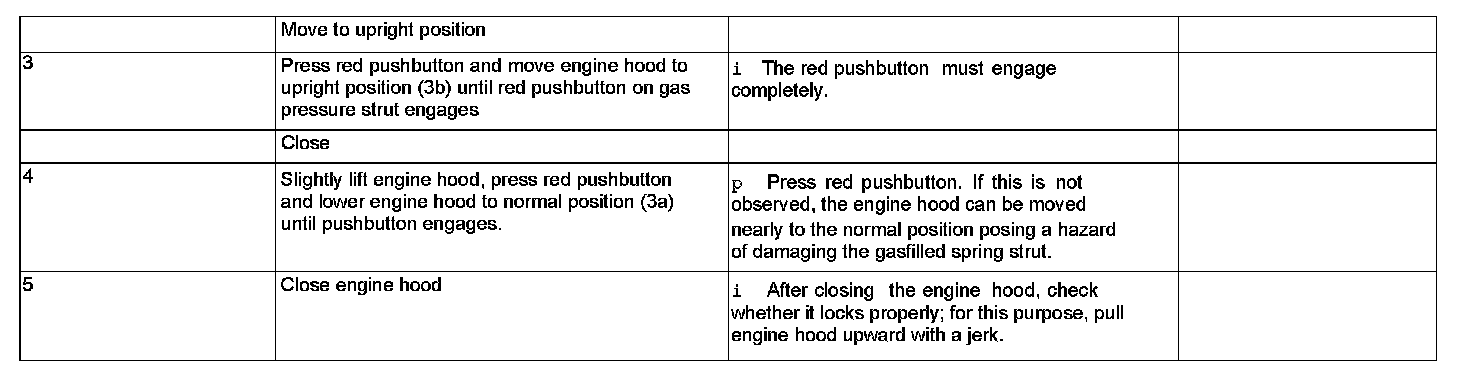

Steps 3 - 5:
