Overhead Control Panel Control Module

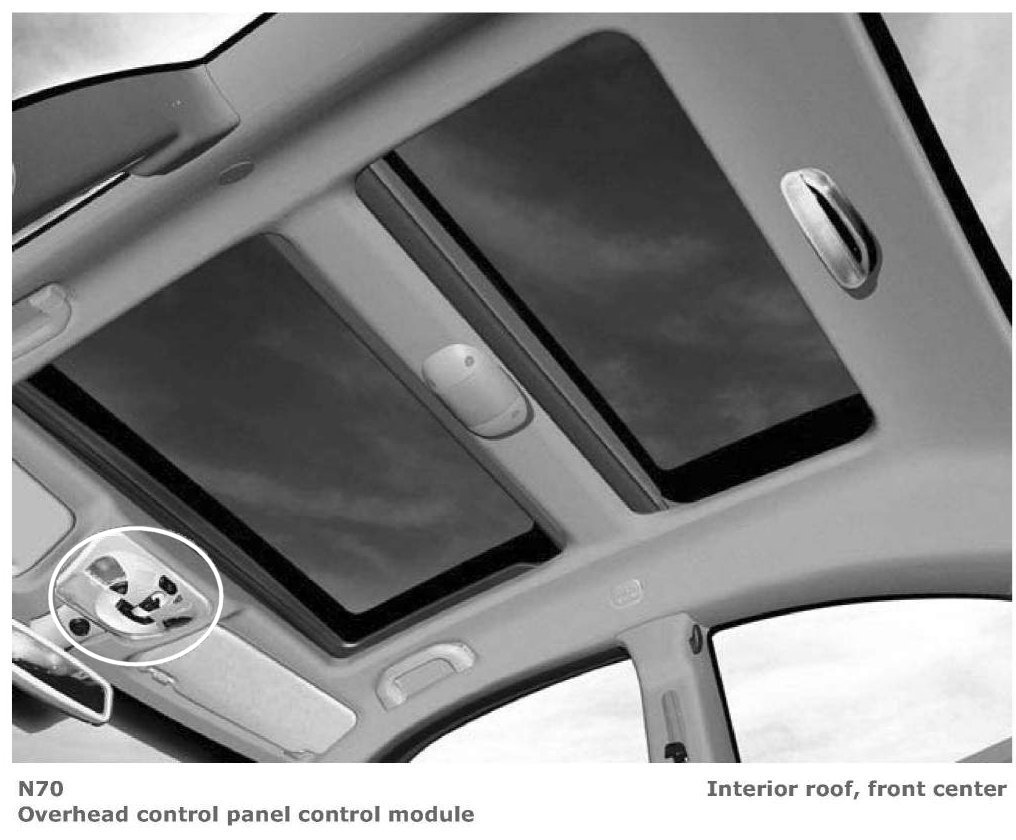

Overhead Control Panel Control Module (View 1):

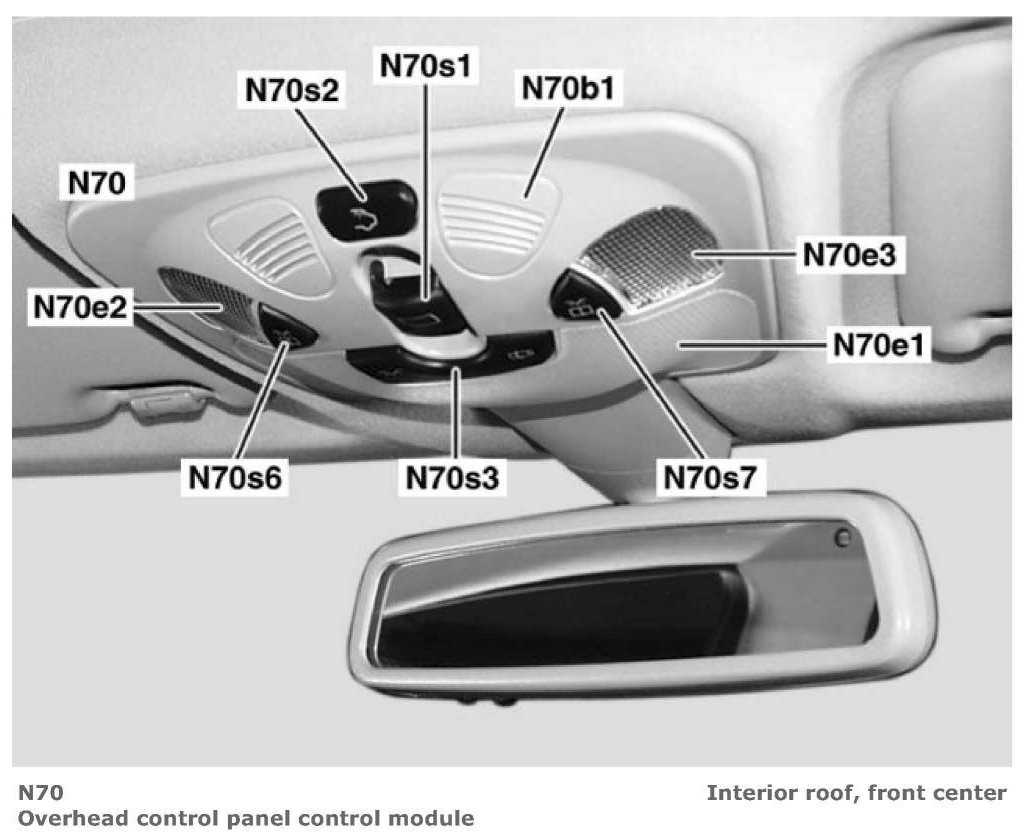

Overhead Control Panel Control Module (View 2):
