AR31.19-P-1350PC Remove/Install Trailer Hitch Socket Housing



AR31.19-P-1350PC Remove/Install Trailer Hitch Socket Housing
- with CODE (550) Trailer hitch
- except CODE (772) AMG styling package
- except CODE (950) AMG sport package

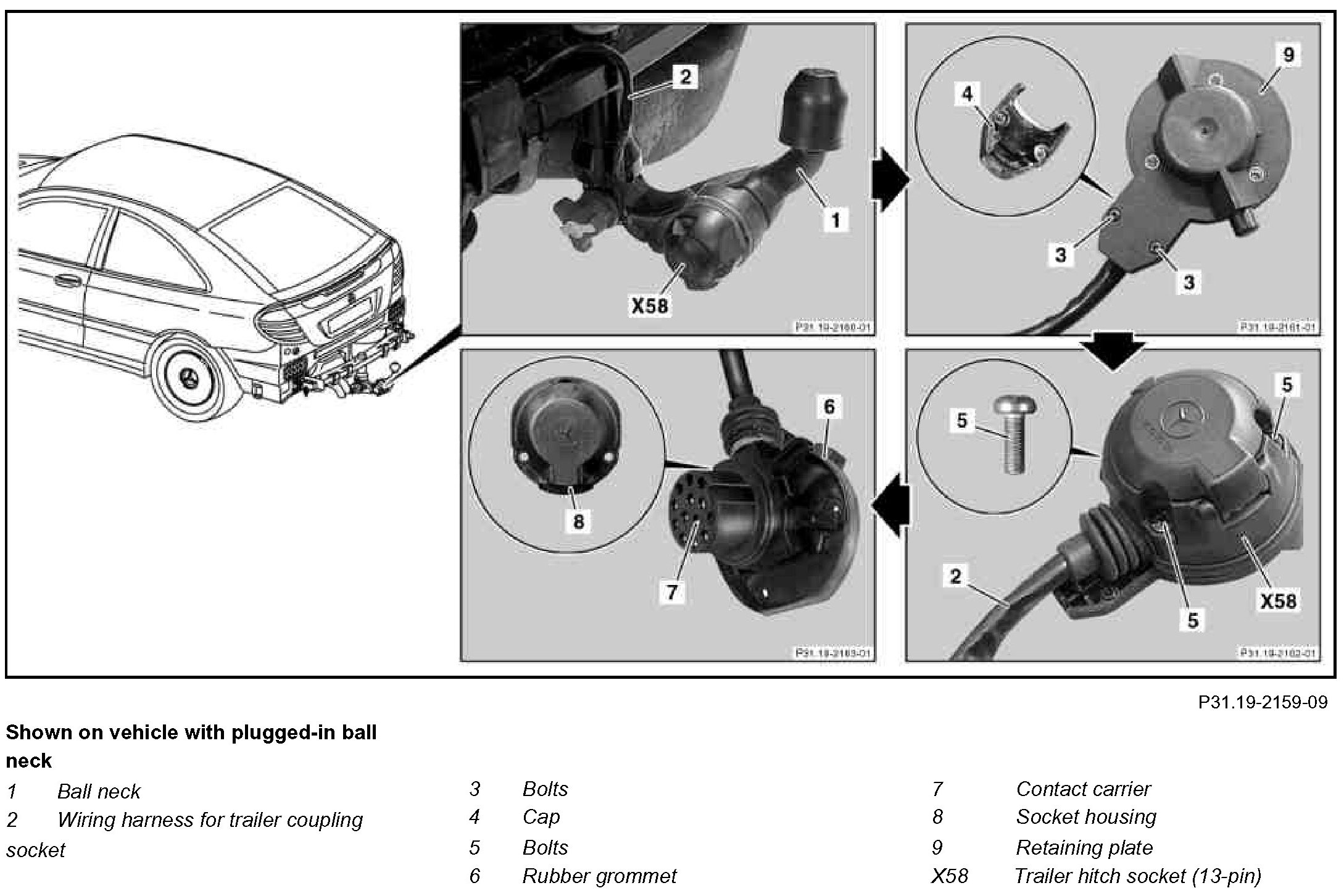

Component Identification:

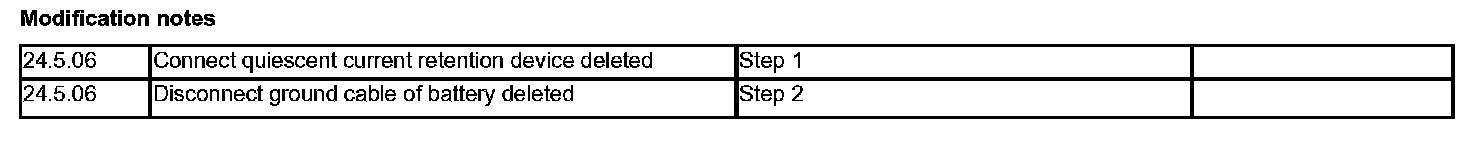

Modification Notes:

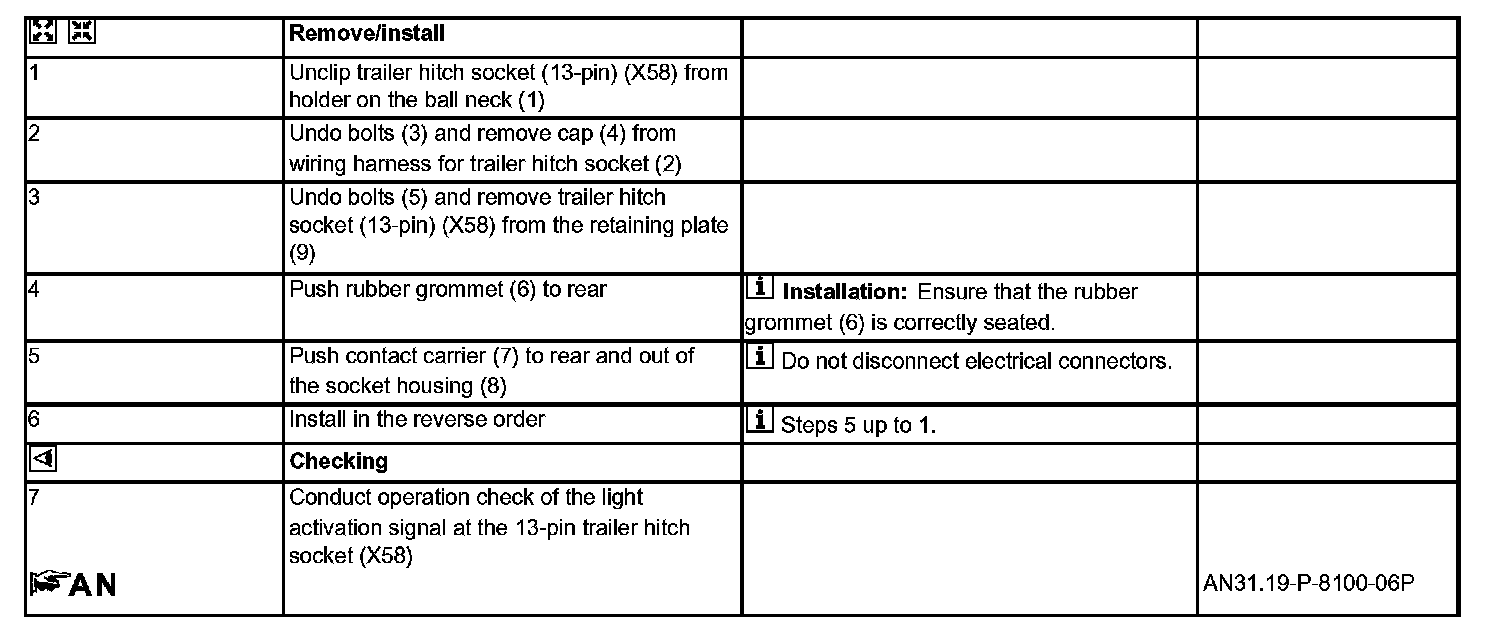

Steps 1 - 7:
