AR82.62-P-7850P Remove/Install Loudspeaker In Mirror Triangle

AR82.62-P-7850P Remove/Install Loudspeaker In Mirror Triangle

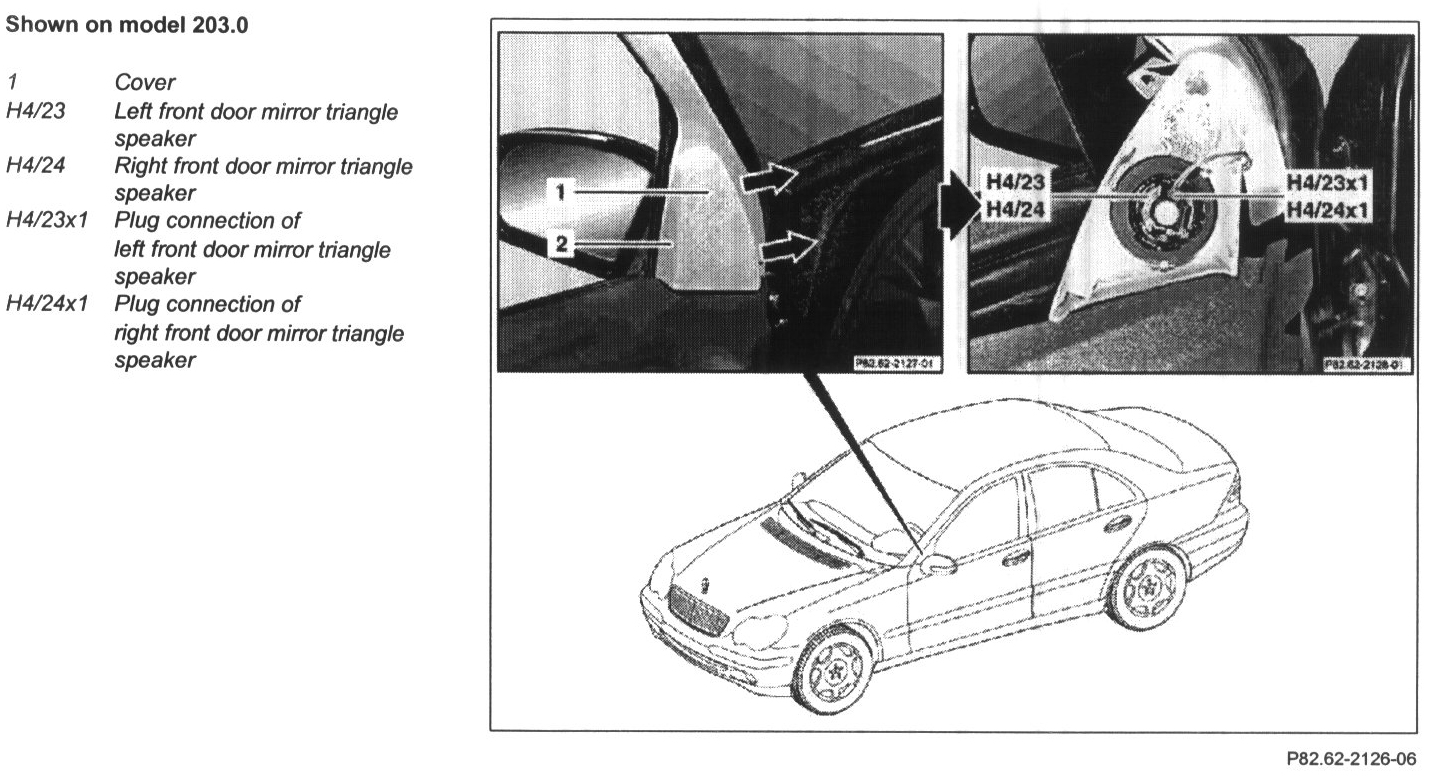

Shown On Model 203.0:

1 Unclip cover (1) at mirror triangle

CAUTION: Carefully release vertical side (2) first, then remove in direction of arrow.

2 Separate plug connection of left front door mirror triangle speaker (1-14/23x1); plug connection of right front door mirror triangle speaker (H4/24x1)
3 Unclip left front door mirror triangle speaker (H4/23); right front door mirror triangle speaker (H4/24) and take out of cover (1)
4 Install in the reverse order
5 Perform function check
