AR82.62-P-7845P Remove/Install Loudspeaker In Front Door

AR82.62-P-7845P Remove/Install Loudspeaker In Front Door

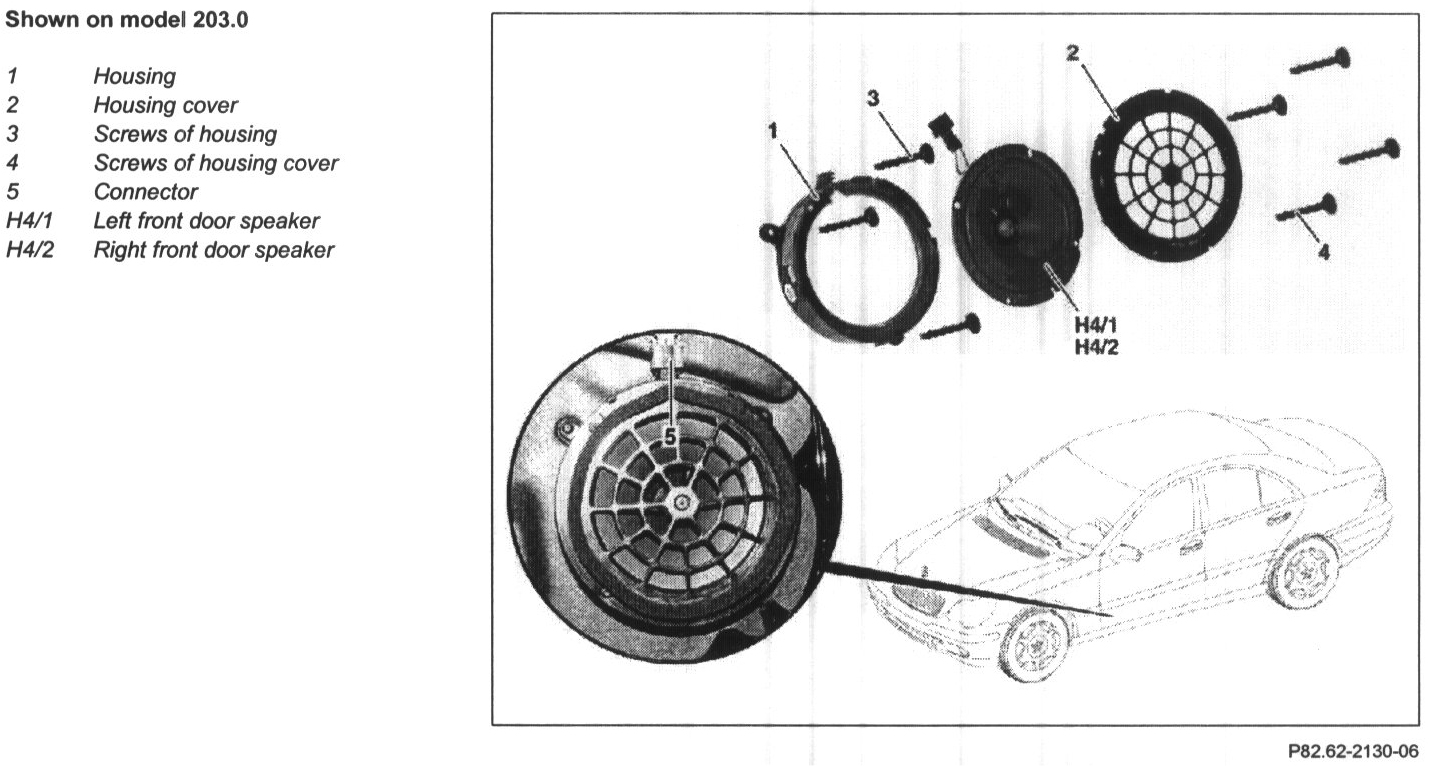

Shown On Model 203.0:

Shown On Model 203.7:

1 Remove door liner from front door
2 Disconnect connector (5)
3 Remove screws of housing (3)

See "Special Tool" given below.

4 Remove housing (1)
5 Remove screws of housing cover (4)

See "Special Tool" given below.

6 Take off housing cover (2)
7 Unclip speaker in front left door (H4/1), speaker in front right door (H4/2) and take out of housing (1)
8 Unclip speaker in front left door (H4/31), speaker in front right door (H4/30) and take out of housing (1)
9 Disconnect front door loudspeaker connectors
10 Install in the reverse order
11 Perform function check


Special Tool

Torx Bit Set:
