AR82.62-P-7833P Remove/Install Loudspeaker In Instrument Panel

AR82.62-P-7833P Remove/Install Loudspeaker In Instrument Panel
- with CODE (810) sound system

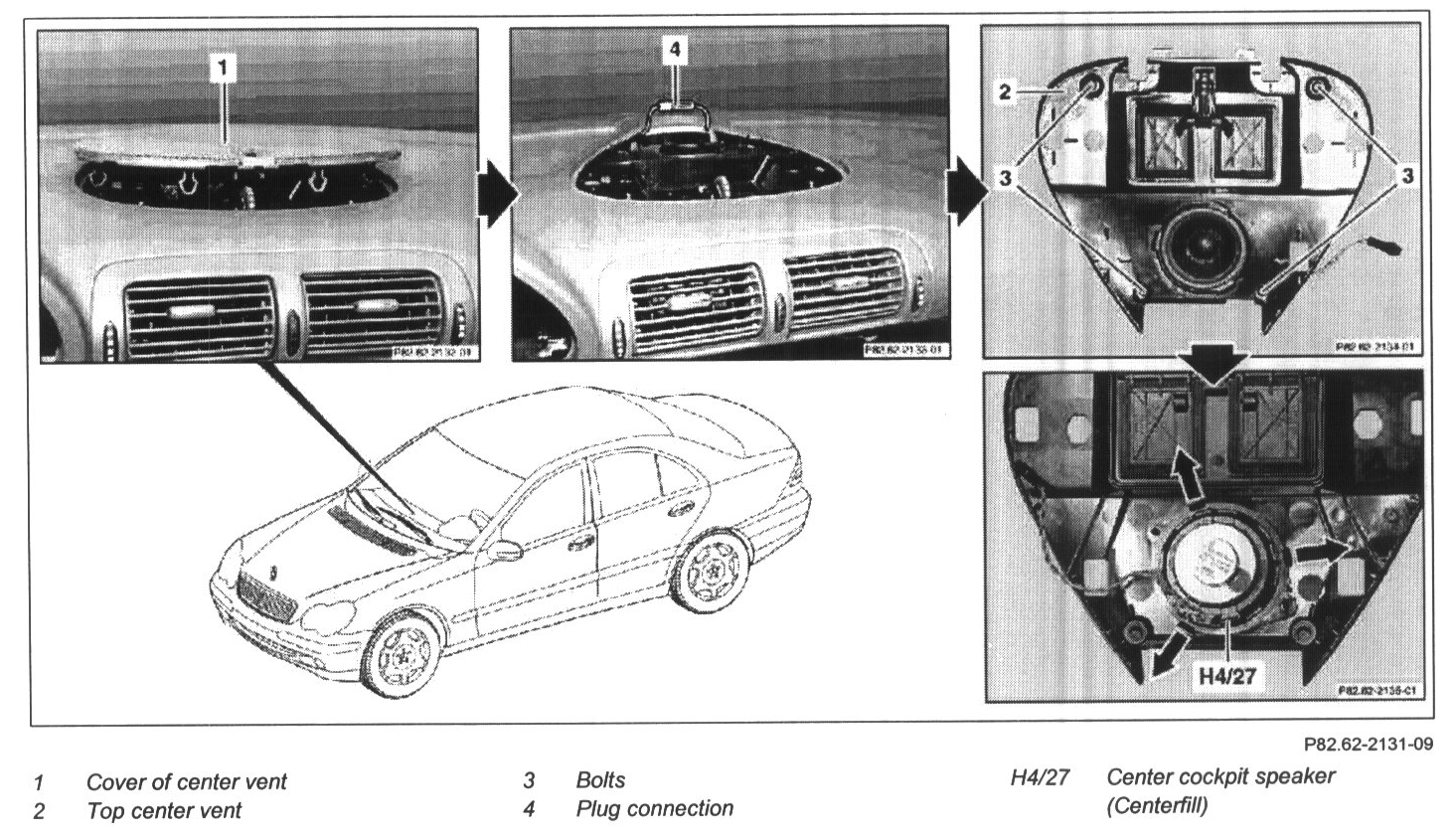

1 Unclip and remove center nozzle cover (1)

See "Special Tools - Assembly wedge" given below.

2 Unscrew screws (3)

See "Special Tools - Torx bit set" given below.

3 Lift upper center nozzle (2) out of dashboard
4 Disconnect connector (4)
5 Unclip and remove center cockpit speaker (Center fill) (H4/27)
6 Install in the reverse order


Special Tools

Special Tools:
