GF82.62-P-4220FAA Speaker System, Component Description

GF82.62-P-4220FAA Speaker System, Component Description

MODEL 203.7
- with CODE (810) Sound system
MODEL 203.7 as of model year 09/Modification Year 08 model refinement package

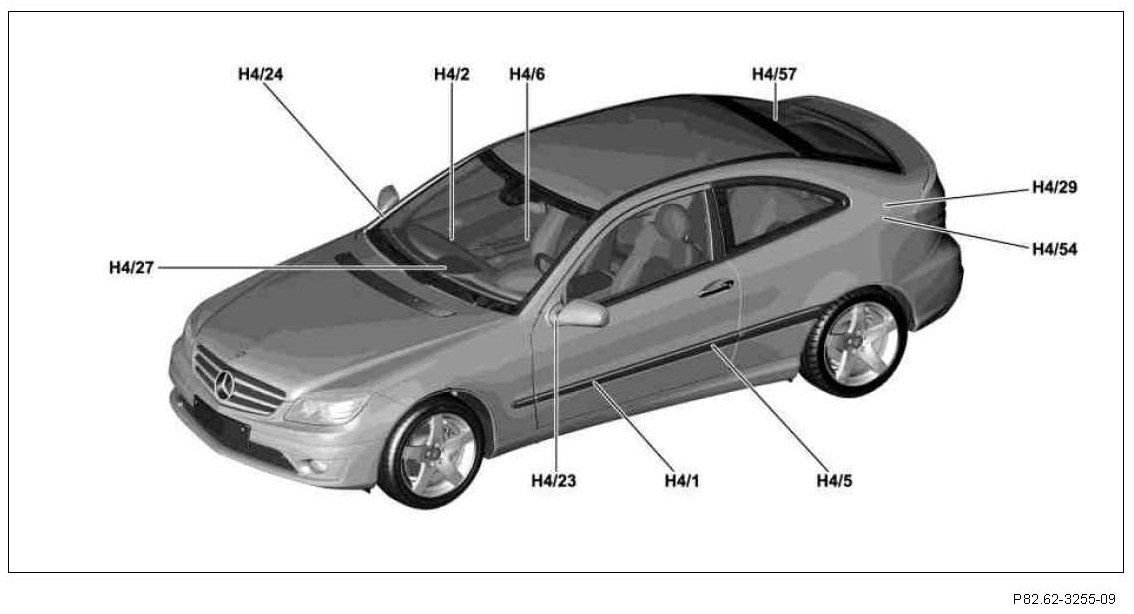

H4/1 Left front door speaker
H4/2 Right front door speaker
H4/5 Left rear door speaker
H4/6 Right rear door speaker
H4/23 Left front door mirror triangle speaker
H4/24 Right front door mirror triangle speaker
H4/27 Center cockpit speaker (centerfill)
H4/29 Subwoofer
H4/54 Left rear surround speaker
H4/57 Right rear surround speaker

Location
- The left front door speaker is located in the left front door at the bottom behind the door trim.
- The left rear door speaker is located in the left rear door at the bottom behind the door trim.
- The left front door speaker, mirror triangle is located in the left door in the mirror triangle behind the door trim.
- The right front door speaker is located in the right front door at the bottom behind the door trim.
- The right rear door speaker is located in the right rear door at the bottom behind the door trim.
- The right front door speaker, mirror triangle is located in the right door in the mirror triangle behind the door trim.
- The center cockpit speaker (Centerfill) is located in the top middle of the dashboard.
- The subwoofer speaker is located on the left side of the trunk behind the side paneling.
- The left rear surround speaker is located on the left side of the subwoofer speaker in the trunk underneath the side paneling.
- The right rear surround speaker is located on the right side of the trunk below the side paneling.

Task
- Receiving signals
- Converting signals
- Transmitting signals

Receiving signals
Direct lines
- Electrical signals (frequency) from the sound system amplifier (N40/3) over direct lines

Converting signals
- Conversion of electrical signals (frequency) into acoustic (audible) signals for following actions:
- Voice output, except code (523) MB Audio 20 radio
- Handsfree talking, with code (386) Mobile phone
- Output of audio applications

Transmitting signals
No signals are transmitted in this sense.
Only acoustic (audible) signals are output, which are transmitted by means of sound waves.
