AN82.64-P-0001-02PA Retrofitting CD Changer In Stowage Compartment

AN82.64-P-0001-02PA Retrofitting CD Changer In Stowage Compartment
- Models 203.0, 203.2, 203.7

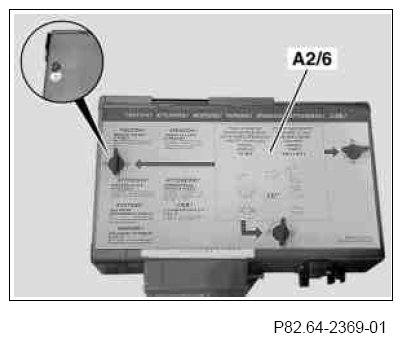

1 Remove the three transport securing devices on the underside of the CD player with changer (in the glove compartment) (A2/6) as per the instructions.
2 Seal the openings in the transport securing devices with the stickers enclosed (see enlarged section).






3 Pull the protective cap off the connection for the fiber optical cable (see arrow) on the back of the CD player with changer (in the glove compartment) (A2/6)

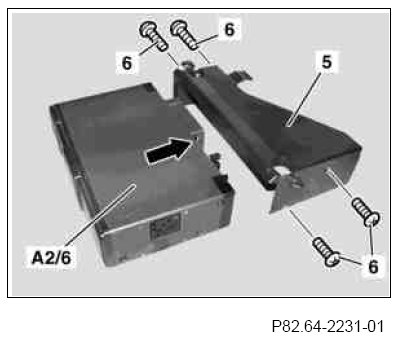

4 Slide the CD player with changer (in the glove compartment) (A2/6) into the bracket (5) (see arrow) and tighten securely with four M4 x 6 screws (6).

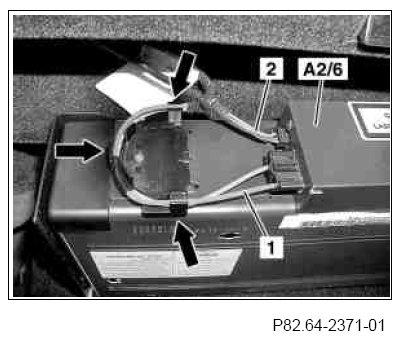

5 Contact the wiring harness for the fiber optical cable (1) and the wiring harness for the CD changer (2) to the CD player with changer (in the glove compartment) (A2/6) as per the figure.
6 Clip the wiring harness for the fiber optical cable (1) into the guides provided (see arrows).

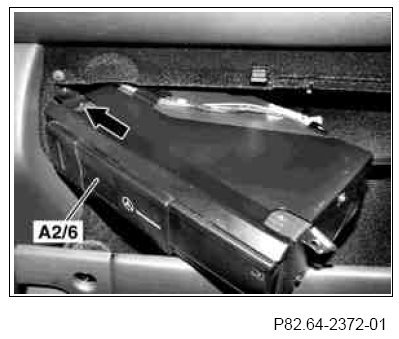

7 Slide the CD player with changer (in the glove compartment) (A2/6) with the fixing lug on the left side (see arrow) into the existing fixing hole in the glove compartment.

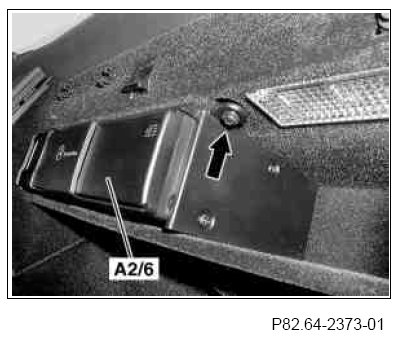

8 Screw on the CD player with changer (in the glove compartment) (A2/6) using a 5x16 sheet metal screw (see arrow).
