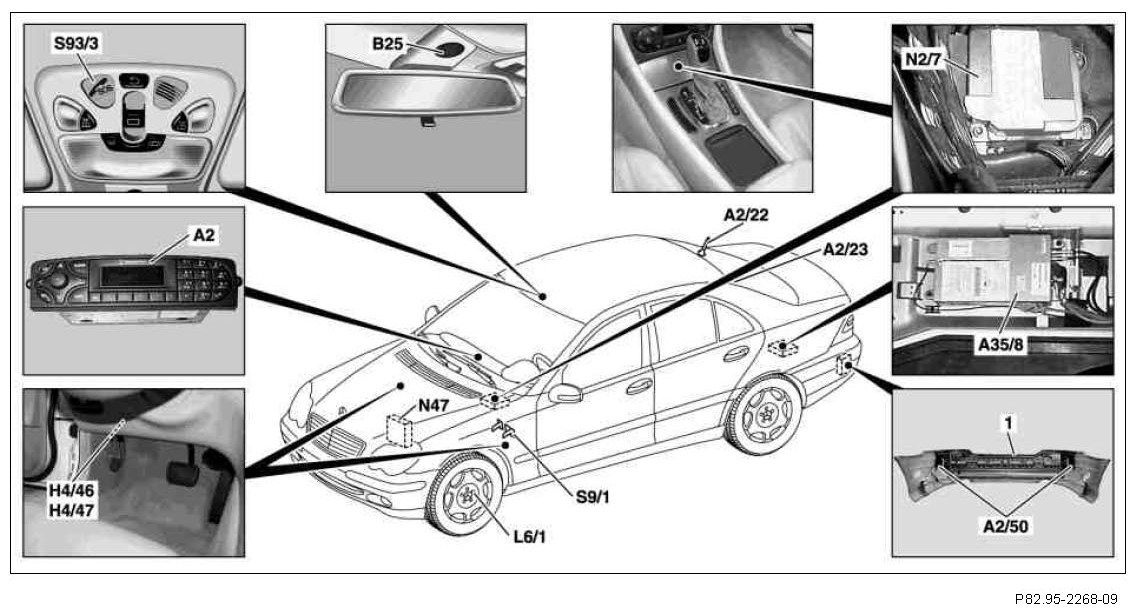

GF82.95-P-0003-01AF Emergency Call (E-Call), Location of Components

GF82.95-P-0003-01AF Emergency Call (E-Call), Location Of Components
MODEL 203
- with CODE (349) E Call emergency call system
- with CODE (498) Japan version
- up to Model Year 8







1 Bumper A2 Radio (Audio 30)
A2/22 Telephone antenna
A2/23 GPS antenna
A2/50 EMERGENCY CALL spare antenna
A35/8 E-call control module
B25 Hands-free system microphone
H4/46 Right front emergency call loudspeaker
H4/47 Left front emergency call loudspeaker
L6/1 Left front speed sensor
N2/7 Restraint system control module
N47 Traction system control module
S9/1 Stop lamp switch
S93/3 Emergency call pushbutton
