Operating Central Locking With Transmitter Key

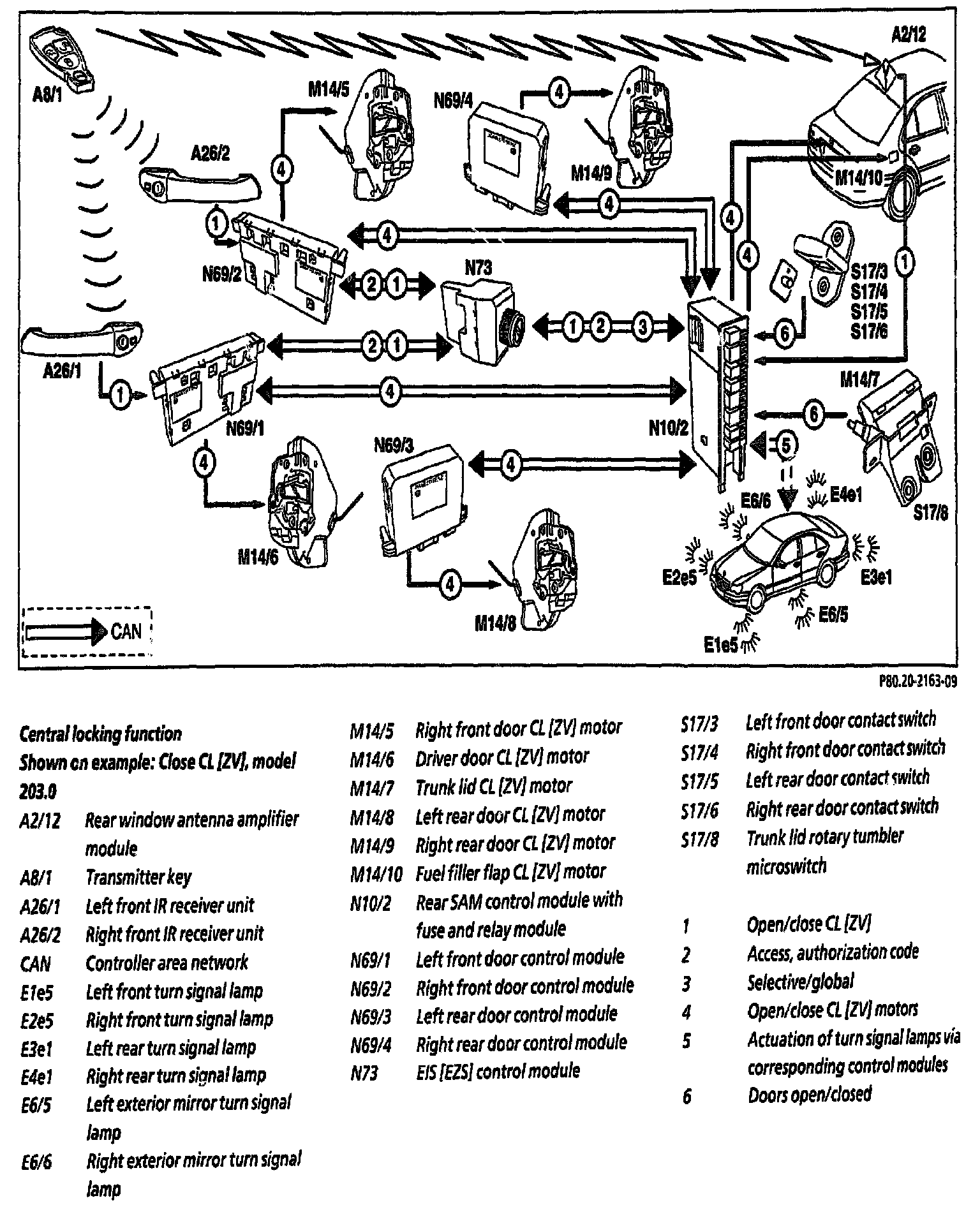

Central Locking Function Shown On Example: Close CL[ZV], Model 203.0

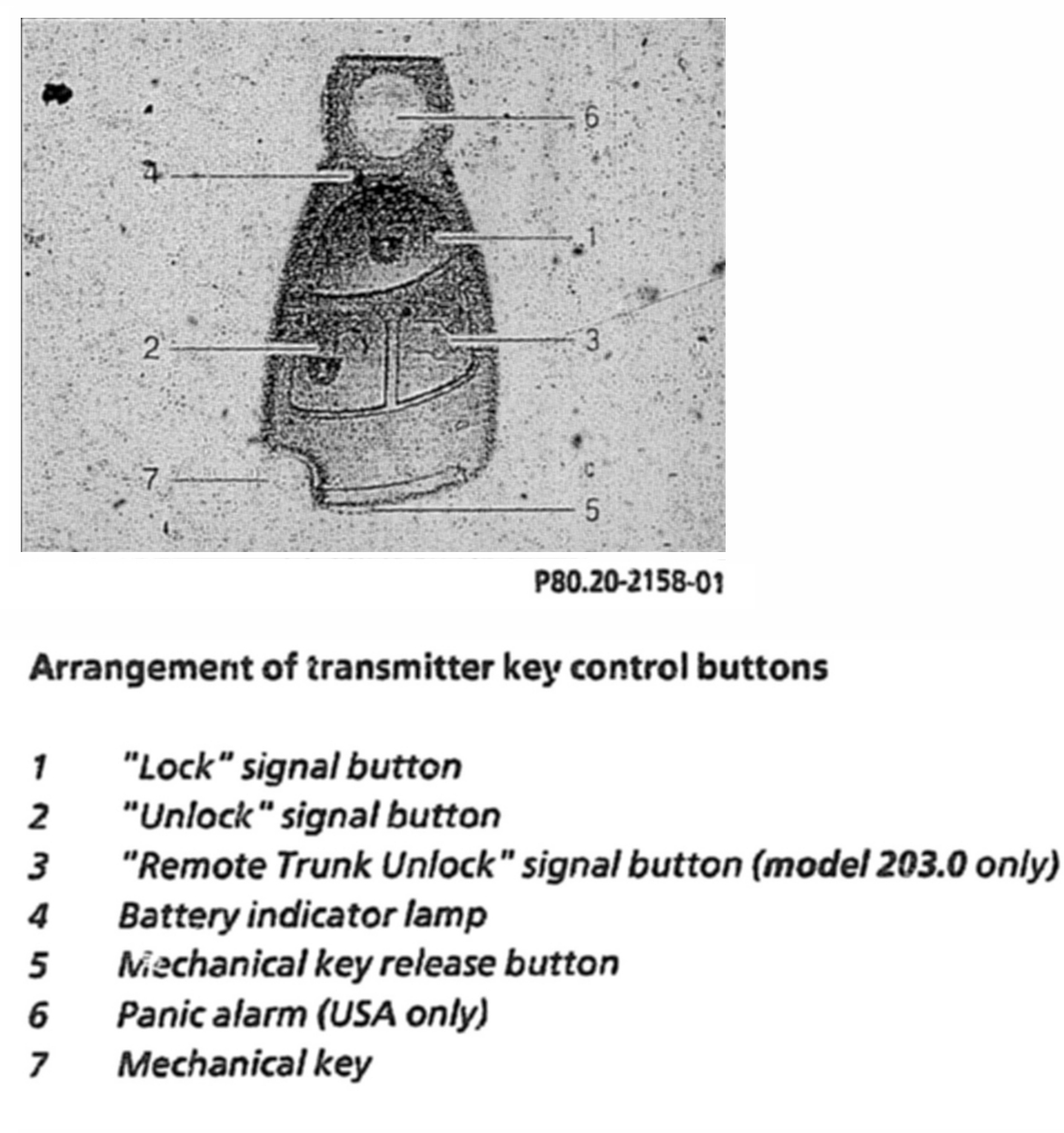

Arrangement of transmitter key control buttons:

The transmitter key consists of an electronic component and a mechanical key. The electronic component contains an FM radio transmitter, an infrared transmitter and receiver unit, a computer chip, the control buttons and a battery.

The transmitter key can be used to remotely perform any of the following operations:
Global unlocking (entire vehicle),
Selective unlocking (driver's door, fuel filler door),
Global locking

The turn signal lamps will flash once when the "Unlock" signal is received either selective or global mode.

The turn signal lamps will flash three times when the "Lock" signal is received.


NOTE: Model 203.0 only. Activating the remote trunk release function using the remote control does not activate the central locking system (i.e. no unlocking). The interior CL[ZV] switch is not enabled and the vehicle is not unlocked. Once the trunk lid has been closed, it can only be reopened by pressing the button again or by using the key.
