GF80.50-P-0001-02PP Anti-Theft Alarm System (ATA [EDW]), Location of Components

GF80.50-P-0001-02PP Anti-Theft Alarm System (ATA [EDW]), Location Of Components
MODEL 203.0 /2 /7 up to 23.4.04
- with CODE (551a) Anti-theft alarm system (ATA)







Shown model 203.2

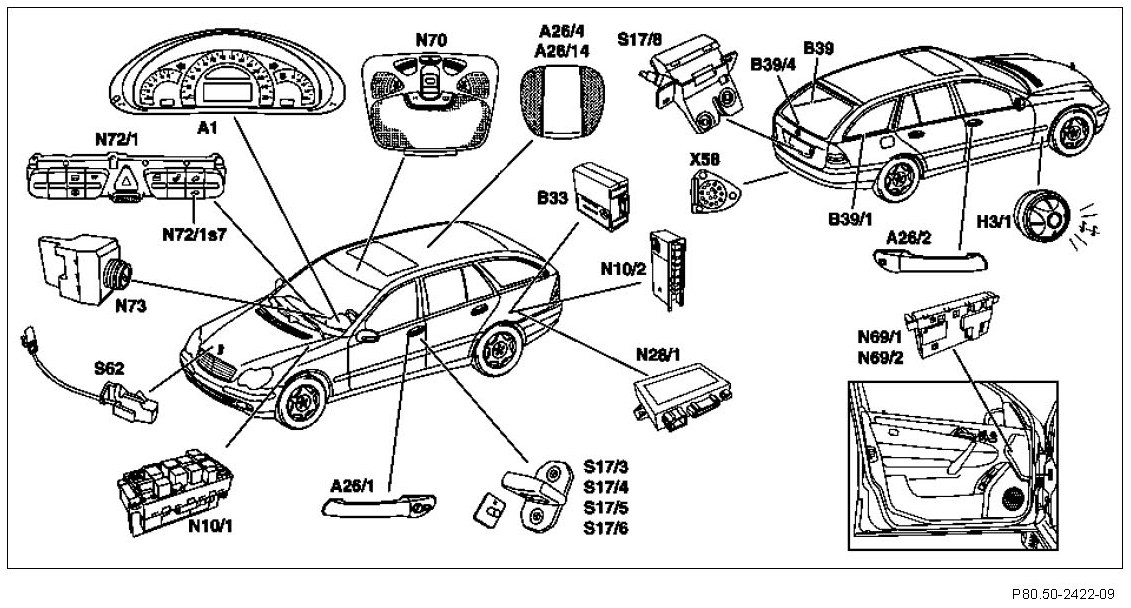

A1 Instrument cluster
A26/1 Left front IR receiver
A26/2 Right front IR receiver (only United States of America and Japan)
A26/4 Left interior motion sensor transmitter and receiver (on model 203.7 with code (882b) Interior monitoring (only with ATA))
A26/14 Interior motion sensor transmitter and receiver (on model 203.0/2 with code (882b) Interior monitoring (only with ATA))
B33 ATA [EDW] inclination sensor
B39 Left rear window glass breakage sensor (on model 203.2 with code (882b) Interior monitoring (only with ATA))
B39/1 Right rear window glass breakage sensor (on model 203.2 with code (882b) Interior monitoring (only with ATA))
B39/4 Rear window glass breakage sensor (on model 203.2/7 with code (882b) Interior monitoring (only with ATA))
H3/1 Alarm signal horn with additional battery
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N28/1 Trailer recognition control unit (with code (550) Trailer hitch)
N69/1 Left front door control unit
N69/2 Right front door control unit
N70 Overhead control panel control unit
N72/1 Upper control panel control unit
N72/1s7 TS [AS]/IMS [IRS] switch with ATA [EDW] function display
N73 EIS control unit
S17/3 Left front door contact switch
S17/4 Right front door contact switch
S17/5 Left rear door contact switch (on model 203.0/2)
S17/6 Right rear door contact switch (on model 203.0/2)
S17/8 Trunk lid rotary tumbler microswitch
S62 ATA [EDW] hood switch
X58 Trailer hitch socket, 13-pin (with code (550) Trailer hitch)
