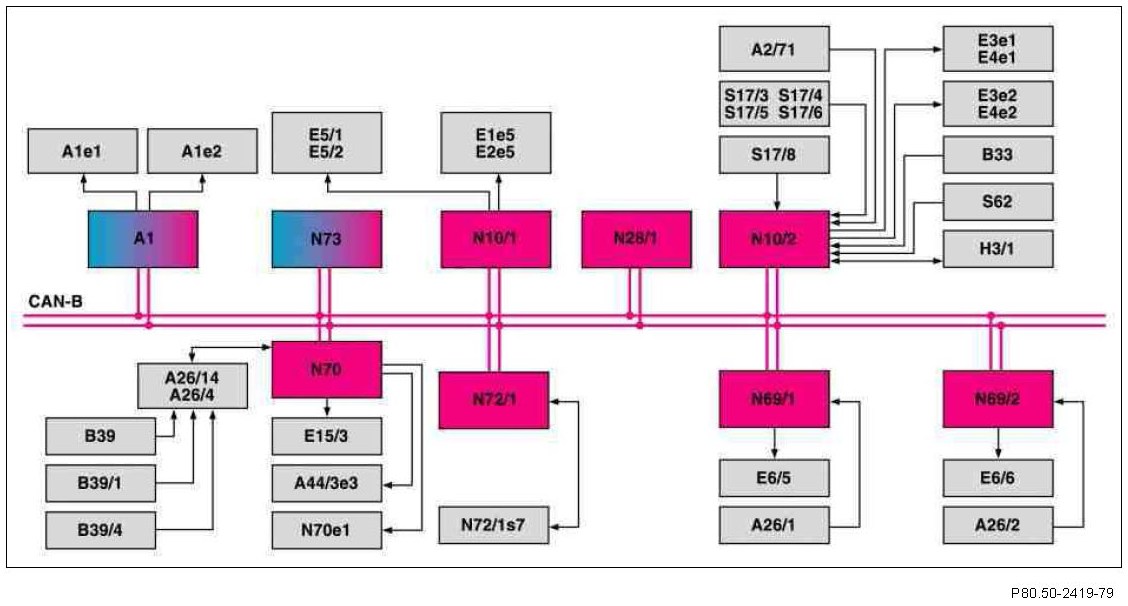

GF80.50-P-0001-01P Anti-Theft Alarm System (ATA [EDW]), Block Diagram

GF80.50-P-0001-01P Anti-Theft Alarm System (ATA [EDW]), Block Diagram
MODEL 203.0 /2 /7 up to 23.4.04
- with CODE (551a) Anti-theft alarm system (ATA)







A1 Instrument cluster
A1E1 Left turn signal indicator lamp (except United States of America)
A1E2 Right turn signal indicator lamp (except United States of America)
A2/71 Window antenna amplifier module 1
A26/1 Left front IR receiver unit
A26/2 Right front IR receiver unit (only United States of America and Japan)
A26/4 Left Interior monitoring transmitter and receiver (on model 203.7 with code (882b) Interior monitoring (only with ATA))
A26/14 Interior motion sensor transmitter and receiver (on model 203.0/2 with code (882b) Interior monitoring (only with ATA))
A44/3E3 Dome lamp (on model 203.0/2 with code (220a) Parktronic system (PTS))
B33 ATA [EDW] inclination sensor
B39 Left rear window glass breakage sensor (on model 203.2 with code (882b) Interior monitoring (only with ATA))
B39/1 Right rear window glass breakage sensor (on model 203.2 with code (882b) Interior monitoring (only with ATA))
B39/4 Rear window glass breakage sensor (on model 203.2/7 with code (882b) Interior monitoring (only with ATA))
E1e5 Left turn signal lamp (except United States of America)
E2e5 Right turn signal lamp (except United States of America)
E3E1 Left turn signal lamp (except United States of America)
E3E2 Left taillamp and parking lamp (only United States of America)
E4E1 Right turn signal lamp (except United States of America)
E4E2 Right taillamp and parking light (only United States of America)
E5/1 Left fog lamp (only )
E5/2 Right fog lamp (only United States of America)
E6/5 Left outside mirror turn signal lamp (except United States of America)
E6/6 Right outside mirror turn signal lamp (except United States of America)
E15/3 Rear dome lamp (model 203.7, model 203.0/2 without code (220a) Parktronic system (PTS))
H3/1 Alarm signal horn with additional battery
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N28/1 Trailer recognition control unit (with code (550) Trailer hitch)
N69/1 Left front door control unit
N69/2 Right front door control unit
N70 Overhead control panel control unit
N70E1 Front dome lamp
N72/1 Upper control panel control unit
N72/1s7 TS [AS]/IMS [IRS] switch with ATA [EDW] function display
N73 EIS control unit
S17/3 Left front door contact switch
S17/4 Right front door contact switch
S17/5 Left rear door contact switch (not model 203.7)
S17/6 Right rear door contact switch (not model 203.7)
S17/8 Trunk lid rotary tumbler microswitch
S62 ATA [EDW] hood switch
CAN B Controller Area Network bus, class B (interior compartment) (CAN B)
