Antenna, Navigation: Service and Repair

AN82.61-P-7474-04PA Retrofitting Antenna For Global Positioning System (GPS)
- for Navigation system APS 30






1 Glue felt strap to bottom of GPS antenna (A2/49a2).

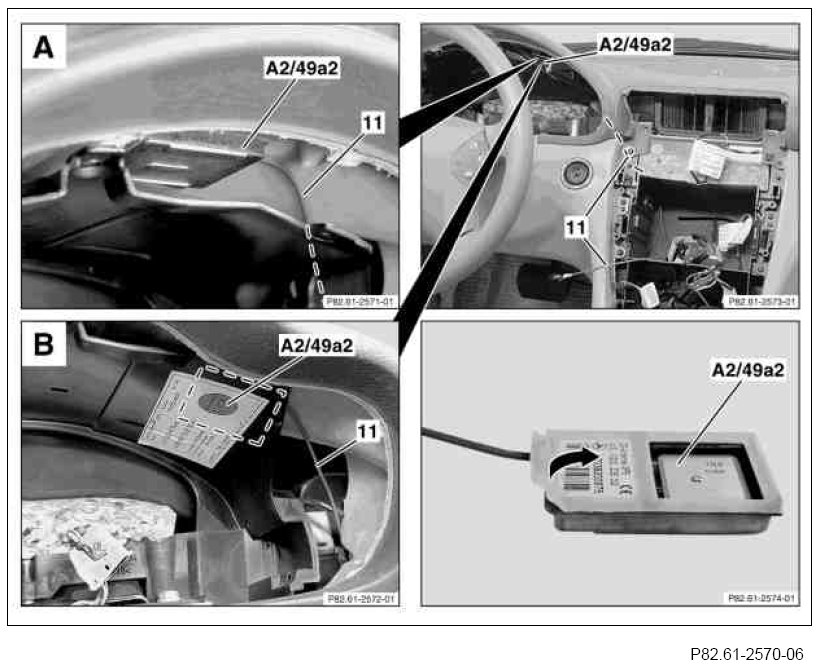

2 Remove backing foil from GPS antenna (A2/49a2) and glue antenna to right inner side of instrument cluster cover.
Opening of antenna should point toward vehicle window.

3 Route antenna lead (11) to radio shaft in center console

A Location of GPS antenna on model 203.0/2
B Location of GPS antenna on model 203.7

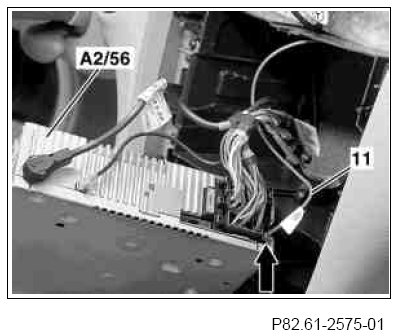

4 Connect antenna lead (11) to GPS connector of radio and navigation unit (A2/56) (see arrow).
5 Reassemble radio and navigation unit (A2/56) with antenna and connector leads
