Home >> Mercedes Benz >> 2002 >> C 230 Kompressor (203.747) L4-2.3L SC (111.981) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antenna >> Antenna, Navigation >> Description and Operation >> GF82.61-P-4106F Global Positioning System Antenna, Location/Purpose/Design/Function

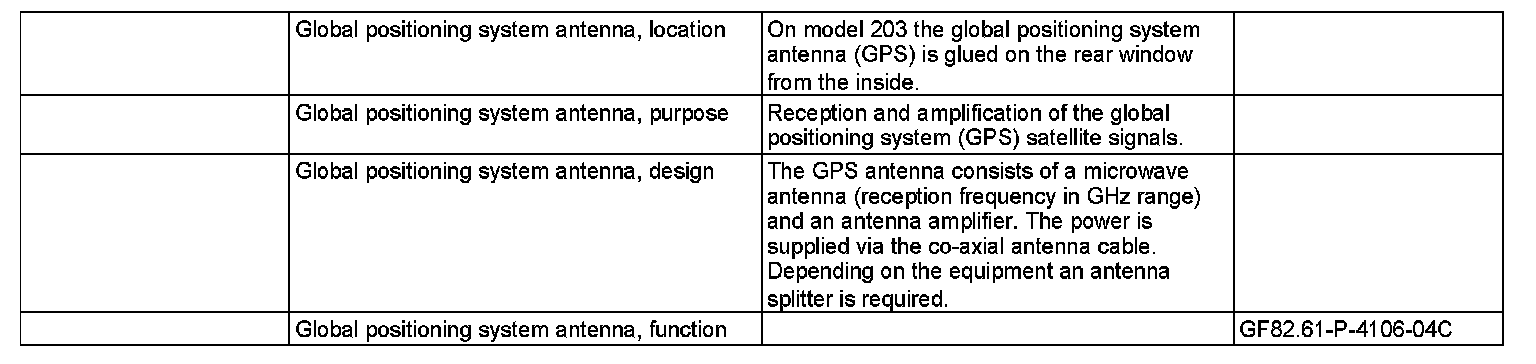

GF82.61-P-4106F Global Positioning System Antenna, Location/Purpose/Design/Function




GF82.61-P-4106F Global Positioning System Antenna, Location/Purpose/Design/Function

MODEL 203
- with CODE (349) Emergency call system EMERGENCY CALL
- with CODE (498) Japanese version

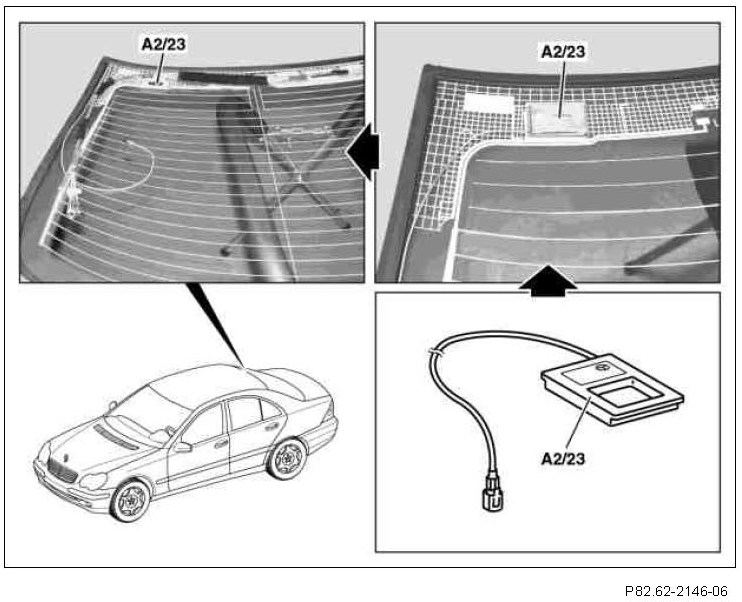

A2/23 GPS antenna
