Preparing For Test With Quiescent Current Retention Device - II

up to 01


Models 202, 208, 129
201 589 00 99 00 Electrical connecting set

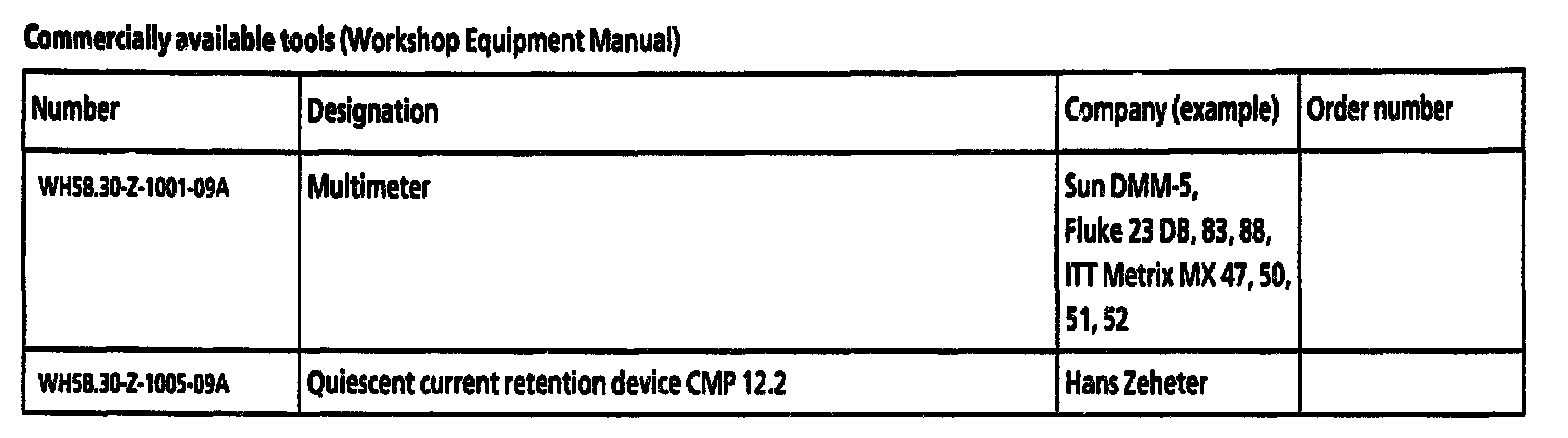

Commercially Available Tools:

Illustrated on model 202

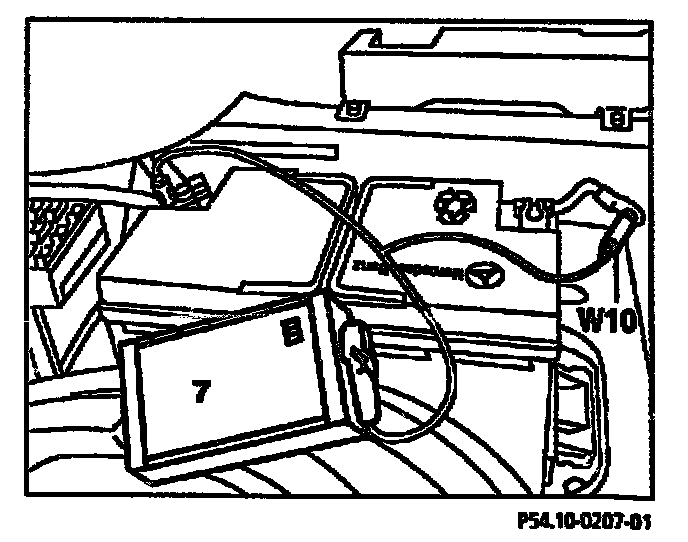

1 Connect quiescent current retention device (7) as follows:
- Connect positive lead terminal (+) to positive pole on battery.
- Connect negative terminal (-) to battery ground (W10).

2 Switch on quiescent current retention device (7).

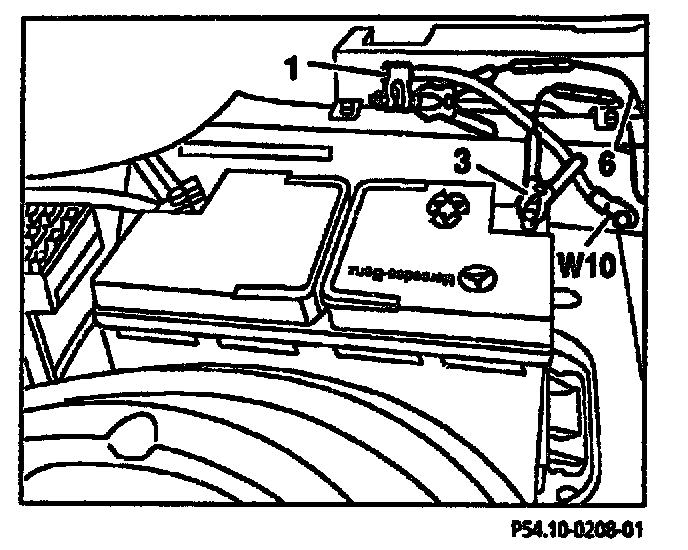

3 Disconnect negative pole terminal (1) on battery.

4 Connect multimeter (2) as follows using "electrical connection set":
- Connect positive (+) test cable to battery negative lead (1).
- Connect negative (-) test cable to battery negative pole (3).







5 Switch on multimeter (2) (amperes range).
6 Switch off quiescent current retention device (7) and disconnect.

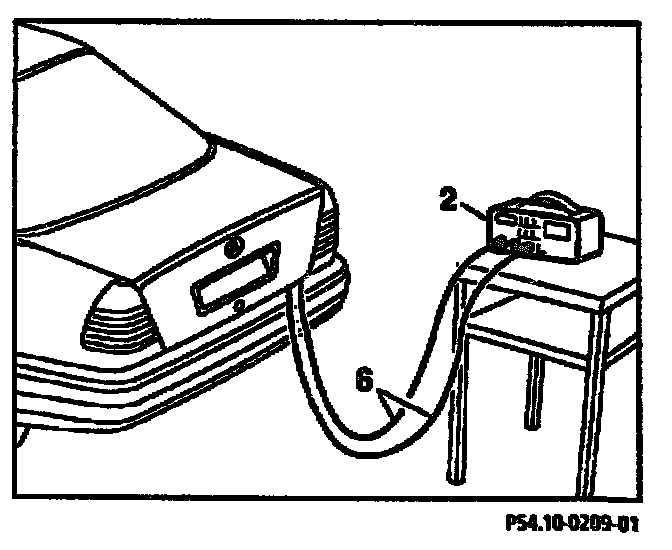

7 Route test cable (6) to right out of of trunk or cargo area.
8 Close trunk lid
