Battery, Power Supply PE54.10-U-2000YA
Battery, Power Supply PE54.10-U-2000YA

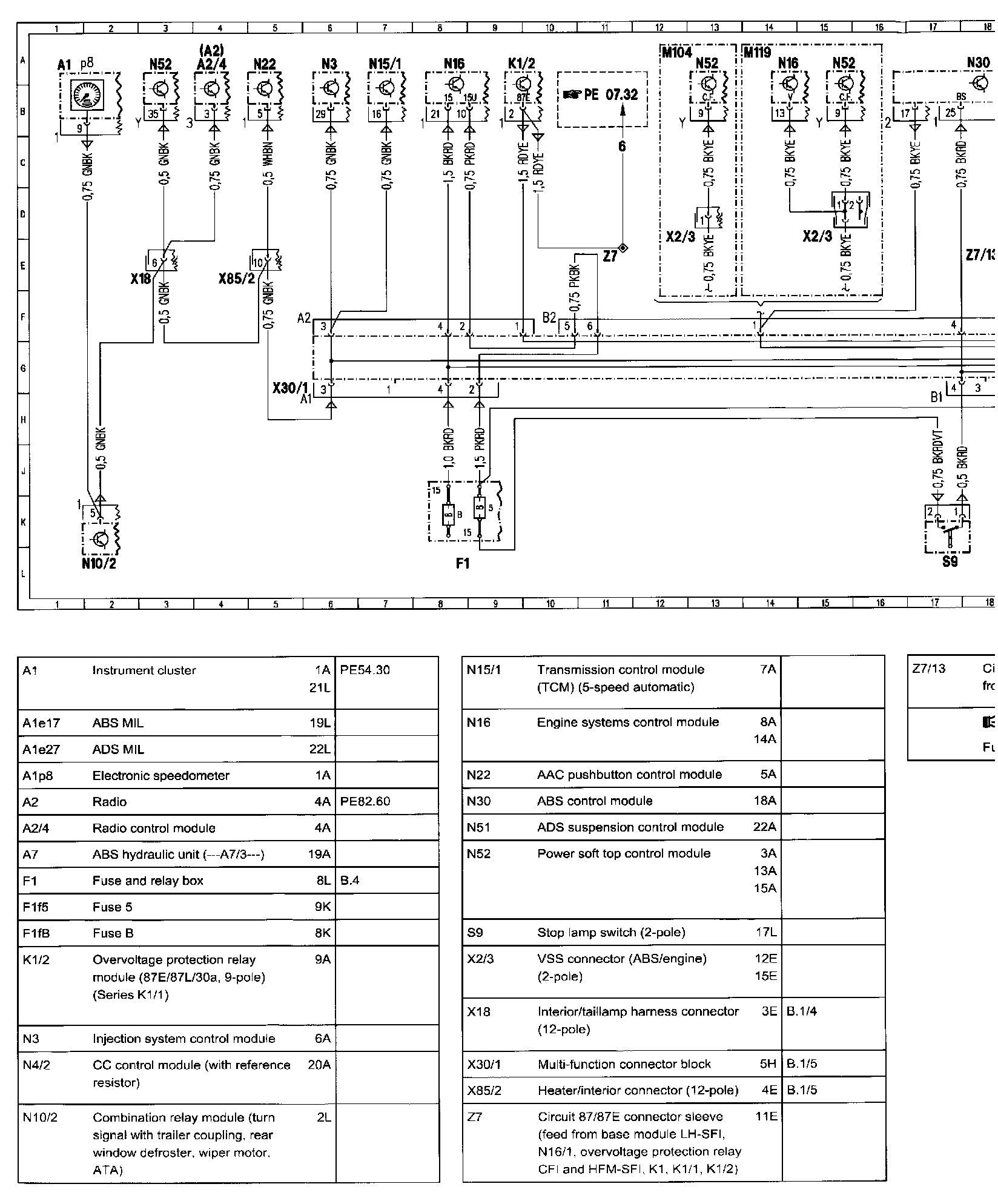

Battery, Power Supply (Vehicles With ABS, ADS, CC)
�F�PE54.10-U-2000YA:

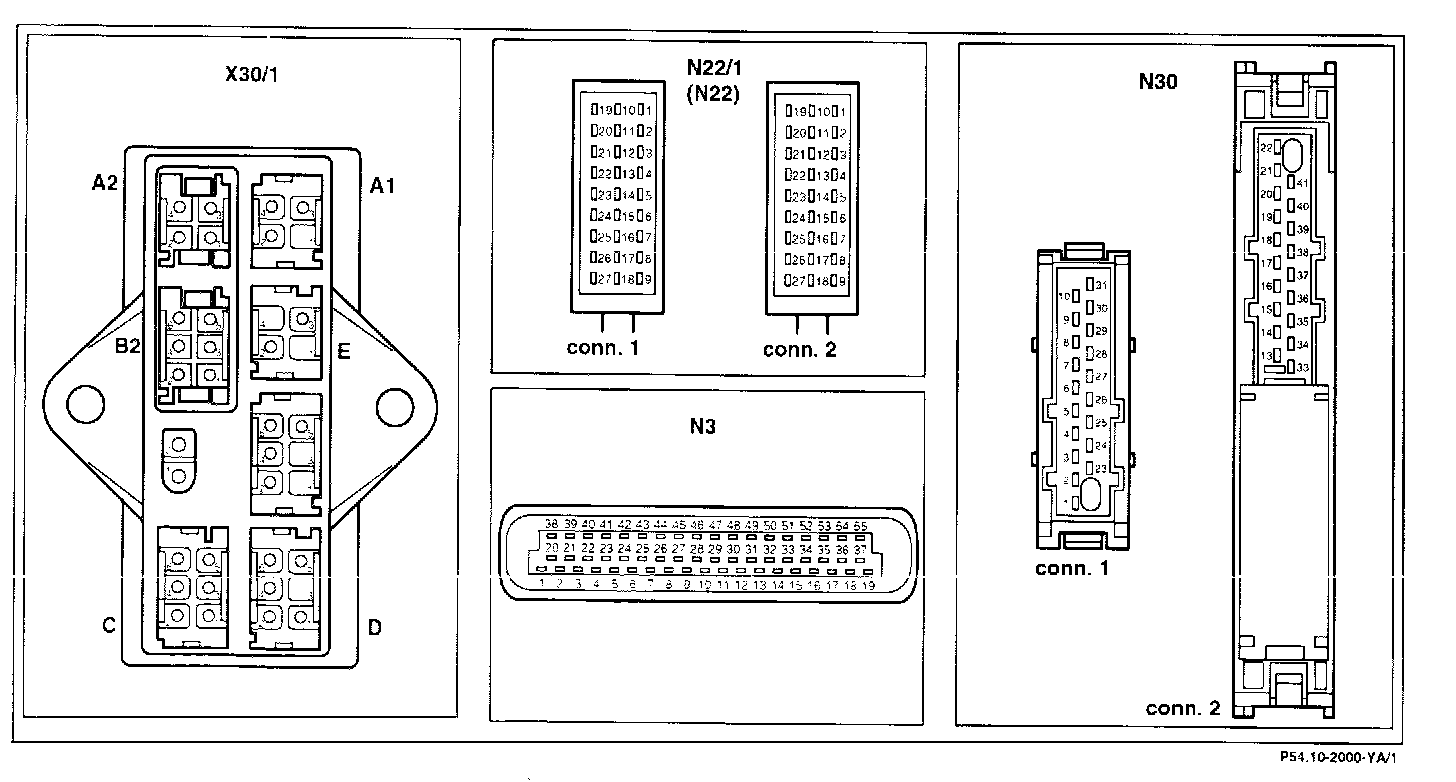

Connector Assignment:

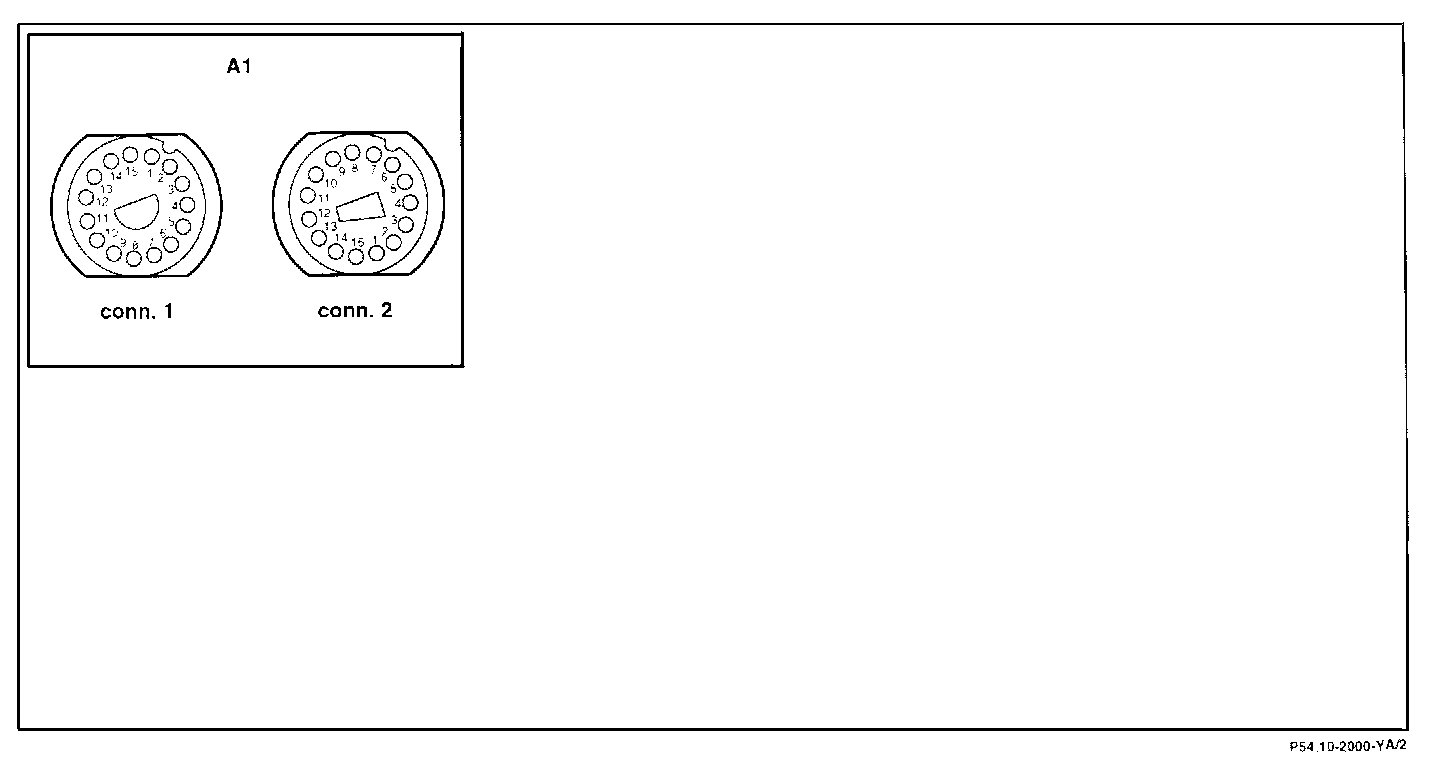

Connector Assignment:

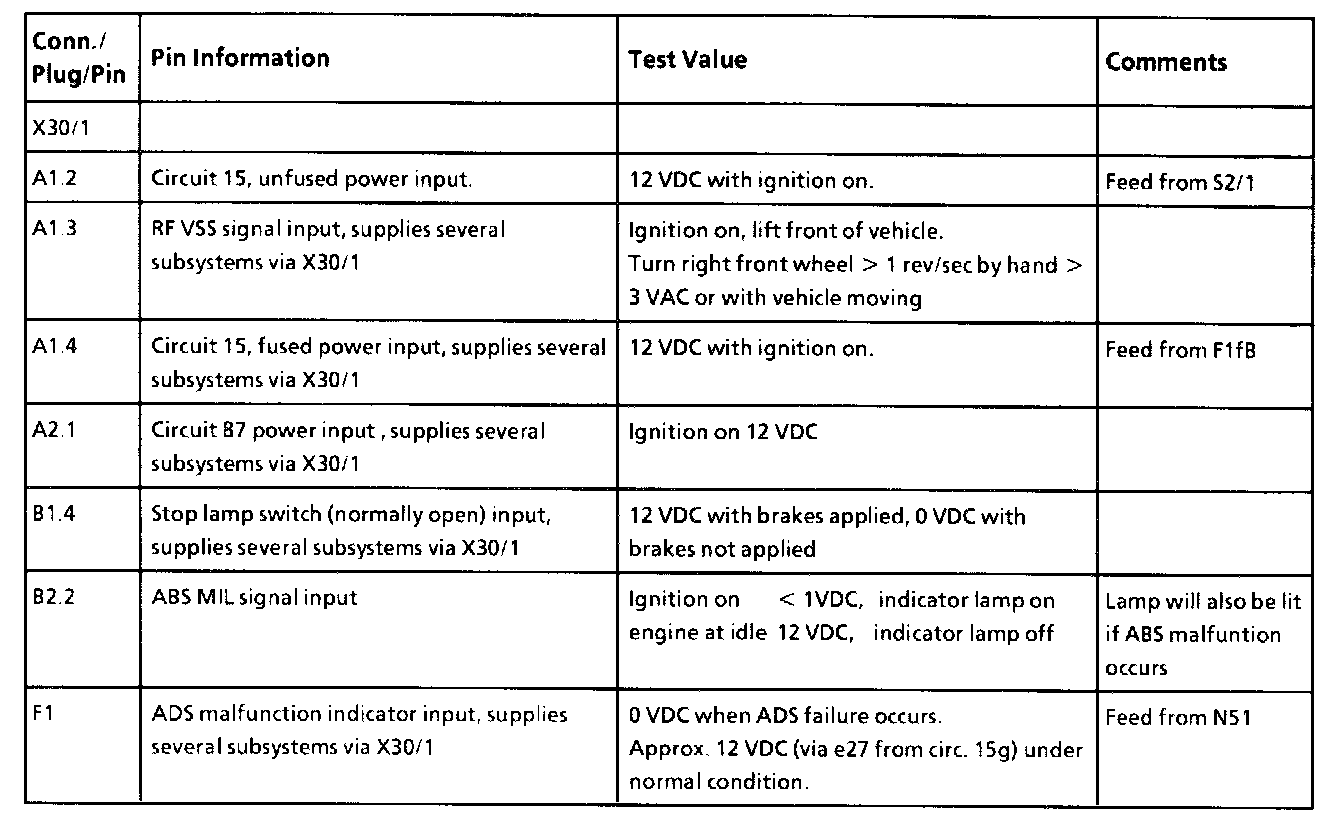

Pin Information:
