Top Compartment Open

Removal and installation of limit switch, top compartment cover open

Preliminary jobs:
Partition between fuel tank and trunk removed.






Removal

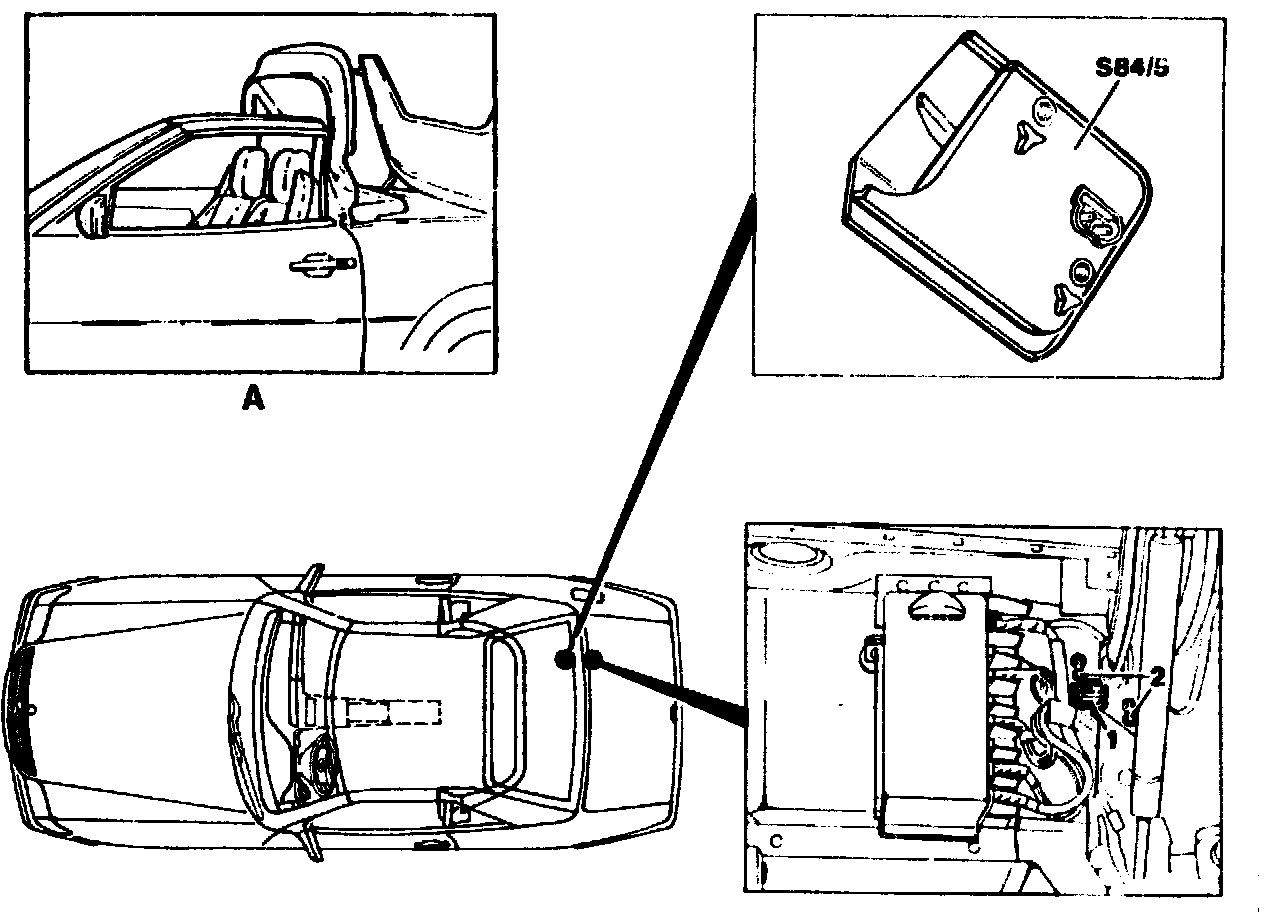

Top move to position A with top switch or manual actuation
Trunk open
Connector (1) pull off of limit switch
Screws (2) loosen
Limit switch (S84/5) push upward and remove out of oblong holes

Installation
Install in opposite order
