Vehicle Speed Signal (VSS) Inductive Sensor PE00.19-U-2030YA
Vehicle Speed Signal (VSS) Inductive Sensor PE00.19-U-2030YA

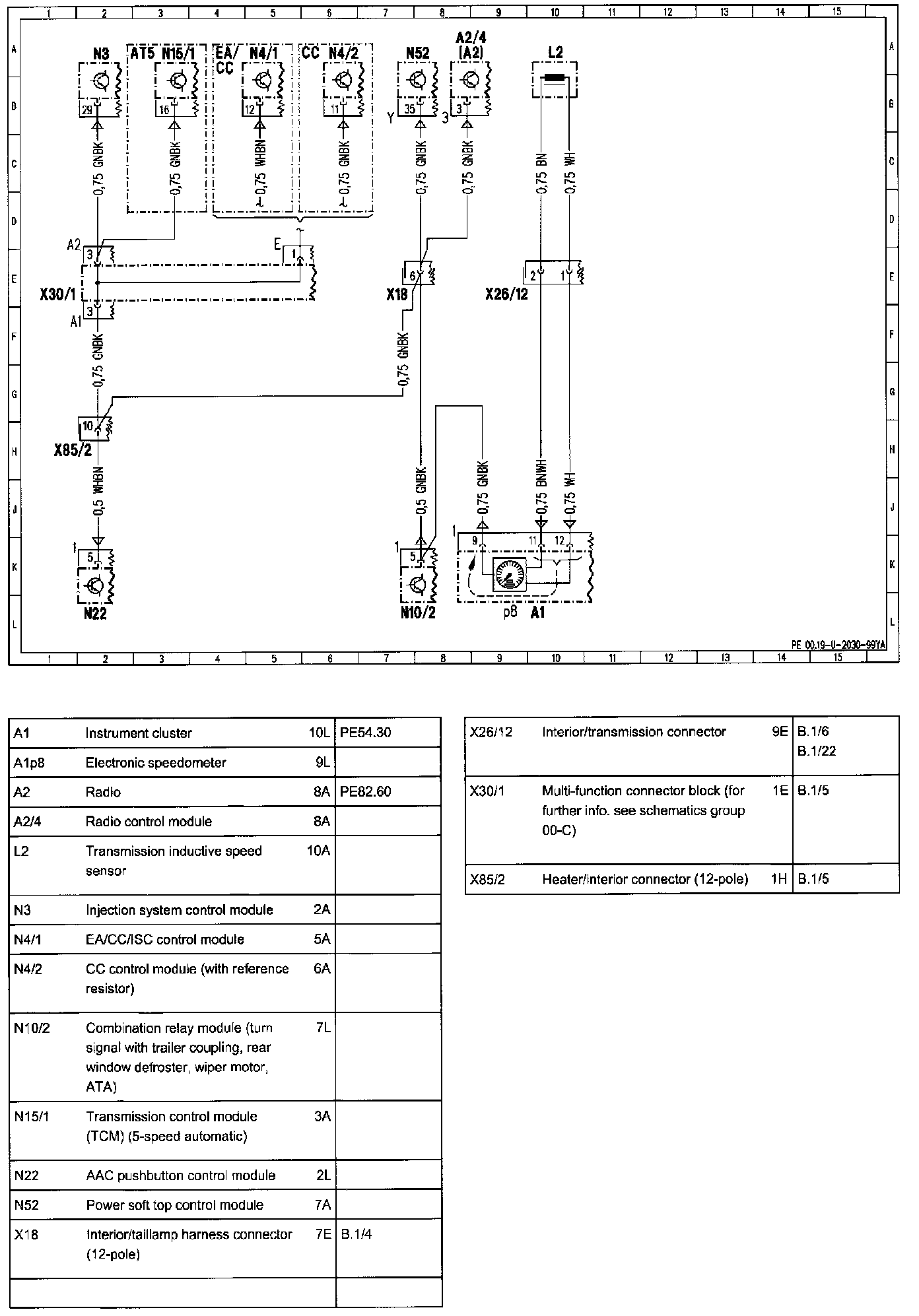

Vehicle Speed Signal Inductive Sensor
PE00.19-U-2030YA:

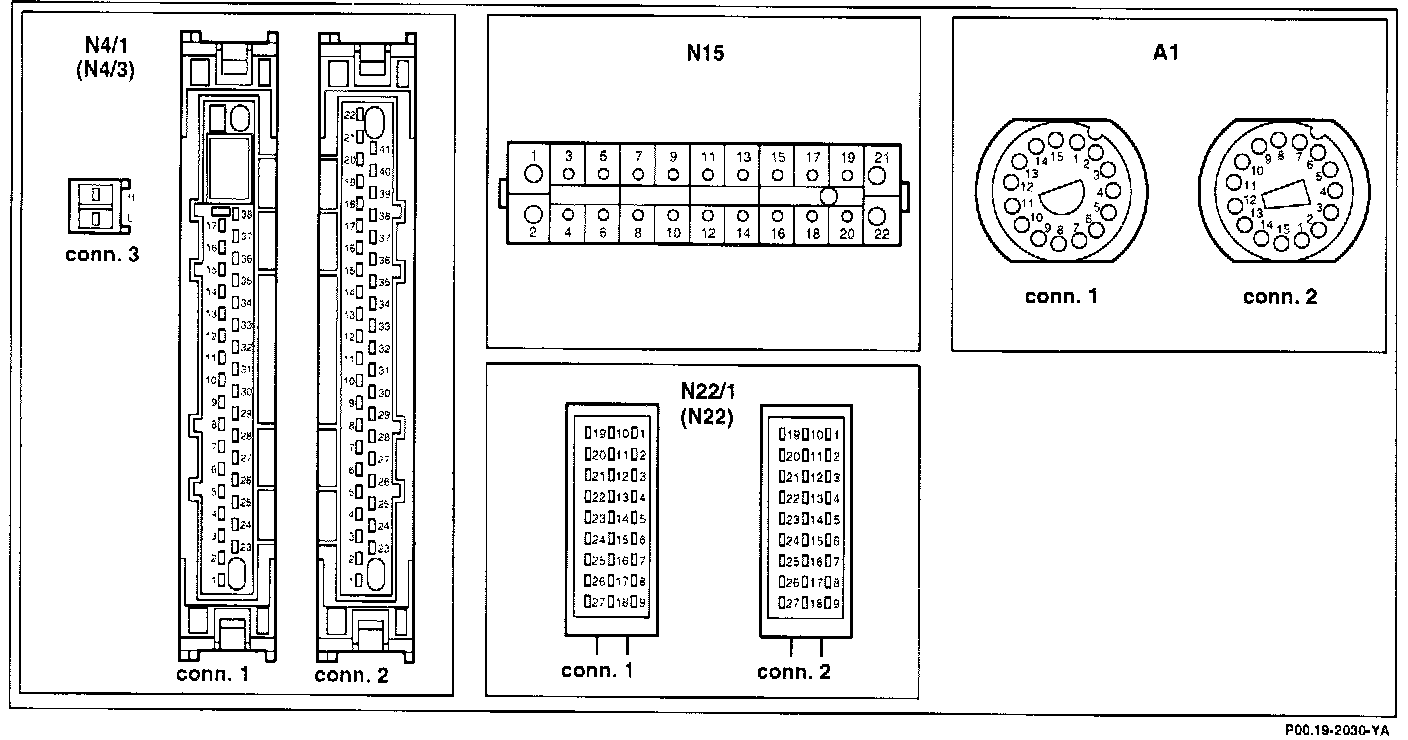

Connector Assignment:

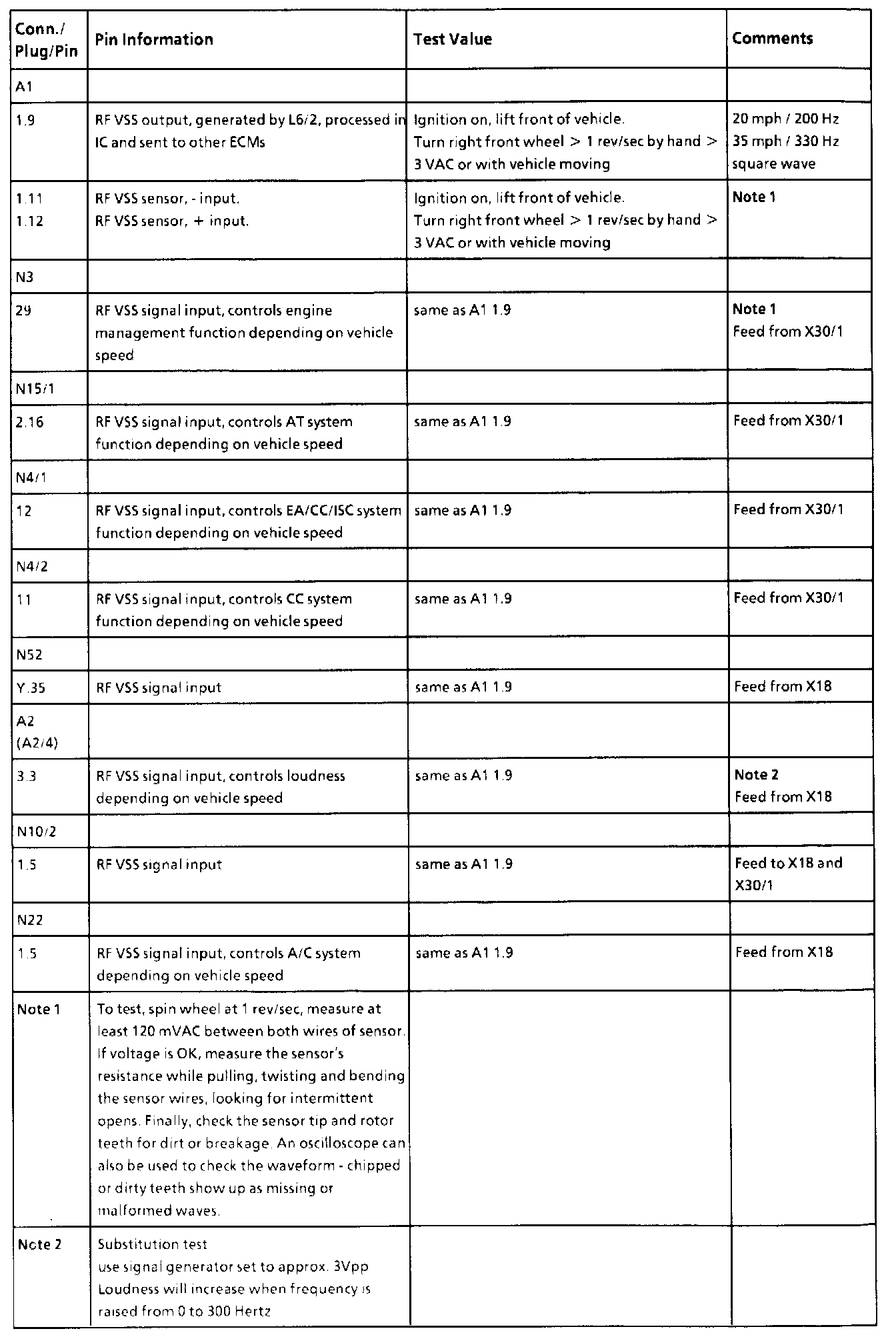

Pin Information:
