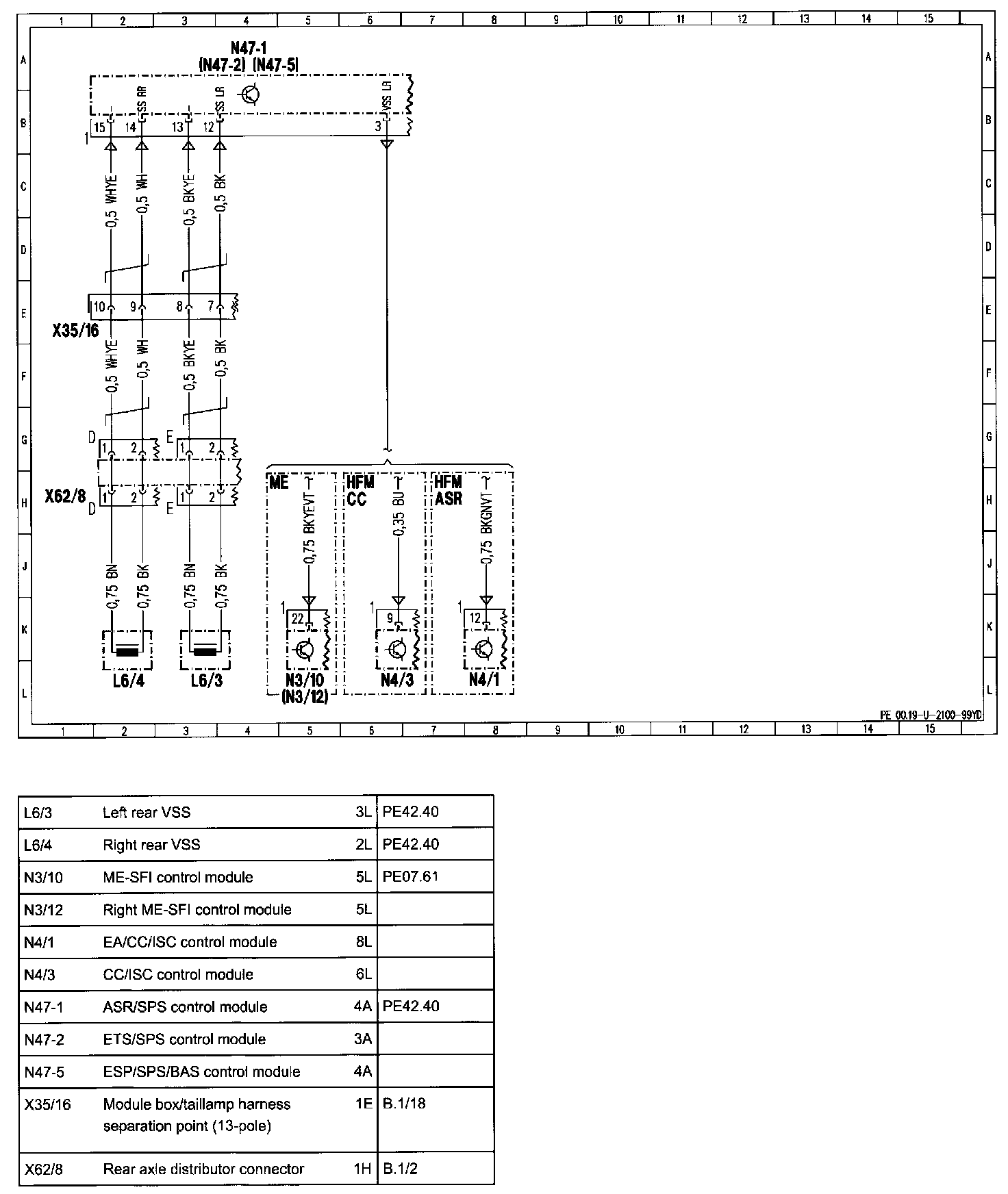

Left/Right Rear Axle Speed Signal (VSS) PE00.19-U-2100YD
Left/Right Rear Axle Speed Signal (VSS) PE00.19-U-2100YD
Rear Axle Vehicle Speed Signal (
VSS
)
PE00.19-U-2100YD - Left/Right Rear Axle VSS:

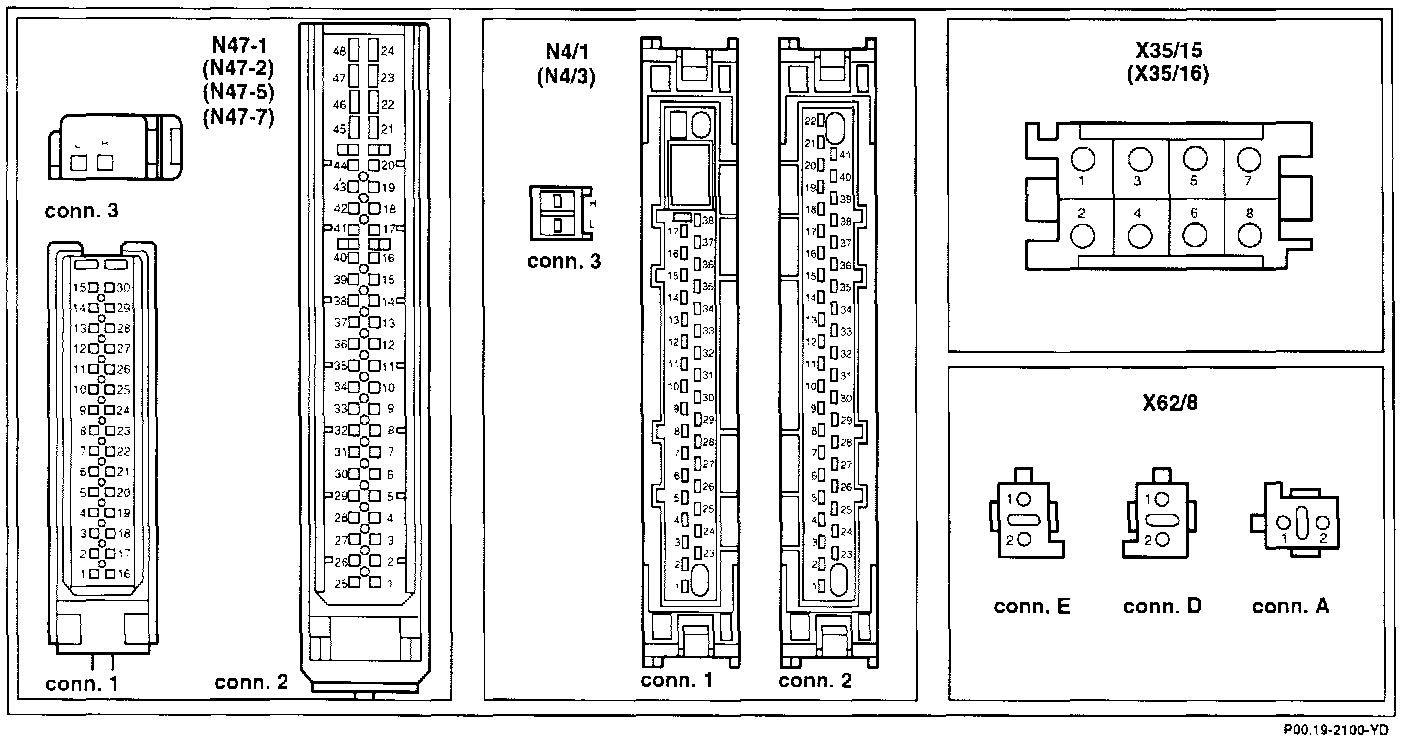

Connector Assignment:

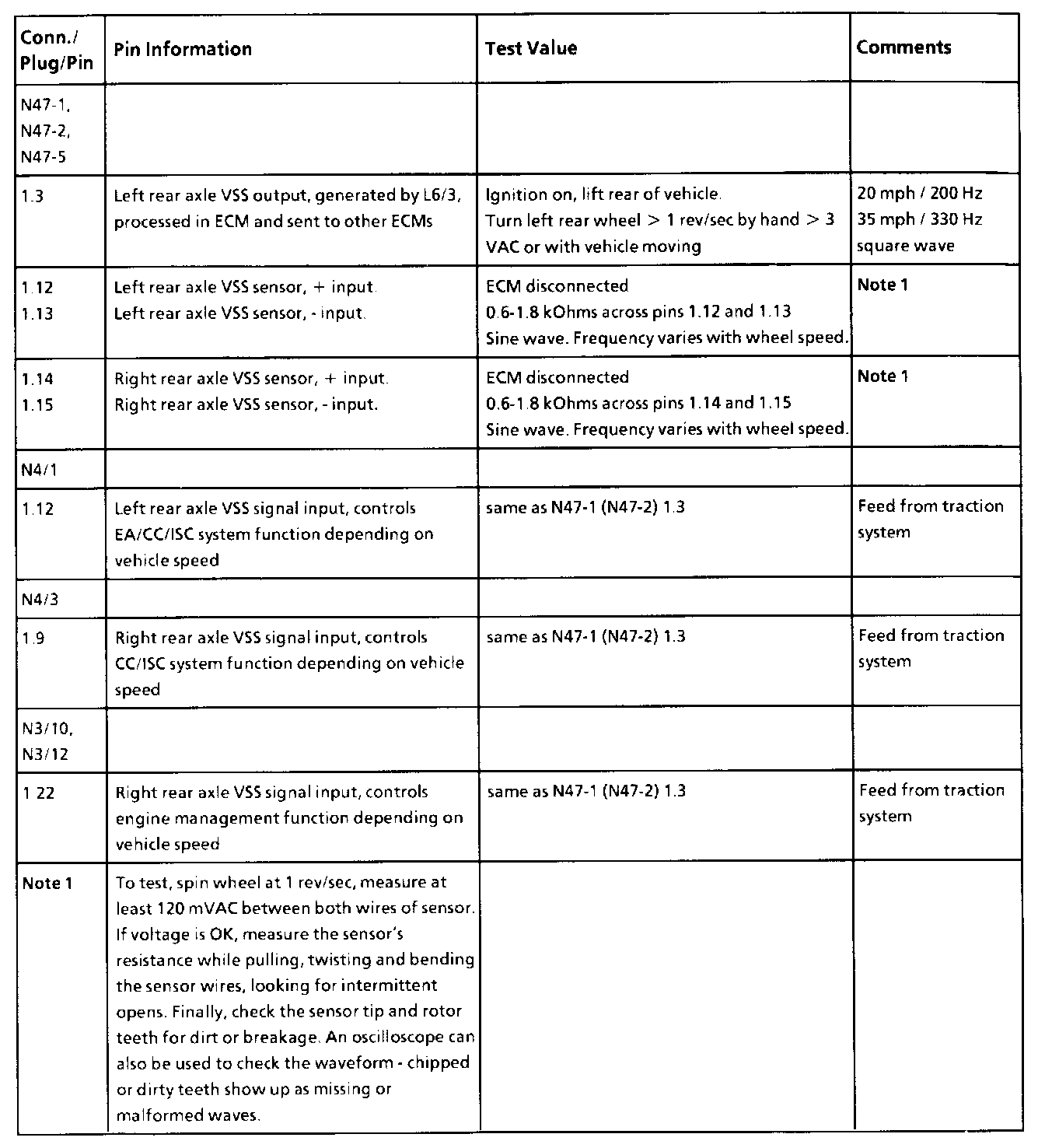

Pin Information:
