Mercedes Benz
>>
2001
>>
SL 500 (129.068) V8-5.0L (113.961)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>
Circuit 15R Wiring PE00.19-U-2722YB
Circuit 15R Wiring PE00.19-U-2722YB

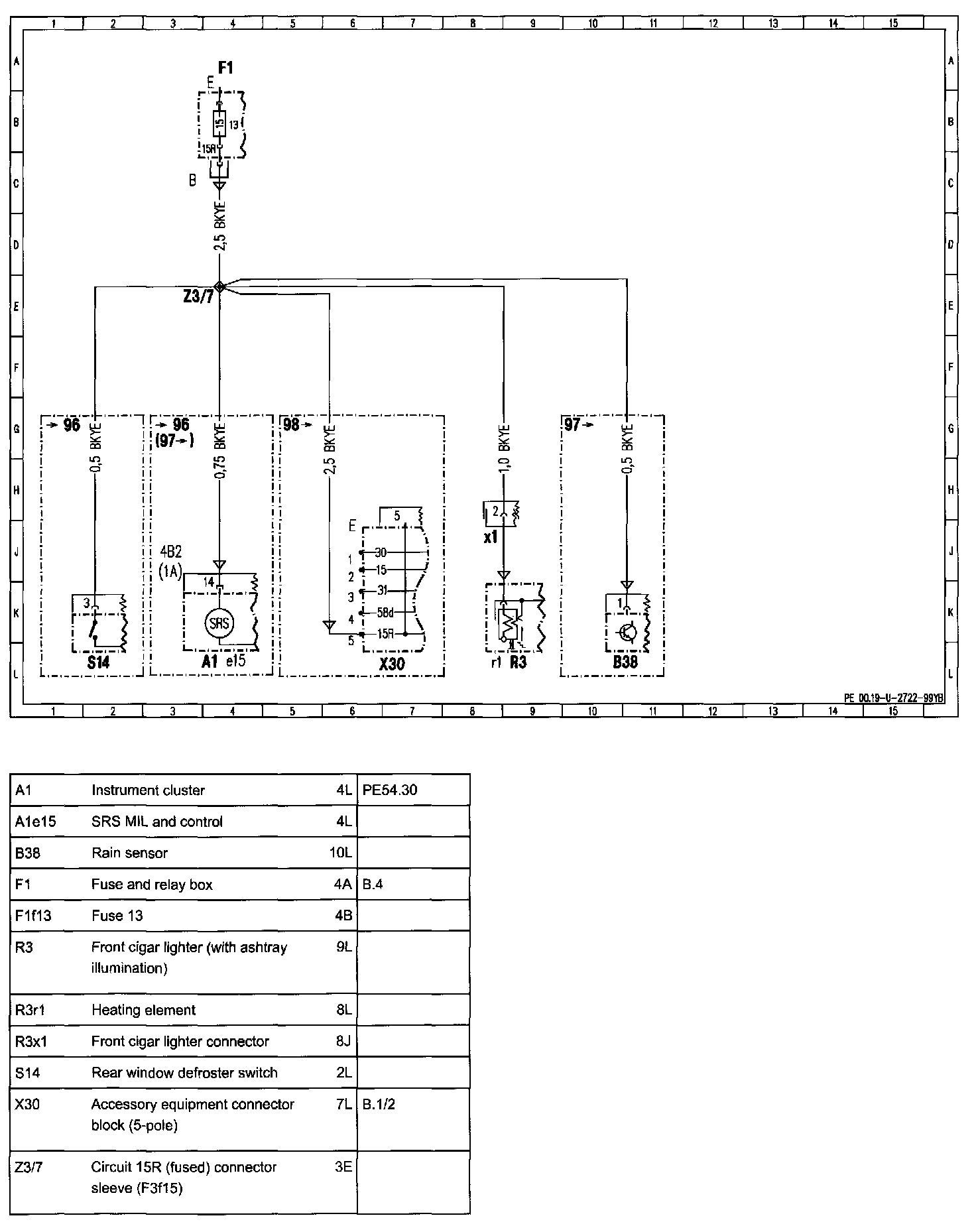

Circuit 15R Wiring (Voltage Distribution Via Connector Sleeve Z3/7)
PE00.19-U-2722YB:

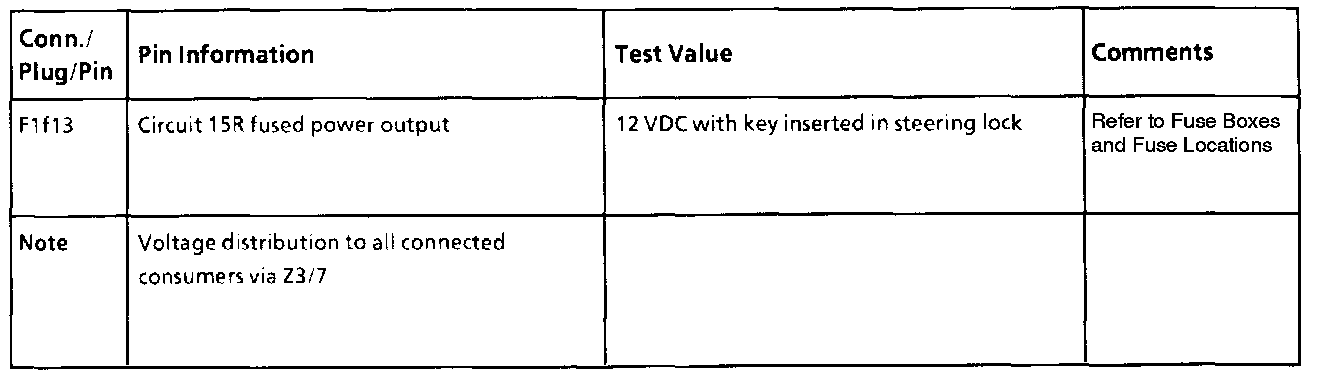

Pin Information:
