Airbag Control Module PE91.60-U-2000YD
Airbag Control Module PE91.60-U-2000YD

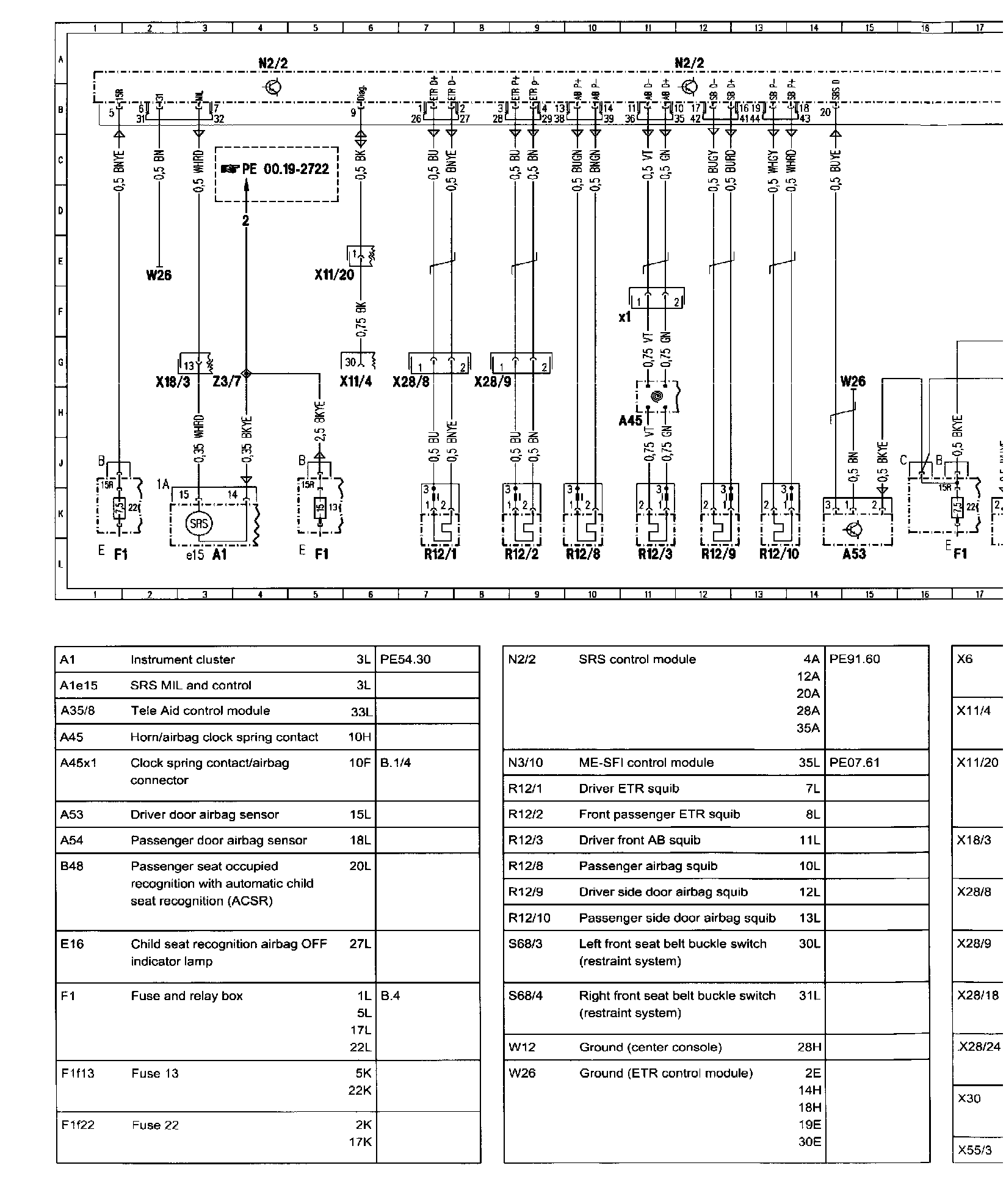

Airbags
�Z<̬<Airbag PE91.60-U-2000YD:
Connector Assignment:

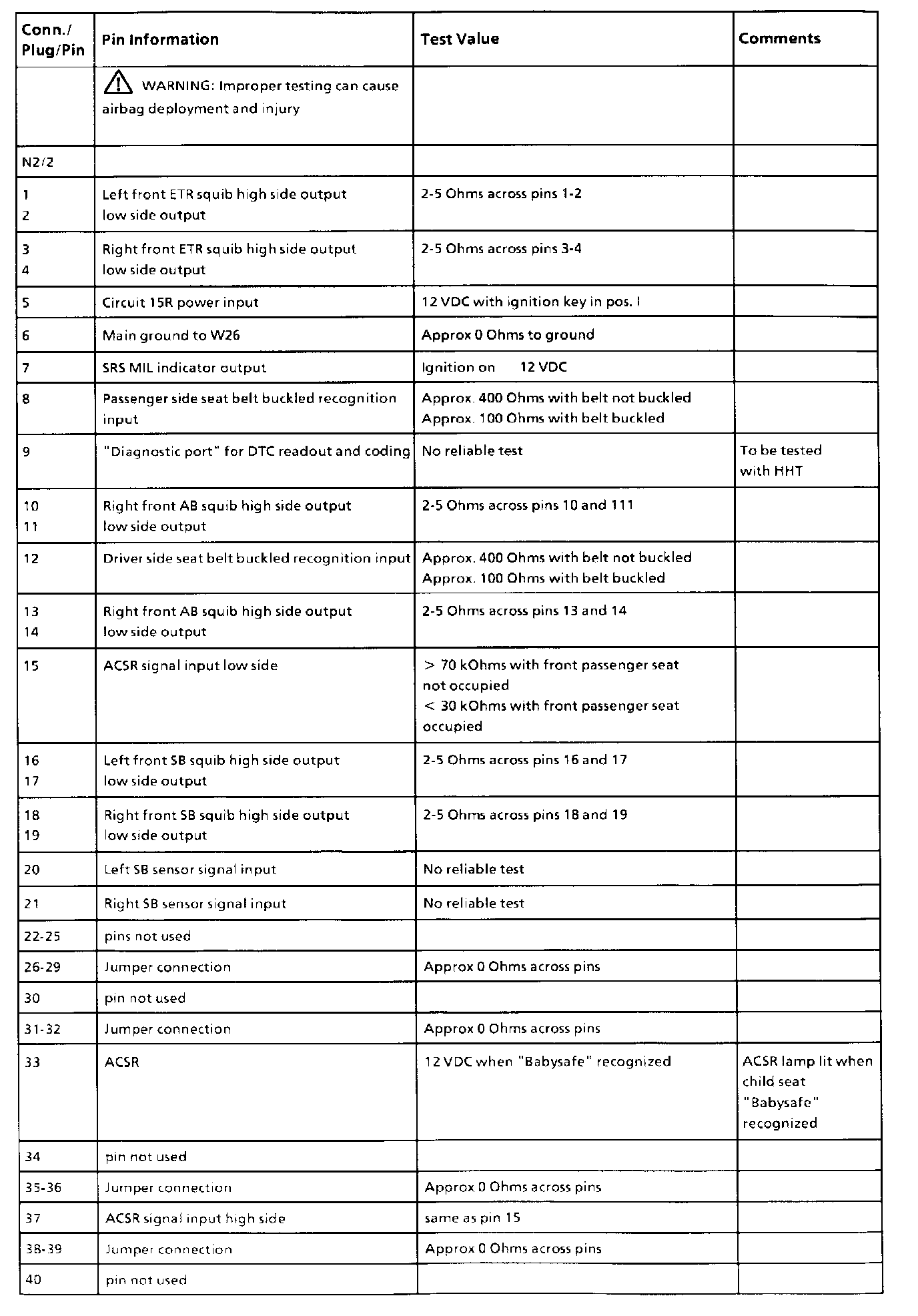

Pin Information, Part 1:

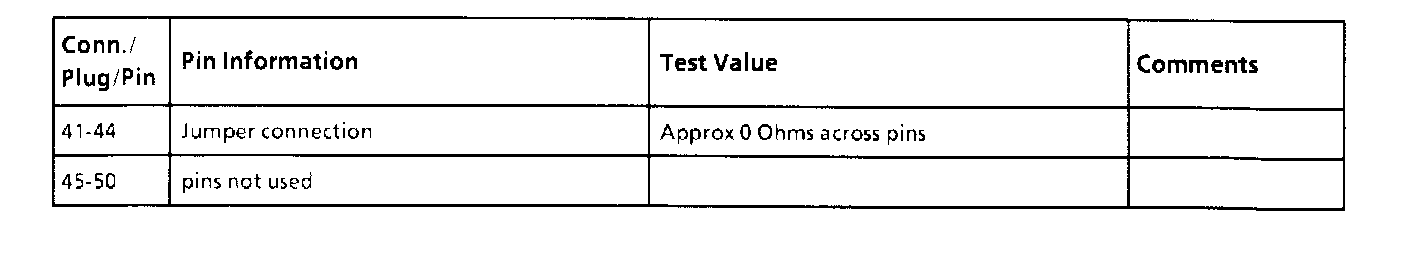

Pin Information, Part 2:
