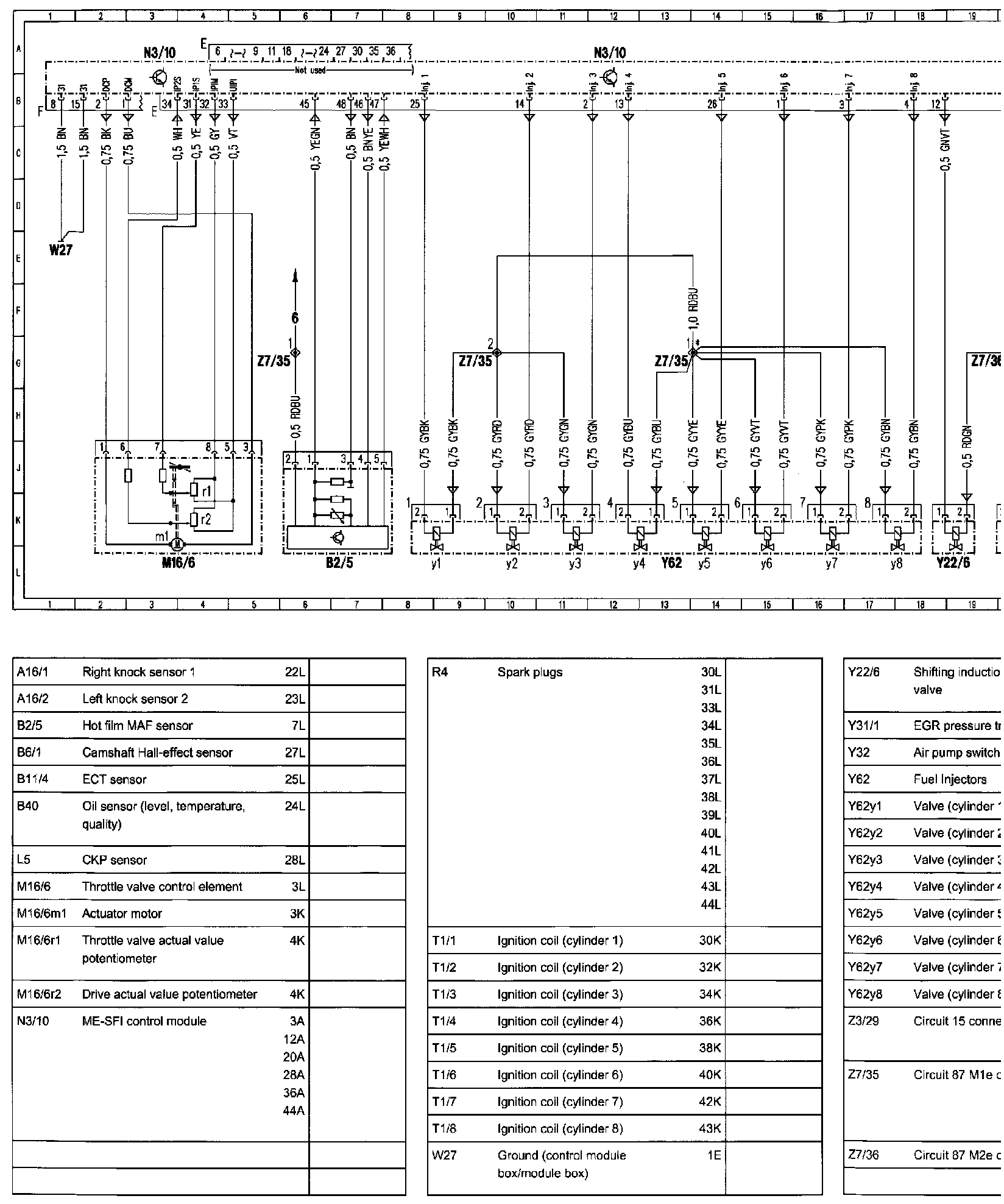

ME-SFI Fuel Injection/Ignition System PE07.61-U-2000YL (Engine Block)

ME-SFI Fuel Injection and Ignition System


Engine Block


i�!��!PE07.61-U-2000YL - ME-SFI Fuel Injection and Ignition System:
