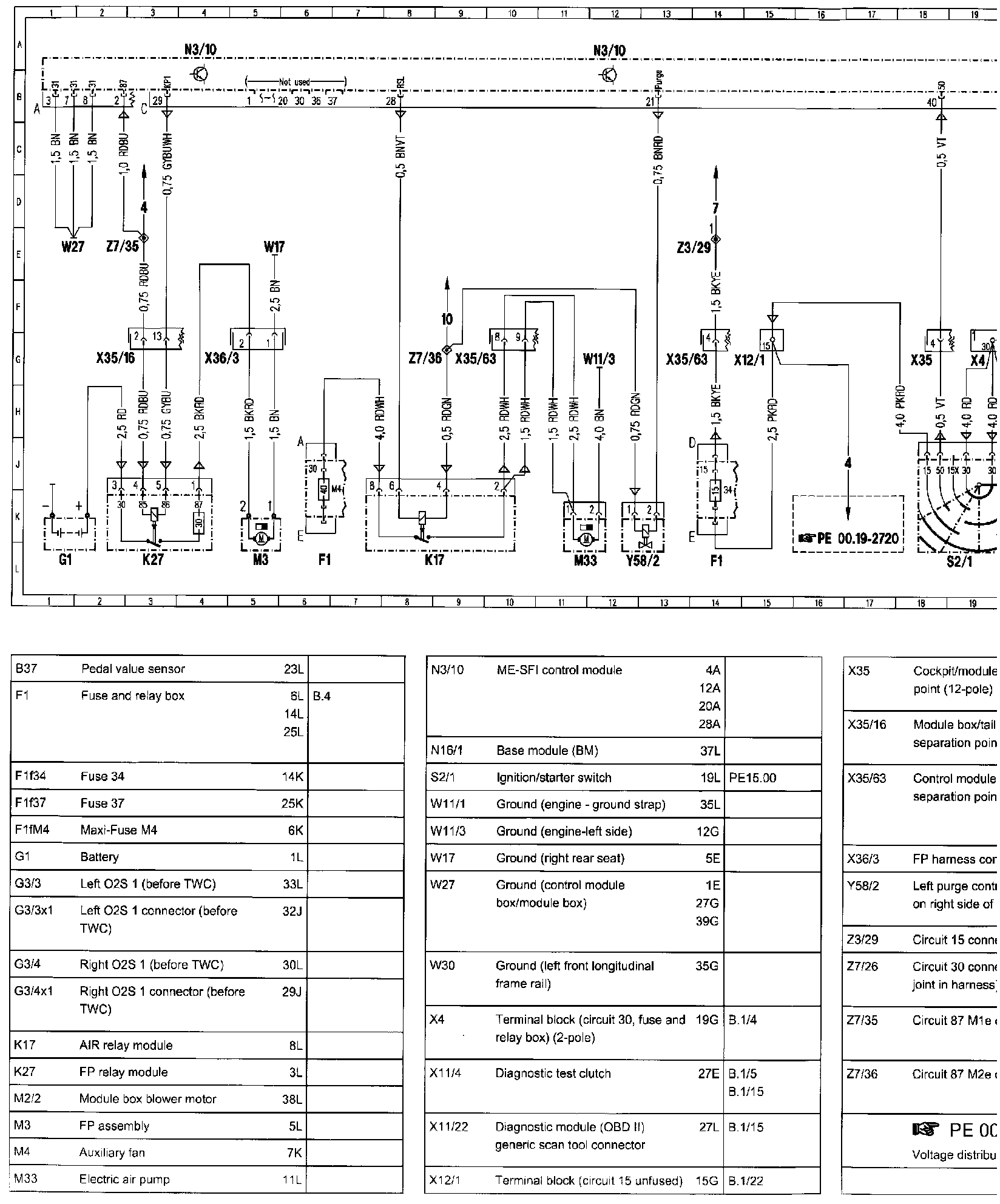

ME-SFI Fuel Injection/Ignition System PE07.61-U-2000YJ (Engine Compartment, Part 1)
ME-SFI Fuel Injection/Ignition System PE07.61-U-2000YJ (Engine Compartment, Part 1)
ME-SFI Fuel Injection and
Ignition System
Engine Compartment (Part 1)
n!e�!PE07.61-U-2000YJ:
