Central Power Supply
Central Power Supply
Base Module

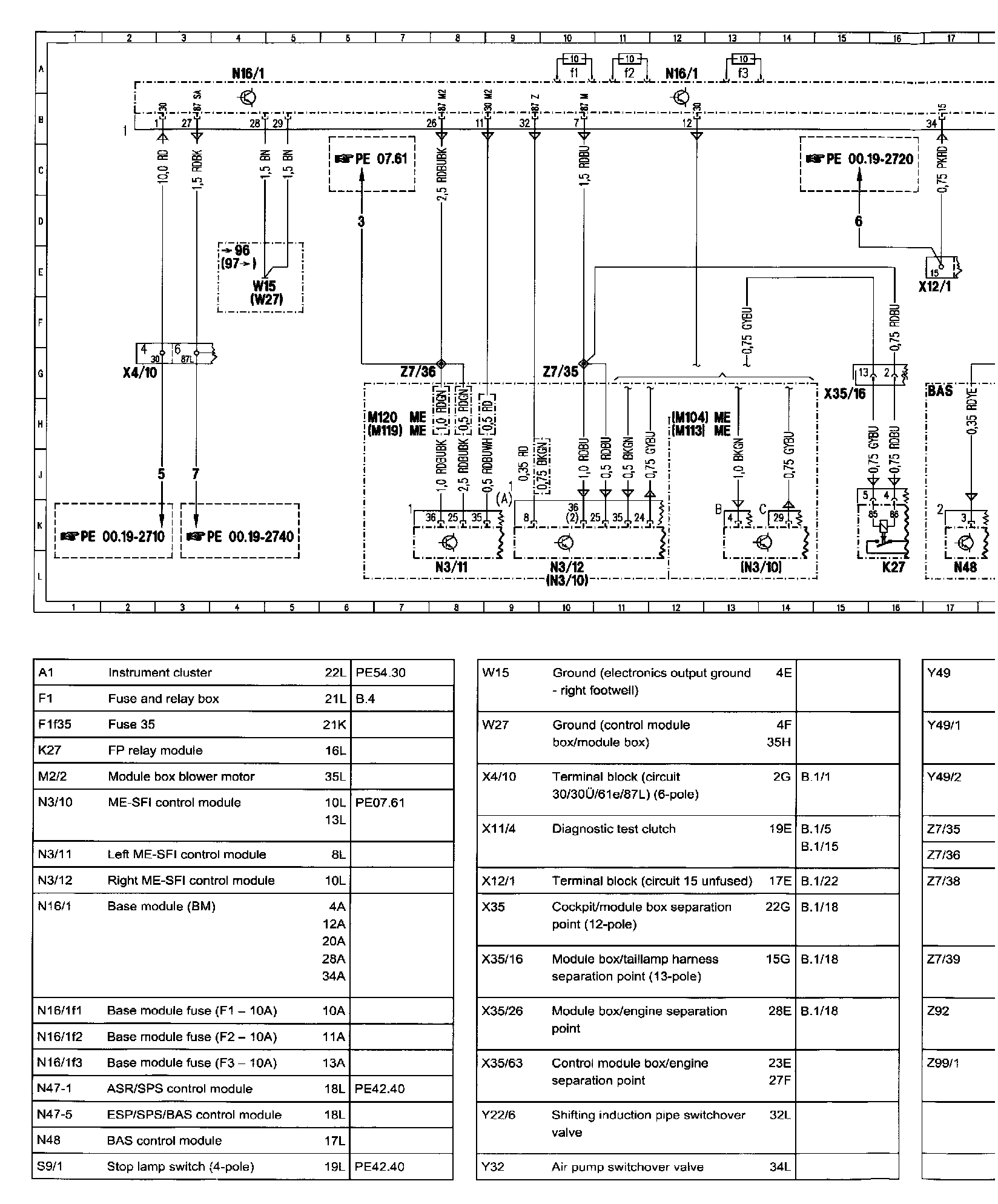

�Is��sPE54.21-U-2400YE:

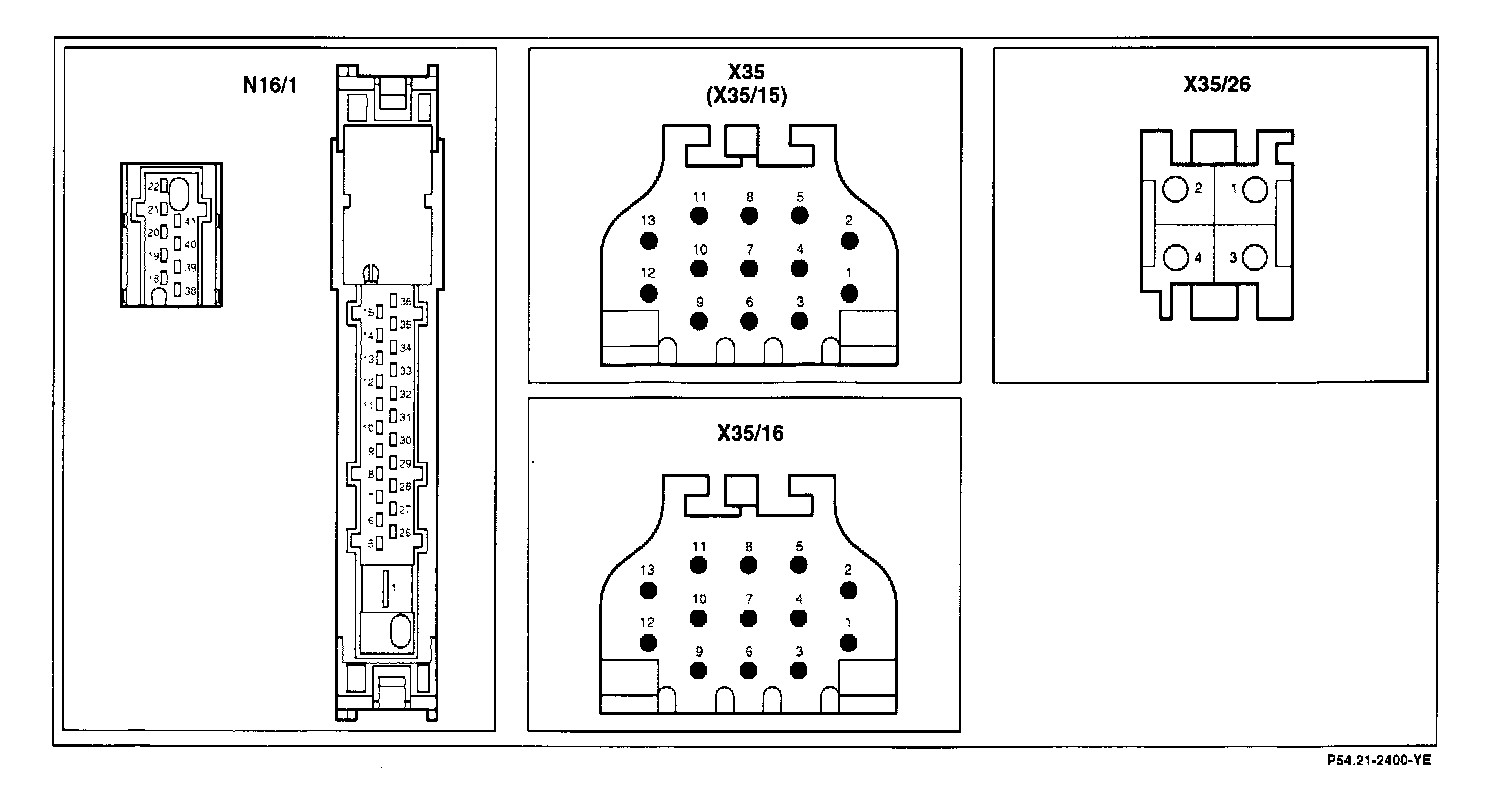

Connector Assignment:
Pin Information:
