Drive Authorization System (DAS) PE80.57-U-2000YA
Drive Authorization System (DAS) PE80.57-U-2000YA
Drive Authorization System (DAS)
.��=PE80.57-U-2000YA:

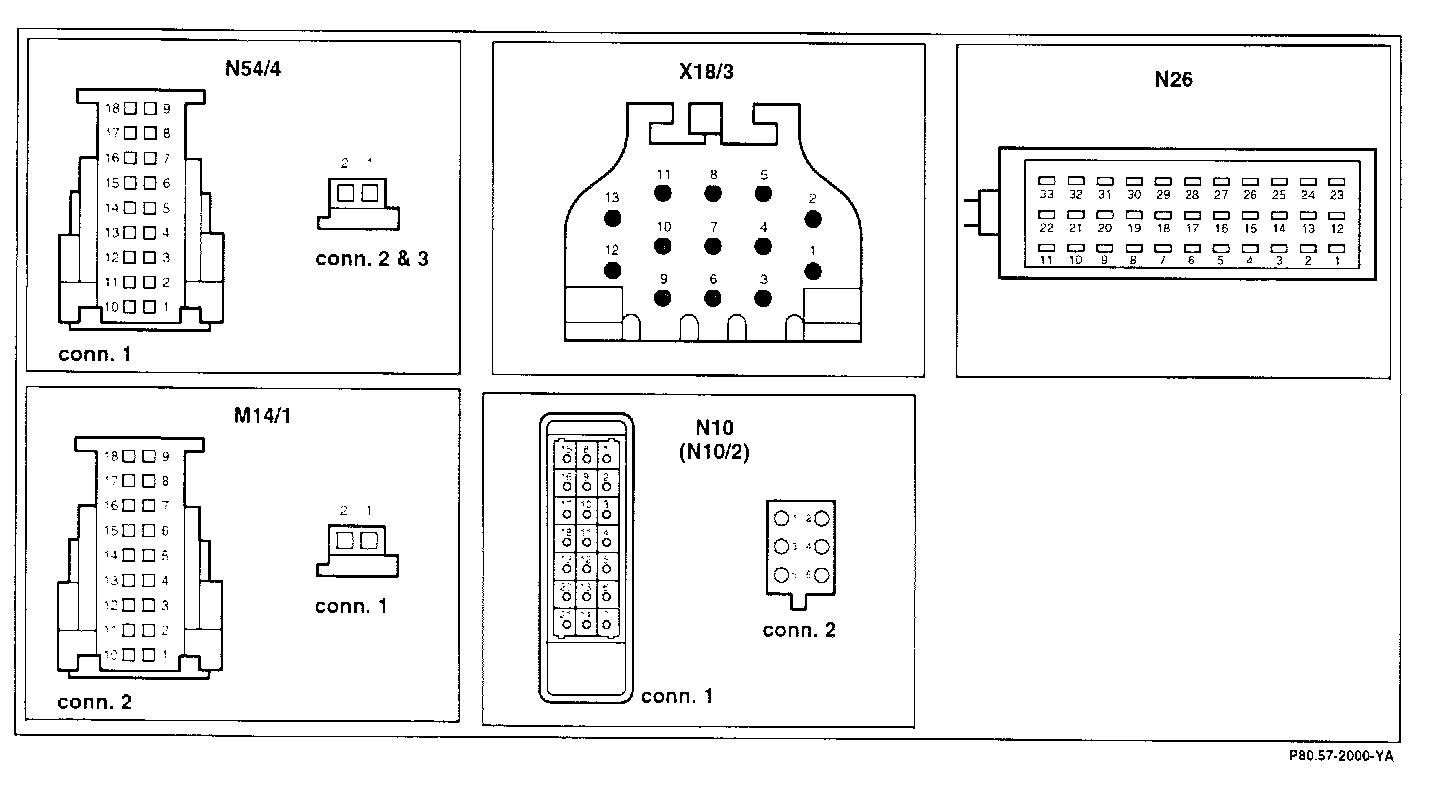

Connector Assignment:
Pin Information:
