Home >> Mercedes Benz >> 2001 >> SL 500 (129.068) V8-5.0L (113.961) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Hard Top >> Adjustments >> AR77.50-P-4400A Checking, Adjusting Gap Between Hard Top and Windshield Molding Strip

AR77.50-P-4400A Checking, Adjusting Gap Between Hard Top and Windshield Molding Strip



AR77.50-P-4400A Checking, Adjusting Gap Between Hard Top And Windshield Molding Strip

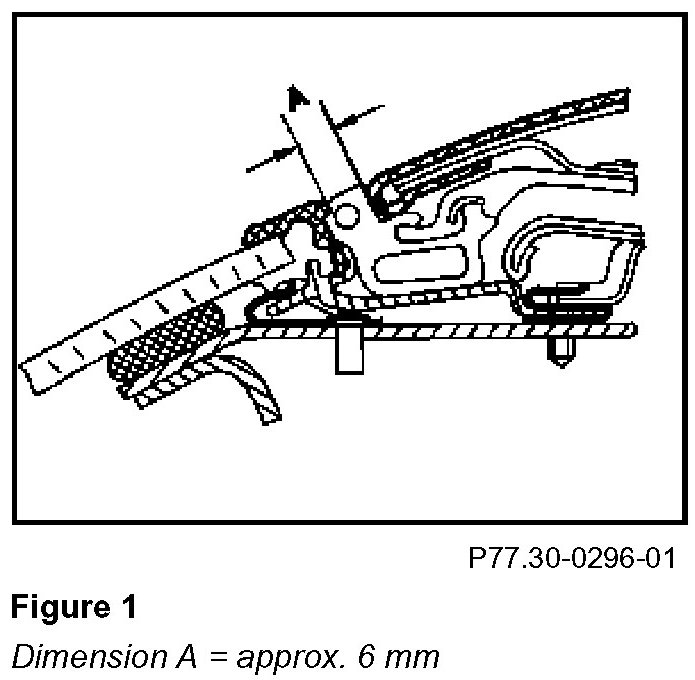

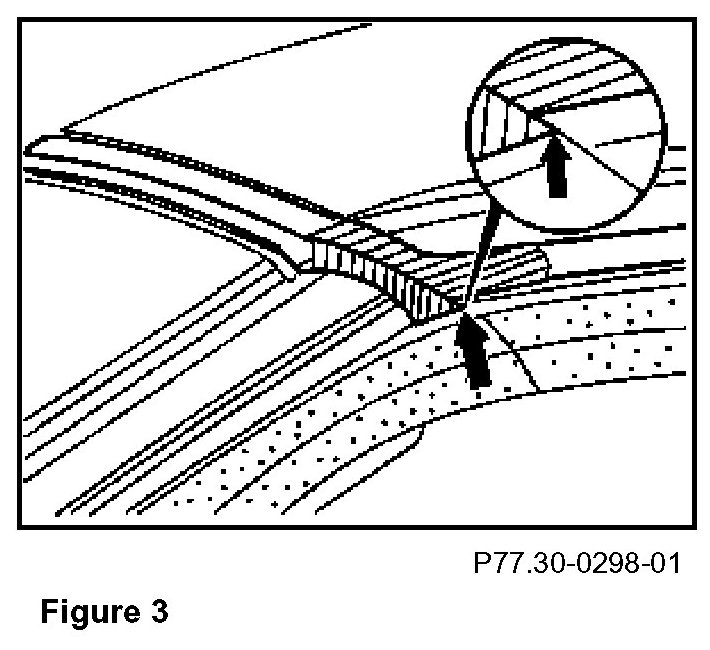

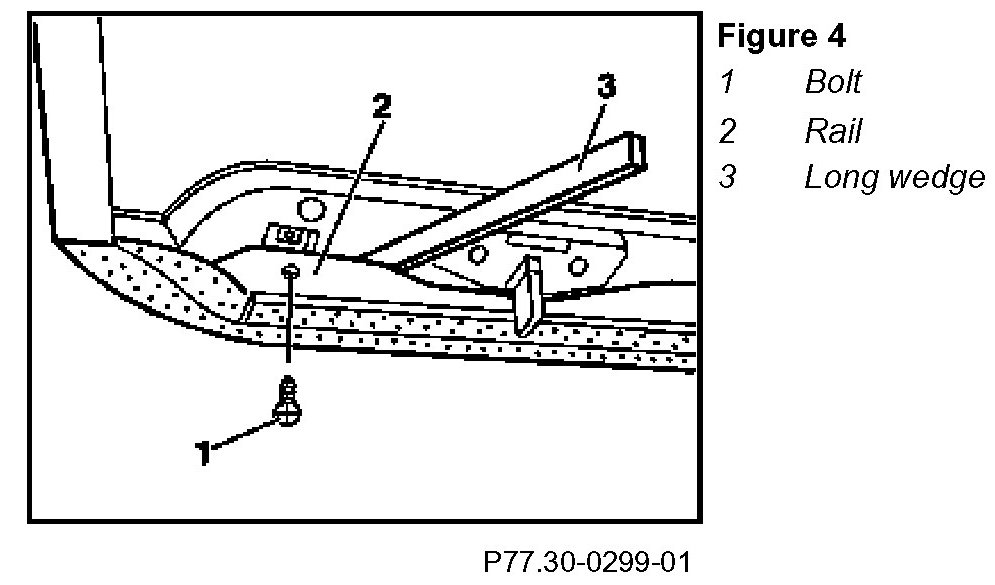

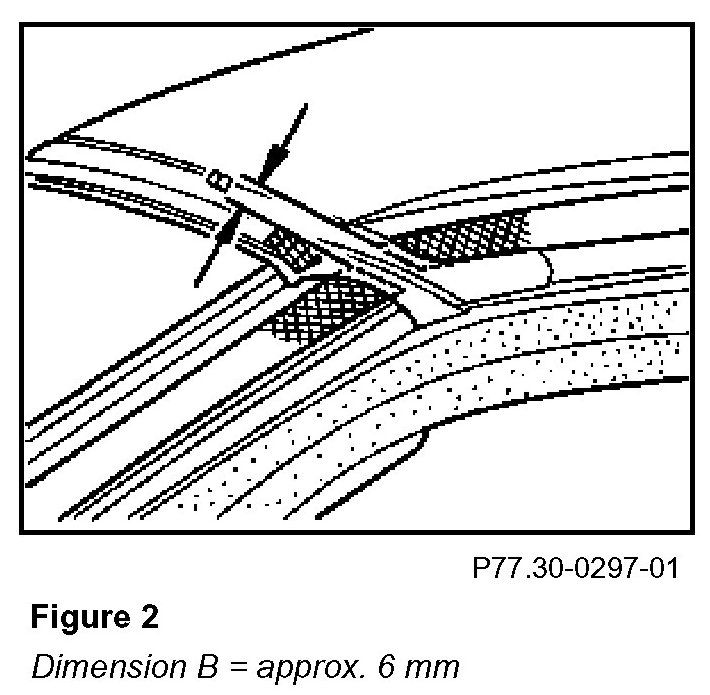

Component Identification:

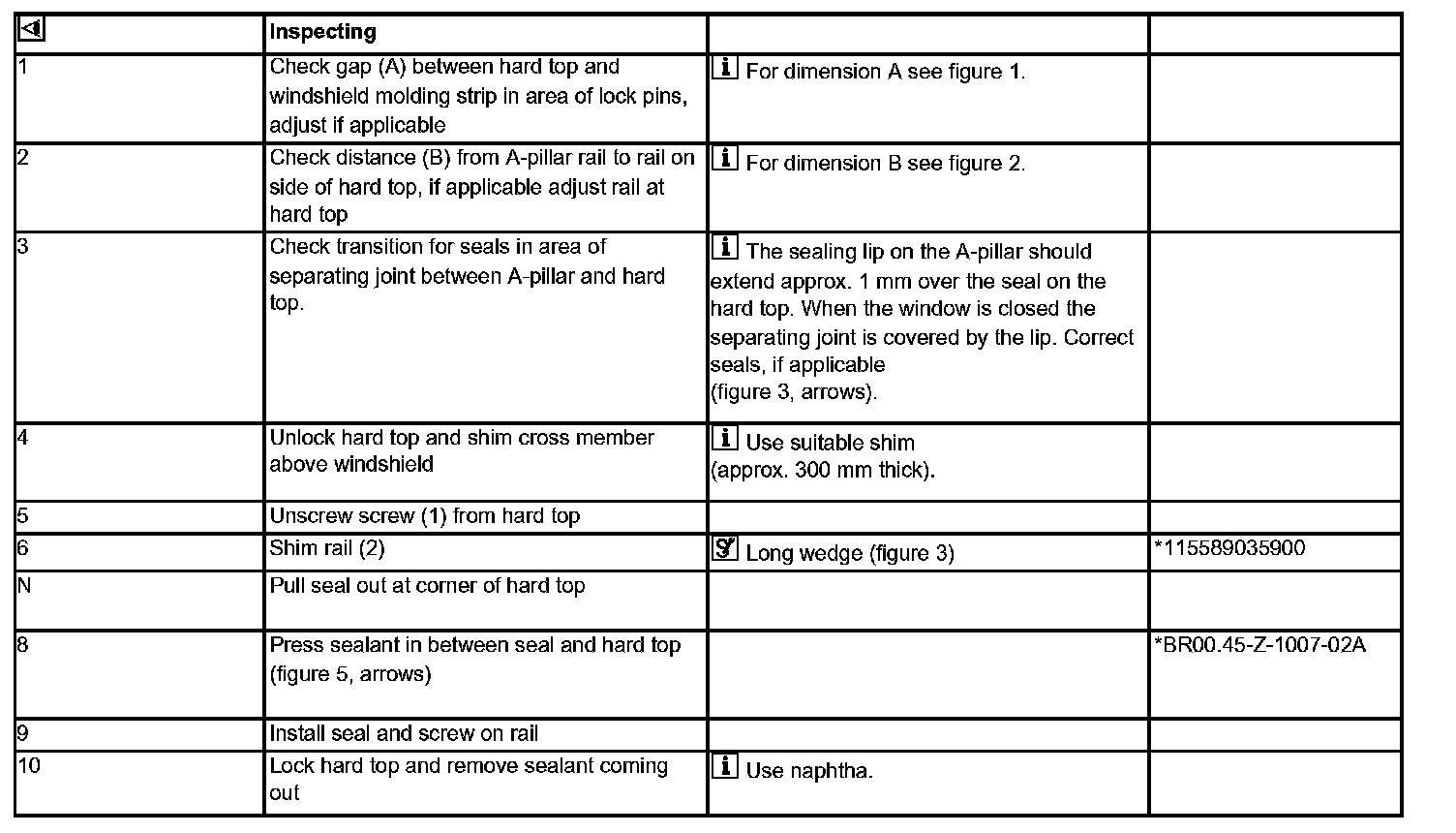

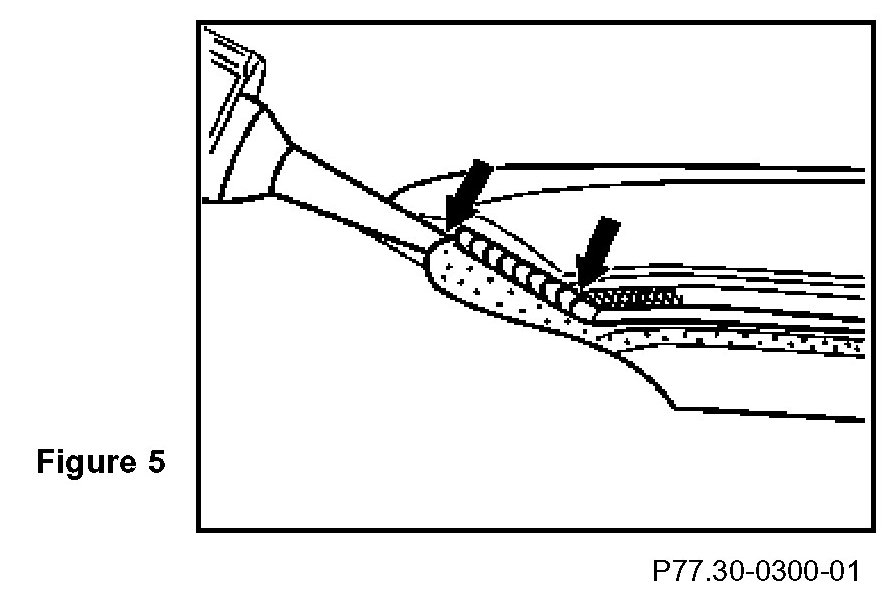

Steps 1 - 10:

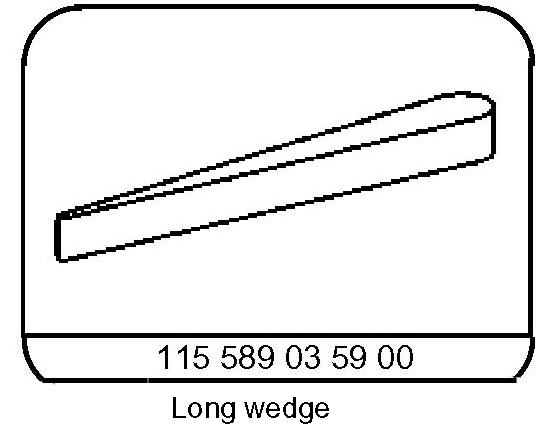

Special Tools:

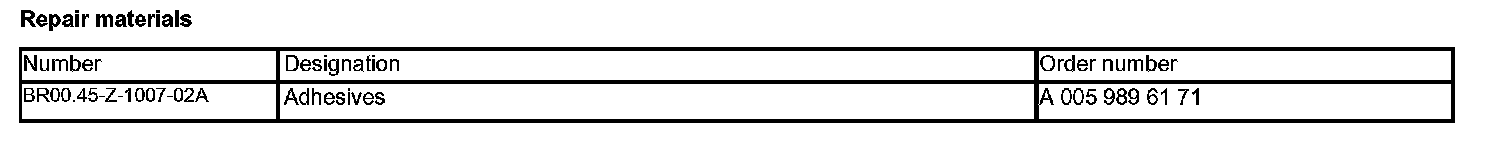

Repair Materials:
