Renewing Solenoid Valves

Renewing Solenoid Valves

Preceding work:
Remove coupe roof panel
Remove side panel in rear compartment.

Example
Renewing solenoid valve No.9 on valve block (Y55).






New solenoid valve make ready
Roll bar raise

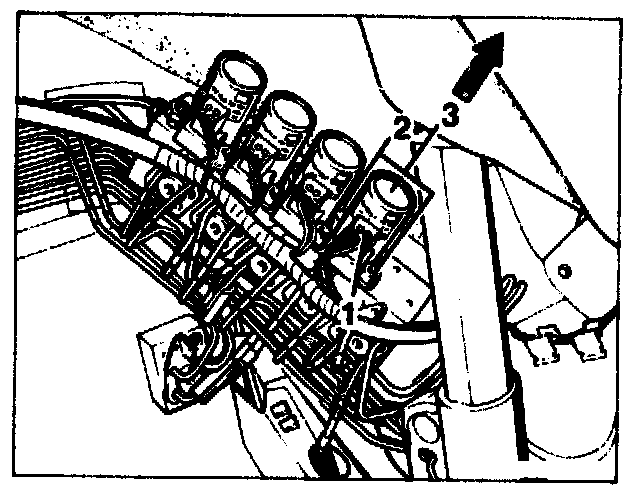

Connector coupling (1) disconnect
Screws (2) unscrew (tightening torque 7 + 1 Nm)
Solenoid valve (3) remove in direction of arrow

NOTE: Insert solenoid valve immediately in the valve block, otherwise installation would be hindered by escaping hydraulic oil.

Installation in the reverse sequence.
Function and sealing check perform.
