77-370 Remove/Install Hydraulic Cylinder For Top Compartment Cover

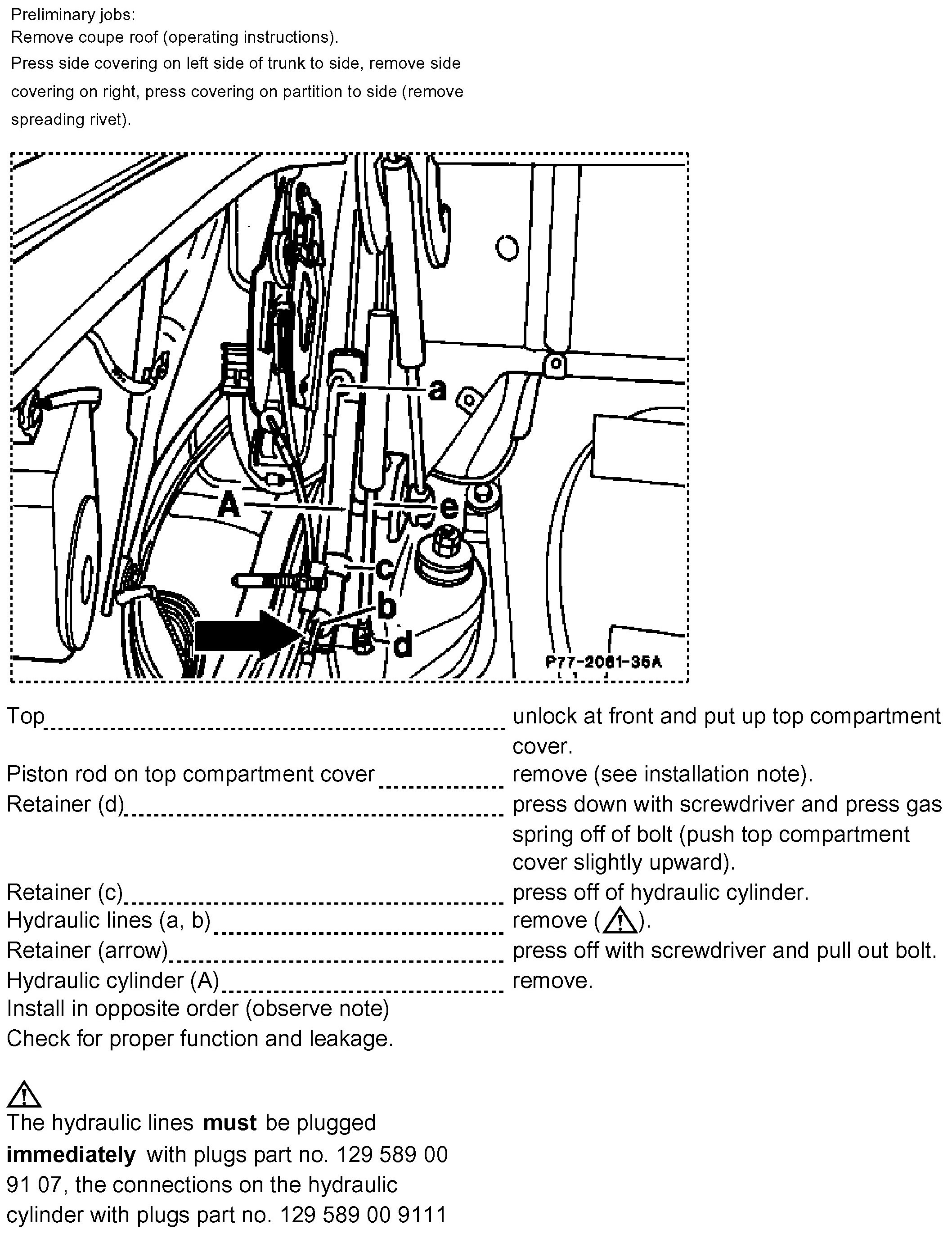

77-370 Removal And Installation Of Hydraulic Cylinder For Top Compartment Cover

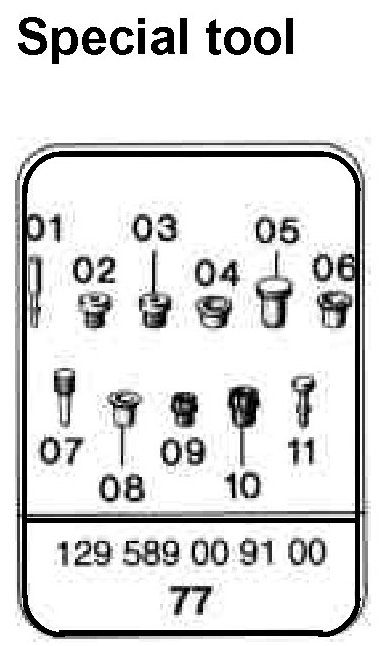

Special Tool:









Installation note
Install piston rod on top compartment cover only after installing gas spring at bottom.

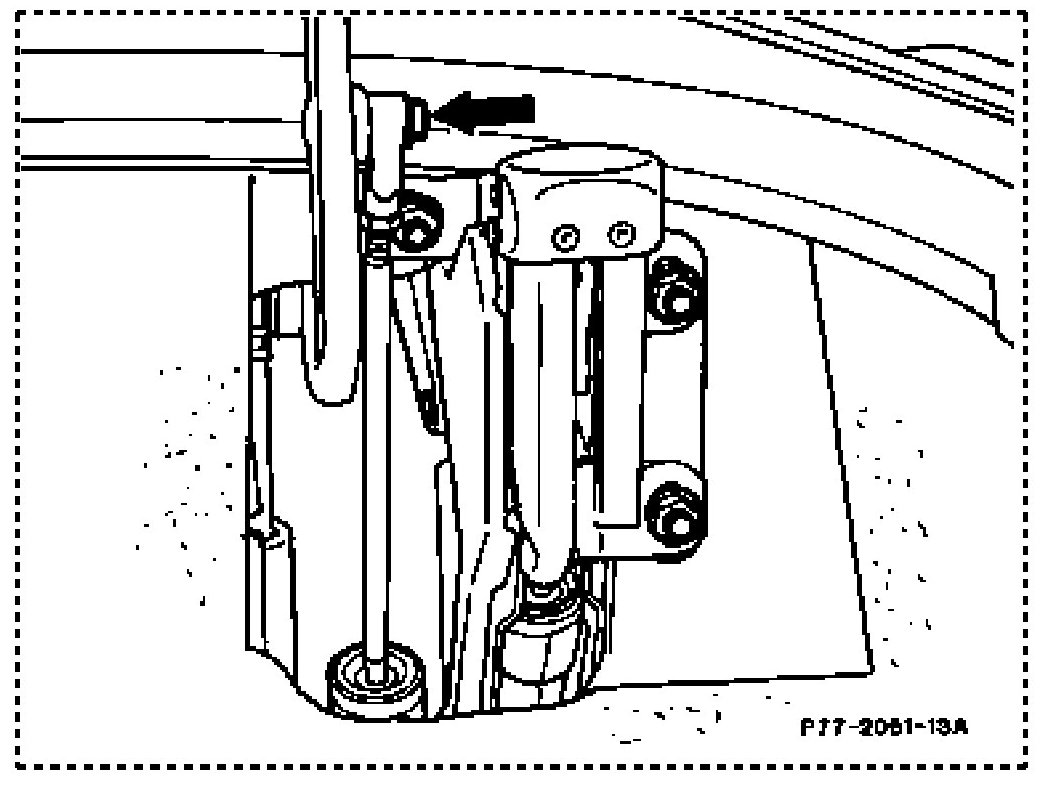

Piston rod on top compartment cover
