SL 500 (129.068) V8-5.0L (113.961)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Convertible Top
>>
Convertible Top Hydraulic Cylinder
>>
Service and Repair
>>
77-328 Remove/Install Hydraulic Cylinders For Rear Catches
77-328 Remove/Install Hydraulic Cylinders For Rear Catches

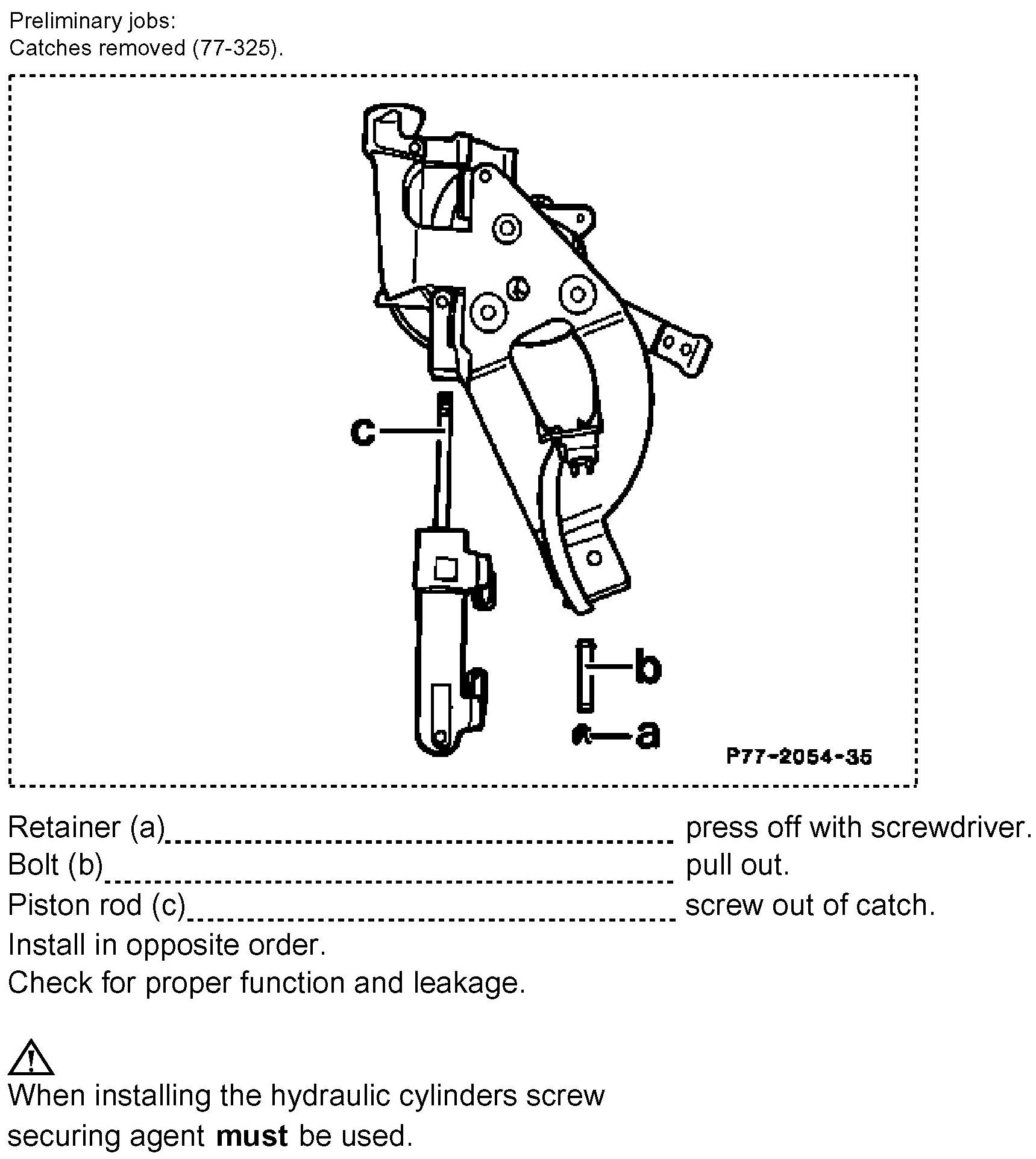

77-328 Removal And Installation Of Hydraulic Cylinders For Rear Catches
